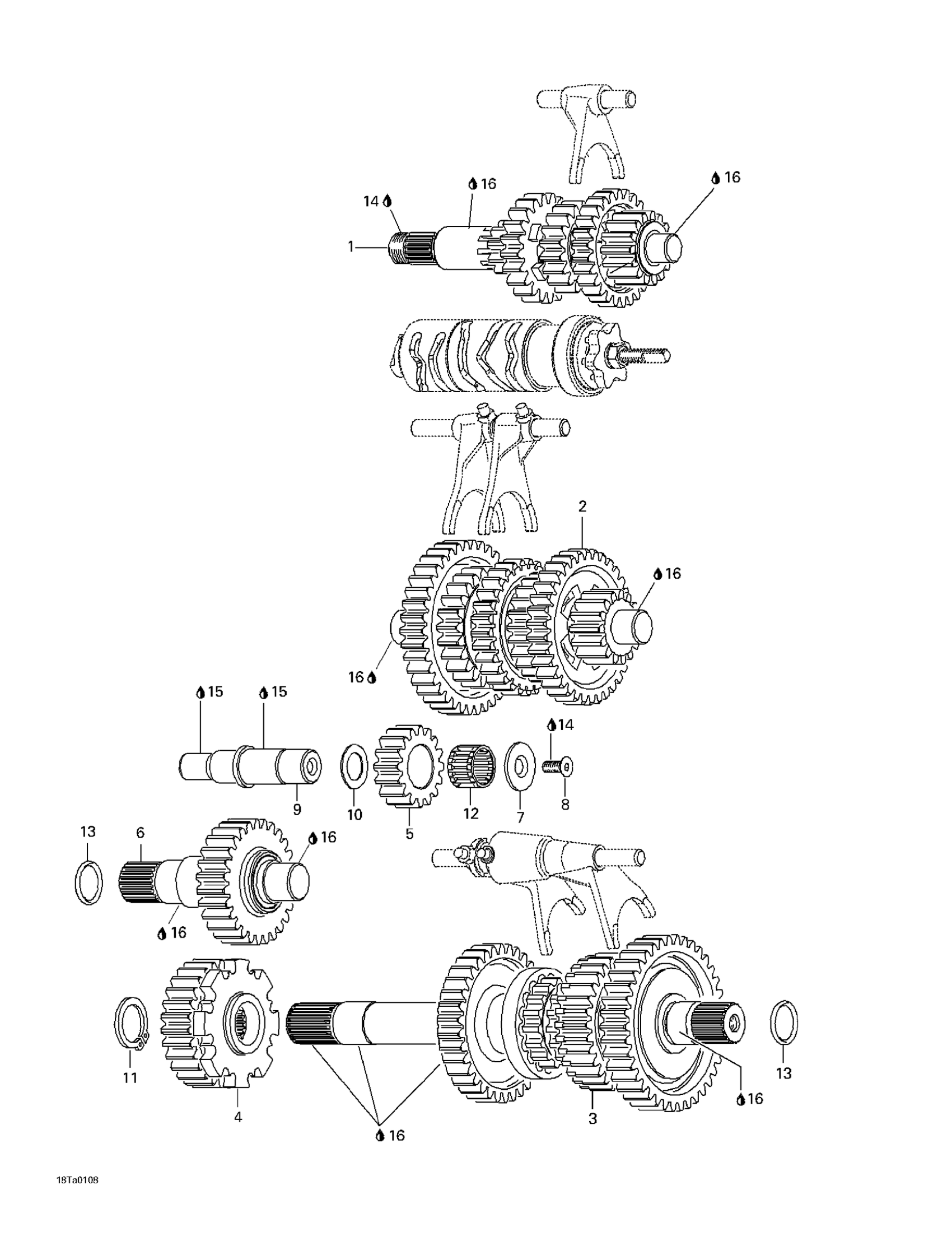

Can-Am Traxter XL, 7448/7489, 2001 Transmission Diagram

#

Description
Price

1

Countershaft

711220487

Unavailable

2

Main Shaft Ass'y

711220509

Unavailable

3

Rear Output Shaft

711220497

Unavailable

4

Output Gear (28 Teeth)

711634925

Unavailable

5

Sliding Gear

711634890

Unavailable

6

Front Output Shaft

711220522

Unavailable

7

Stop Washer

711244270

$6.89

8

Screw M6 X 20

420941436

$2.37

9

Not Available As Spare Part - Friction Washer

Unavailable

10

THRUST WASHER - Call your local BRP dealership

420227440

$5.74

11

CIRCLIP - Call your local BRP dealership

420945870

$4.35

12

Needle Cage

711632230

$16.89

13

O-Ring

420430373

$2.63

14

Loctite 243, 10 ml

293800060

$20.77

15

Molykote G-N, 50 g

420297433

$22.72

16

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
