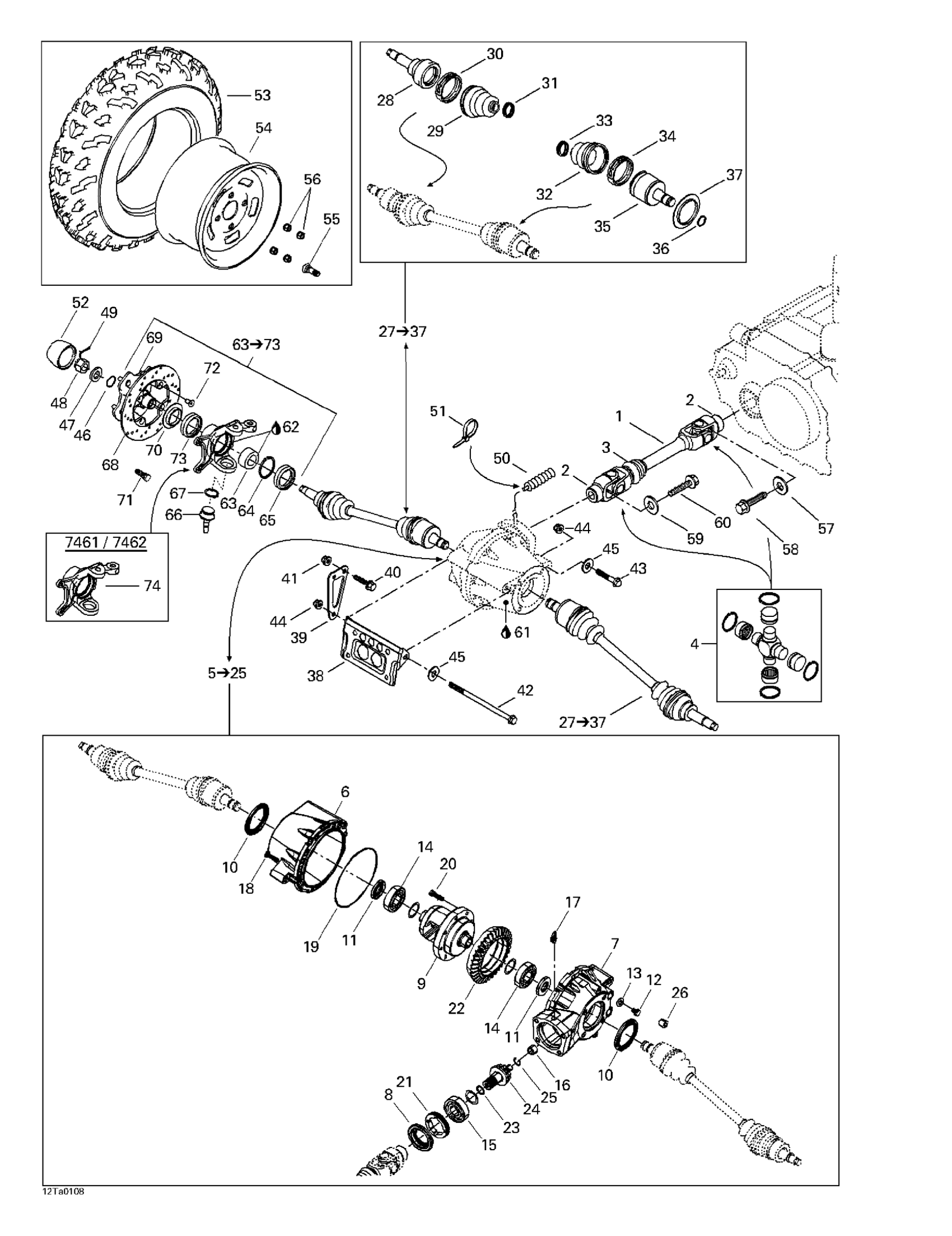

Can-Am Traxter XL, 7448/7489, 2001 Drive System, Front Diagram

#

Description
Price

1

Front Propeller Shaft Kit

703500001

Unavailable

2

Wear Ring | 4X4

705400036

$25.35

3

PROTECTOR - Call your local BRP dealership

705400051

Unavailable

4

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

5

Front Differential Ass'y | Includes 5 - 5.

705400003

Unavailable

6

Differential Cap

705400025

Unavailable

7

Differential Carrier

705400026

Unavailable

8

Oil Seal | 4X4

705401481

$18.43

9

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

10

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

11

Gasket | 4X4

705401618

$17.66

12

Drain Plug

705500093

Unavailable

Drain Plug

705500298

Unavailable

13

SEAL RING - Call your local BRP dealership

705500299

Unavailable

14

Ball Bearing | 4X4

705401606

$49.20

15

Ball Bearing

705500074

Unavailable

16

Needle Bearing

705500077

Unavailable

17

Vent Valve

705500124

Unavailable

18

SCREW - Call your local BRP dealership

705500088

$8.43

19

Seal

705500091

Unavailable

20

RING GEAR SCREW - Call your local BRP dealership

705500090

$8.43

21

Nut | 4X4

705401603

$36.89

22

Gear (36 Teeth)

705500087

Unavailable

23

O-Ring

705500073

Unavailable

24

GEAR (10 TEETH) - Call your local BRP dealership

705500076

$212.28

25

Retaining Ring

705500102

Unavailable

26

Filler/Level Plug | 7413/7414. 7415/7416. 7417/7418.

705500143

Unavailable

27

RH CV Joint (7431 @ 7434) | Includes 62 - 67.

703500021

Unavailable

LH CV Joint(7431 @ 7434)

703500022

Unavailable

RH CV Joint | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705400083

Unavailable

LH CV Joint | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705400084

Unavailable

28

CV JOINT (7431 _ 7434) - Call your local BRP dealership

705400037

Unavailable

CV JOINT - Call your local BRP dealership

705400093

$193.82

29

WHEEL BOOT KIT - Call your local BRP dealership

705400038

$39.97

30

Clamp (big)

705400063

Unavailable

31

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

32

DIFFERENTIAL BOOT KIT - Call your local BRP dealership

705400039

Unavailable

33

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

34

Clamp (Big)

705400065

Unavailable

35

RH Plunging Joint

705400040

Unavailable

LH Plunging Joint

705400041

Unavailable

36

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

37

Wear Ring

705400016

Unavailable

38

Bracket (Differential)

705400068

Unavailable

39

RH Diffential Front Bracket

705400069

Unavailable

40

Hex. Flange Screw M8 X 20

207682044

$0.92

41

Hex. Flange Elastic Nut M8

233281414

$1.14

42

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

43

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

44

Hex. Flange Nut M10

233101414

$4.10

45

Flat Washer

250200003

Unavailable

46

O-Ring

293300052

Unavailable

O-RING - Call your local BRP dealership

705500271

Unavailable

47

WASHER - Call your local BRP dealership

250200019

$2.02

Washer

211200049

Unavailable

48

Hex. Flange Castellated Nut M18

232291413

$2.82

49

Cotter Pin

250400036

$1.74

Cotter Pin

250400036

$1.74

50

Rubber Bellow | 4X4

705400552

$6.02

51

Tie Wrap 94 mm | 4X4

293750001

$0.83

52

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

53

Tire 205 X 80 R12

705402890

$133.82

54

Front Rim

705400010

Unavailable

55

Rim Valve With Cap

705400193

$6.69

56

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

57

Washer

211200041

$2.63

58

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

59

Flat Washer M10 | 4X4

250200014

$1.17

60

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

61

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

62

Synthetic Grease, 400 G

293550010

Unavailable

63

Knuckle Kit RH (7431 @ 7434) | Includes 63 - 73.

703500063

Unavailable

Knuckle Kit LH(7431 @ 7434)

703500064

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

63

ANGLE BEARING (7431 _ 7434) - Call your local BRP dealership

705400006

Unavailable

Ball Bearing

293350150

$52.99

64

CIRCLIP (7431 _ 7434) - Call your local BRP dealership

293370003

Unavailable

Circlip

293370019

$4.98

65

Oil Seal | 4X4

293250090

$23.05

66

Ball Joint

706200653

$41.51

67

Circlip 32 mm

293370009

$1.49

68

Brake Disk (Front) (7431 @ 7434)

705600003

Unavailable

Brake Disk 205 mm | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705600171

Unavailable

69

Front Wheel Hub(7431 @ 7434)

705400011

Unavailable

Front Wheel Hub | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705400090

$188.43

70

WEAR RING - Call your local BRP dealership

705500100

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

71

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

72

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

73

Oil Seal (7431 @ 7434)

293250098

Unavailable

OIL SEAL - Call your local BRP dealership

705500099

$13.82

74

RH Knuckle

709400095

Unavailable

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable
