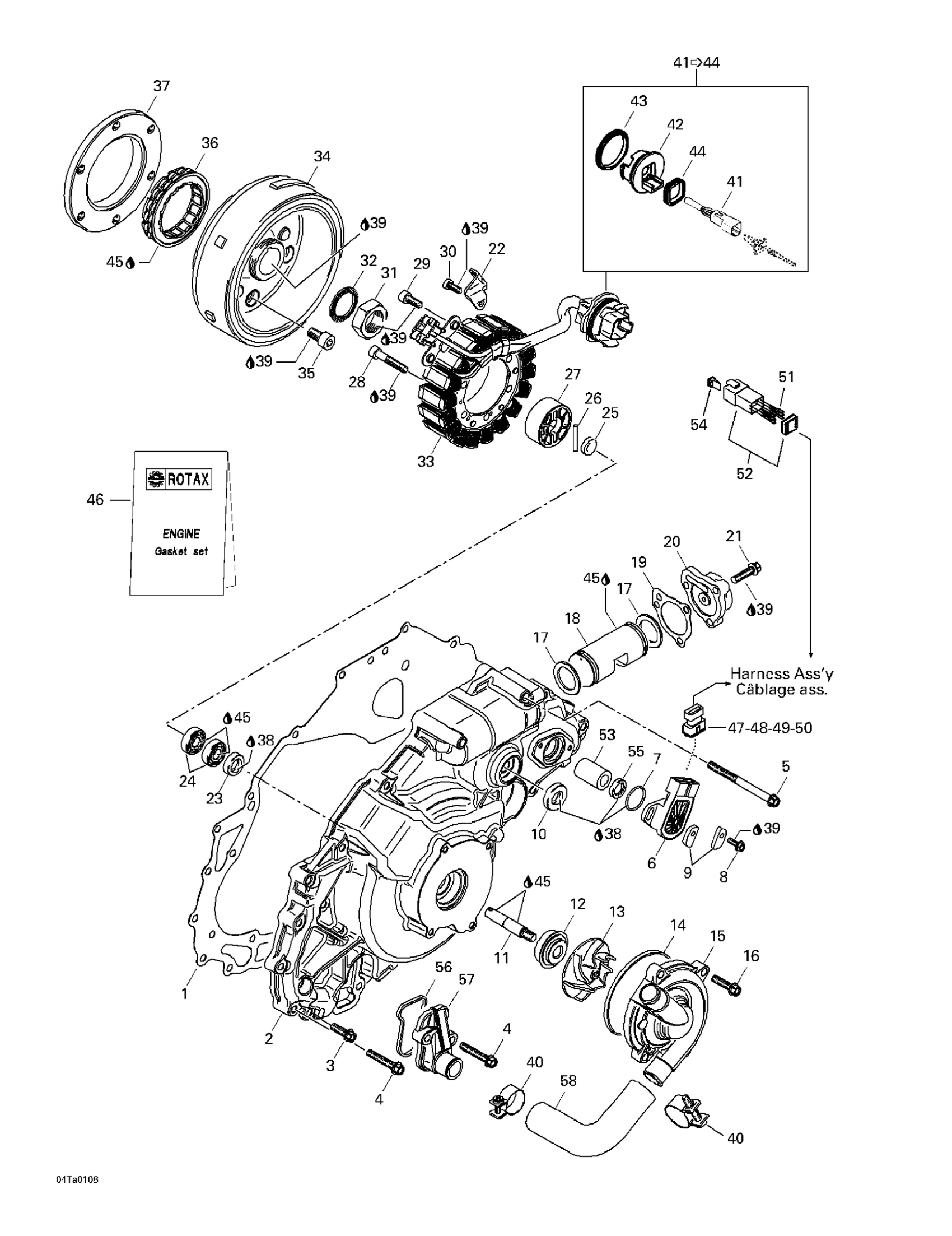

Can-Am Traxter XL, 7448/7489, 2001 Ignition And Water Pump Diagram

#

Description
Price

1

Ignition Cover Gasket

711650603

Unavailable

2

Ignition Cover

711211821

$391.51

3

Hex. Flange Screw M6 x 20

711241861

$7.66

4

Hex. Flange Screw M6 x 35

711941126

$4.58

5

Hex. Flange Screw M6 x 70

711940576

Unavailable

6

POTENTIOMETER, TRANSMISSION - Call your local BRP dealership | Item 7 Not included

420265611

Unavailable

7

O Ring

711931390

$8.94

8

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

$1.29

9

Reinforcement

711224630

$4.58

10

OIL SEAL - Call your local BRP dealership

420950400

$13.86

11

Water Pump Shaft

711220560

Unavailable

12

Rotary Seal

420650371

$35.72

13

Water Impeller

711222540

Unavailable

14

Rubber Ring

711650570

Unavailable

15

Water Pump Housing

711222550

$44.58

16

Hex. Screw M6 x 25

711241911

$4.58

17

K Grooved Ring

711650660

Unavailable

18

Hydraulic Piston

711257140

Unavailable

19

Hydraulic Cover Gasket

711650640

$7.66

20

Hydraulic Cover

711211950

$35.35

21

Hex. Screw M6 x 25

711241911

$4.58

22

Cable Clamp

711251180

Unavailable

23

Oil Seal

711250080

Unavailable

24

Ball Bearing

711632170

Unavailable

25

Distance Sleeve

711247030

$9.97

26

Needle Pin

711932885

$7.66

27

Pawl

711659190

Unavailable

28

Hex. Flange Screw M6 x 35

711941126

$4.58

29

Hex. Flange Screw M6 x 16

711241751

Unavailable

30

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

31

Nut M22

711242875

Unavailable

32

Washer 22 mm

711245875

$10.74

33

Magneto Ass'y | Includes 38 - 42.

711296107

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership

205081644

Unavailable

36

Sprag Clutch

420659117

Unavailable

37

Clutch Sprag Housing

420659129

$138.43

38

Dow Corning 111, 150 g

413707000

$57.82

39

Loctite 243, 10 ml

293800060

$20.77

40

Gear Clamp

711251222

Unavailable

41

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

41

Male Terminal Housing, 6 Circuits

710001539

$15.57

42

Adaptor

270000138

Unavailable

43

Gasket

293300033

Unavailable

44

Gasket

293200055`

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Gasket Set Engine

711296372

Unavailable

47

Female Terminal

710000051

Unavailable

48

WIRE SEAL - Call your local BRP dealership

710000050

$7.66

49

Cap

710000049

Unavailable

50

Female Terminal Housing, 4 Circ.

710000032

Unavailable

51

Female Terminal

278000632

$1.69

52

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

53

Spacer

711847485

Unavailable

54

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

55

Oil Seal

711230870

Unavailable

56

Sealing Ring

711650940

Unavailable

57

Inlet Fitting

711222620

$29.20

58

Profile Tube

711222630

Unavailable
