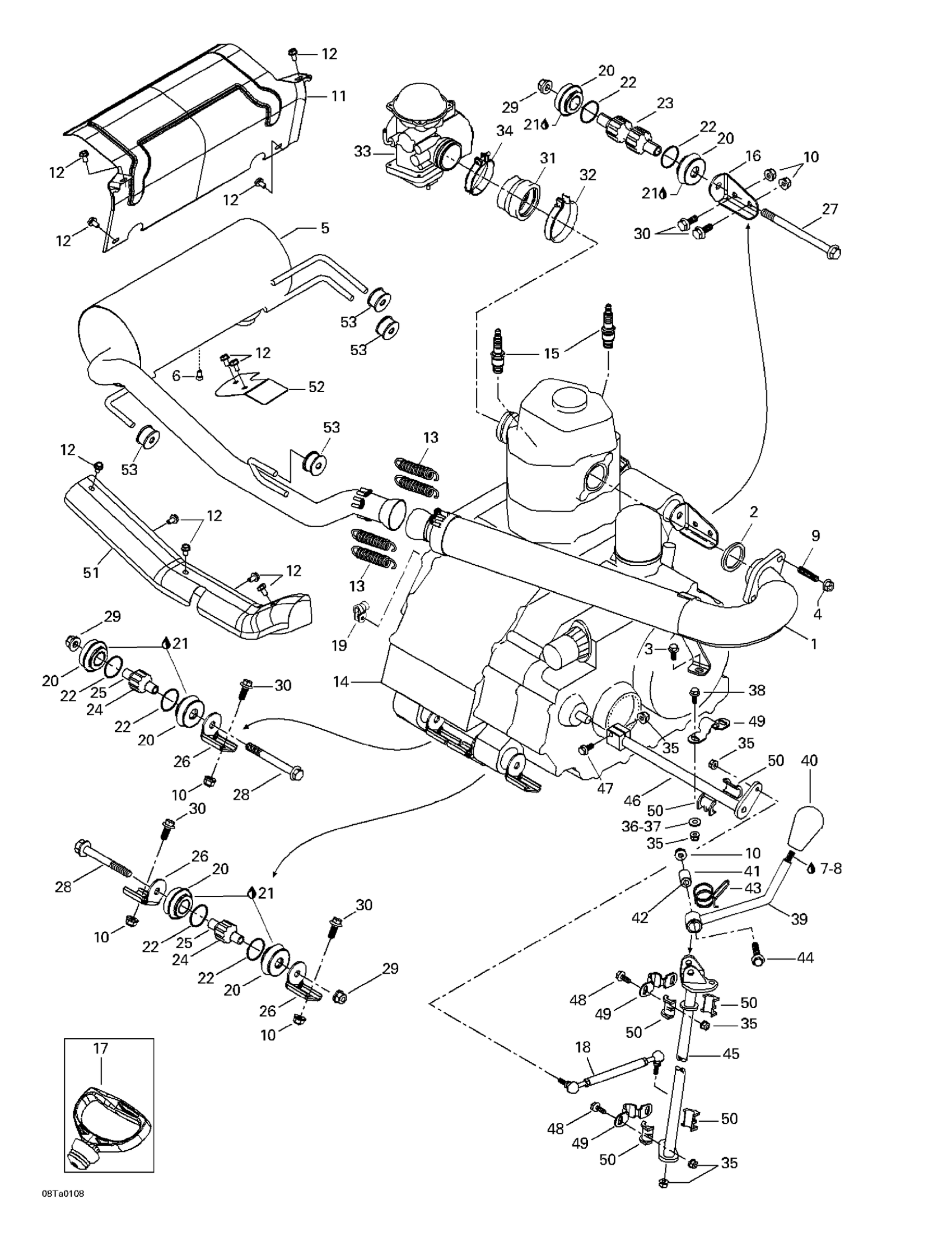

Can-Am Traxter XL, 7448/7489, 2001 Exhaust System Diagram

#

Description
Price

1

Tuned Pipe

707600062

Unavailable

2

GASKET - Call your local BRP dealership

707600003

$11.51

3

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

4

Hex. Flange Nut M8

233081416

$1.63

5

Muffler | Includes 5 - 6.

707600093

Unavailable

6

Drain Plug

250500003

Unavailable

7

Was 293800041 Loctite Primer 7649

219704458

$41.99

8

Loctite 243, 10 ml

293800060

$20.77

9

Stud M8 x 23

711940366

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Heat Shield

707600094

Unavailable

12

Hex. Flange Screw M6 X 10

210261040

$1.25

13

Spring

415107100

$6.20

14

Rotax 4 Strokes Engine «511» | Includes 1 to 7

707000041

Unavailable

15

Spark Plug, NGK/DR8EA

707000008

$4.03

16

Front Engine Bracket, Black

707000082

Unavailable

17

Starting Grip

711852515

Unavailable

18

Tie Rod Ass'y

707000068

$33.82

19

Open Clamp

705600040

$12.91

Hose Retainer 13 mm

705600232

$11.06

20

Anti-Vibration Mount

707000002

Unavailable

21

Synthetic Grease, 400 G

293550010

Unavailable

22

O-Ring

293300050

Unavailable

23

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

24

Support Bushing | Includes 10 to 11

707000030

Unavailable

25

RH LOWER BUSHING - Call your local BRP dealership

707000004

$7.89

26

Engine Bracket

705200197

Unavailable

27

Hex. Flange Screw M10 X 140

230604044

$5.19

28

HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership

207609544

$2.42

29

Hex. Flange Elastic Nut M10

233201414

$1.26

30

Hex. Flange Screw M8 X 20

207682044

$0.92

31

CARBURETOR ADAPTOR - Call your local BRP dealership

707000037

Unavailable

32

Clamp

512059062

Unavailable

33

Carburetor BSR 33-27

707200149

Unavailable

34

Gear Clamp Gemi

293650094

Unavailable

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Shim 1.0 mm

707000080

Unavailable

37

Shim 2.0 mm

707000081

Unavailable

38

Hex. Flange Screw M6 X 20

207662044

$1.66

39

LEVER ASS'Y - Call your local BRP dealership

707000010

$25.35

40

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

41

Adjuster Bushing

705500193

Unavailable

42

BUSHING - Call your local BRP dealership

705500150

$11.51

43

LEVER SPRING - Call your local BRP dealership

705500024

$11.51

44

Hex. Flange Screw M8 X 50

207685044

$1.39

45

Upper Tube

705500134

Unavailable

46

Lower Tube

705500135

Unavailable

47

Hex. Flange Screw M6 X 35

207663544

$0.74

48

Hex. Flange Screw M6 X 16

207661644

$0.61

49

RETAINER CLAMP - Call your local BRP dealership

705500041

$5.35

50

Half Ring

705500033

$4.92

51

Heat Shield

707600100

Unavailable

52

Heat Shield

707600148

Unavailable

53

Anti-Vibration Rubber

707600702

$8.34
