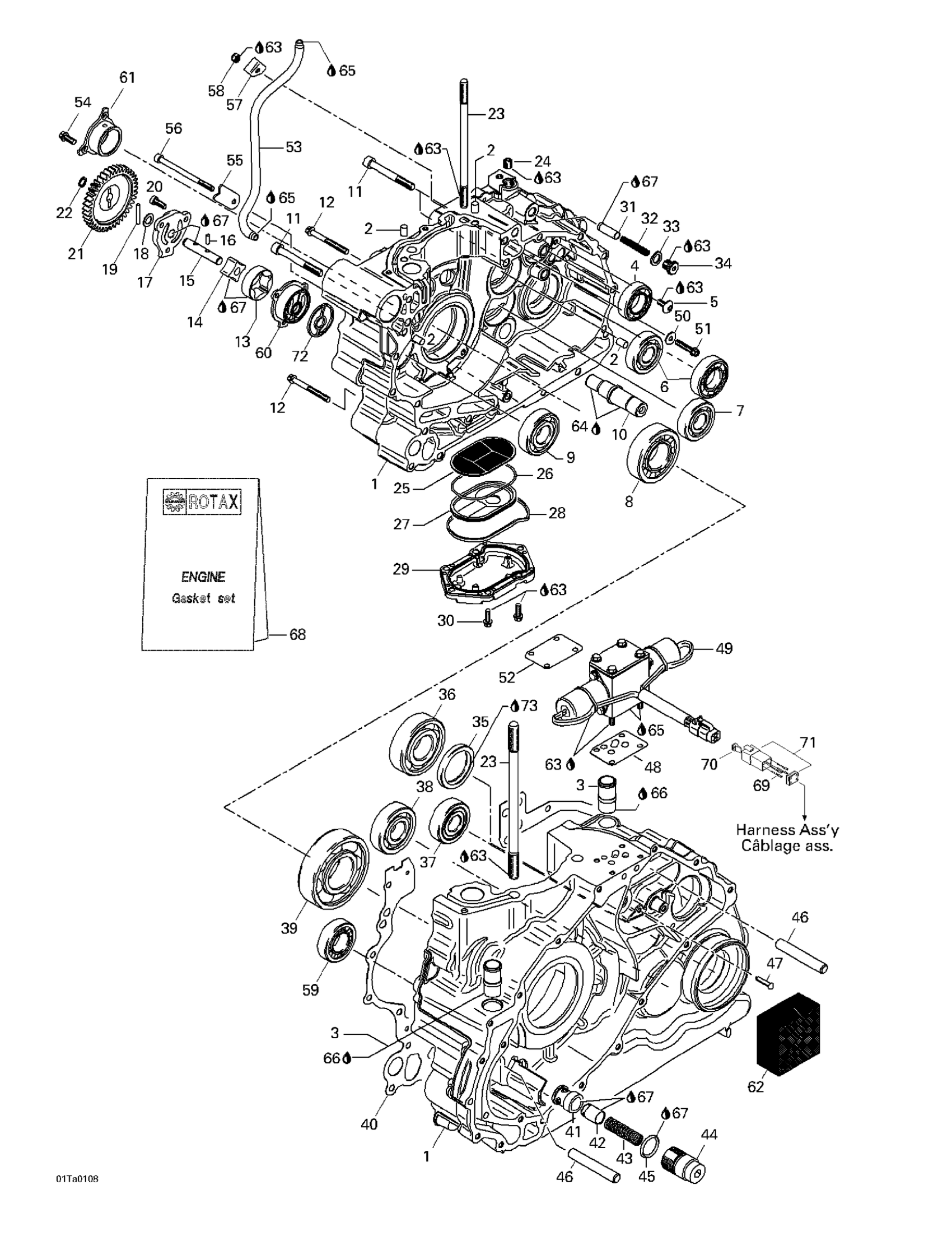

Can-Am Traxter XL, 7448/7489, 2001 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y

711295881

Unavailable

2

Center Pin 8 X 12

420632010

$3.07

3

Tube

711224260

$10.26

4

Bearing_Ball - Call your local BRP dealership

420932650

Unavailable

5

Flat Head Screw M6 x 16

711241531

$10.74

6

Ball Bearing 6205

420232764

$24.58

7

Ball Bearing 6304E

290932095

Unavailable

8

Roller Bearing

711232490

$78.43

9

Ball Bearing

711632200

Unavailable

10

Intermediate Gear Shaft

711220570

$20.57

11

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

420841991

$3.45

12

Hex. Flange Screw M6 x 65

711640351

Unavailable

13

Oil Pump Rotor Ass'y | Includes 13 - 4.

711956275

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Oil Pump Shaft

711220592

Unavailable

16

Needle Pin

420232731

$1.56

17

Oil Pump Cover

711211852

$27.69

18

Thrust Washer

420827590

$3.86

19

NEEDLE PIN - Call your local BRP dealership

420232971

$3.92

20

SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership

420240404

$1.83

21

Oil Pump Gear (40 Teeth)

711635030

Unavailable

22

Snap Ring

420245330

$1.43

23

Stud M10 x 190

711241670

$13.05

24

Plug Screw

711840651

$5.29

25

Oil Sieve

711256572

$13.82

26

O-Ring

711931385

$4.58

27

Oil Collector

711256652

$16.89

28

RUBBER RING - Call your local BRP dealership

711650950

Unavailable

29

Oil Sieve Cover

711211941

Unavailable

30

Hex. Flange Screw M6 x 20

711241861

$7.66

31

Piston

711256590

$9.97

32

Compression Spring

711238020

$4.58

33

Aluminum Sealing Ring

420250016

$4.41

34

Plug Screw M12 x 1,5

420241701

$11.09

35

Oil Seal

711650700

Unavailable

36

Ball Bearing

420932822

$29.20

37

Ball Bearing

420932816

$40.74

38

Ball Bearing 6304E

290932095

Unavailable

39

BALL BEARING - Call your local BRP dealership

420432120

Unavailable

40

Crankcase Gasket

711650422

Unavailable

41

Seat Valve Sleeve

711256602

$17.66

42

Piston Valve

420256638

Unavailable

43

Compression Spring | 7413/7414. 7415/7416. 7417/7418.

711938785

$10.74

44

Plug Screw M24

711640790

Unavailable

45

O-Ring

420250050

$9.29

46

Needle Pin

420229475

$12.29

47

Groove Pin M4 x 20

711229170

Unavailable

48

SOLENOID VALVE GASKET - Call your local BRP dealership

420650630

$9.48

49

Soleno‹d Valve

711256540

Unavailable

50

Washer

420627400

$4.60

51

Hex. Flange Screw M6 x 30

711241941

$3.82

52

Gasket

420650636

$10.98

53

Oil Pipe

711224622

Unavailable

54

Hex. Flange Screw M6 x 16

711241751

Unavailable

55

Holding Strip

711627437

Unavailable

56

Socket Screw M6 x 90

711241481

Unavailable

57

Holding Strip

711627432

Unavailable

58

Elastic Stop Nut M6

232561414

$1.55

59

Roller Bearing

711232280

Unavailable

60

Ring Housing

711610140

Unavailable

61

Ring Housing

711610130

Unavailable

62

Oil Separating Foam

711256720

Unavailable

63

Loctite 243, 10 ml

293800060

$20.77

64

Molykote G-N, 50 g

420297433

$22.72

65

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

66

Sealant Loctite 648

219703000

$35.72

67

Not Available As Spare Part - Friction Washer

Unavailable

68

Gasket Set Engine

711296372

Unavailable

69

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

70

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

$6.12

71

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

$30.74

72

Rubber Ring

711650960

$4.58

73

Dow Corning 111, 150 g

413707000

$57.82
