01- Cooling System

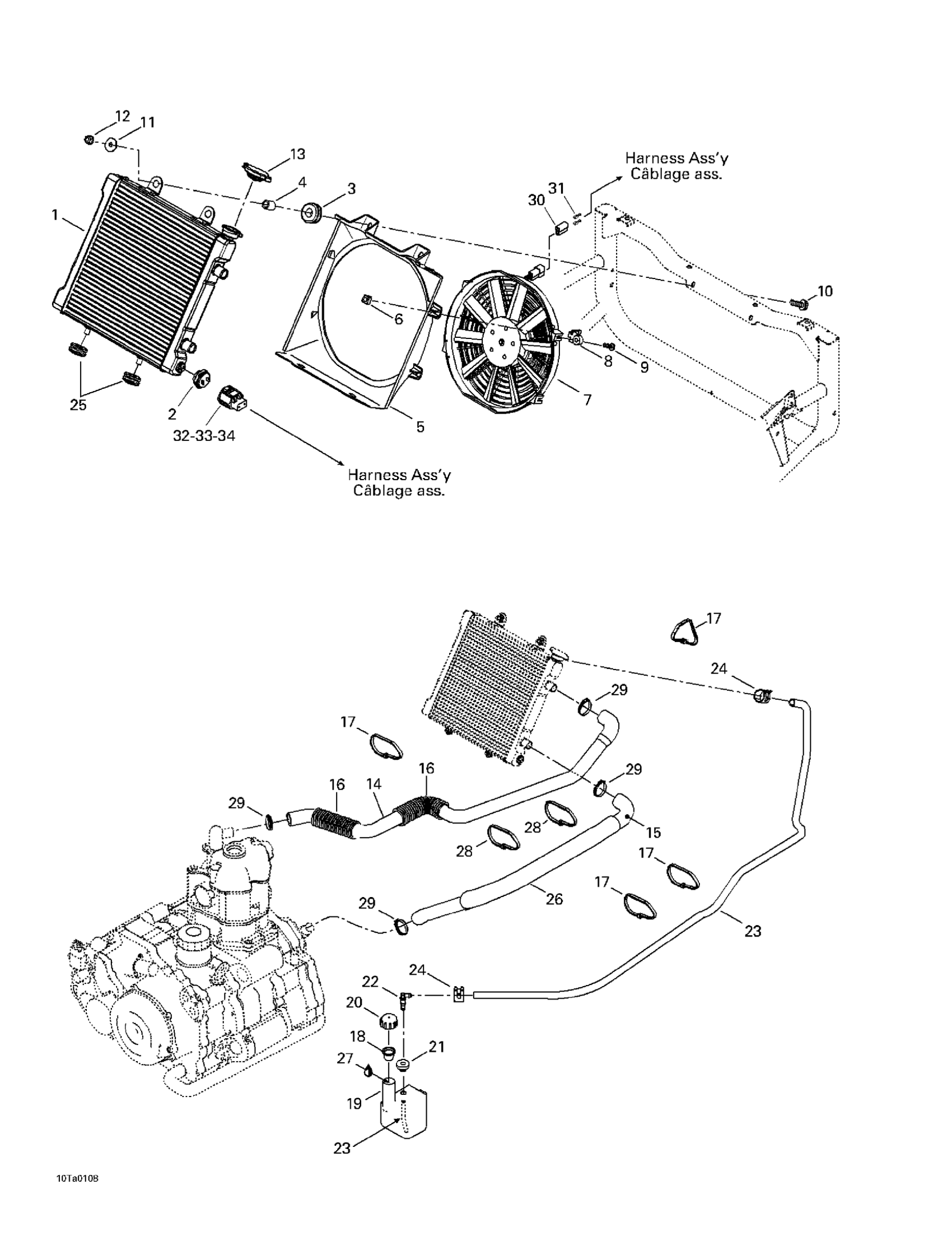

Can-Am Traxter XL, 7448/7489, 2001 01- Cooling System Diagram
#
1
Radiator Ass'y | Includes 1 - 2.
709200056
Unavailable
2
Temperature Sensor
715900095
Unavailable
3
Grommet
709000582
Unavailable
4
Bushing
293900019
Unavailable
5
Outlet shroud
709200013
Unavailable
6
Square Nut M6
232862412
Unavailable
7
Fan ass'y
709200004
Unavailable
8
Fan Support
709200017
Unavailable
9
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
10
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
11
Flat Washer
224060201
Unavailable
Flat Washer
250200082
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13
Pressure Cap
509000187
Unavailable
Radiator Pressure Cap
709200207
Unavailable
14
Radiator Inlet Hose
709200052
Unavailable
15
OUTLET HOSE - Call your local BRP dealership
709200054
Unavailable
16
PROTECTION SHIELD - Call your local BRP dealership
709200031
Unavailable
17
Tie-Rap 180 mm
414115200
Unavailable
18
PROTECTION CAP - Call your local BRP dealership
709200205
Unavailable
19
COOLANT TANK - Call your local BRP dealership
709200099
Unavailable
20
TANK CAP - Call your local BRP dealership
709200009
Unavailable
21
Grommet
709200285
Unavailable
22
Elbow Male Connector
414580600
Unavailable
23
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
24
Spring Clamp
414554800
Unavailable
25
Grommet
709000582
Unavailable
26
PROTECTION SHIELD - Call your local BRP dealership
709200032
Unavailable
27
ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership
219700362
Unavailable
28
Tie Wrap 368 mm
293750008
Unavailable
29
Norma Spring Clamp
293650109
Unavailable
30
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
31
Female Terminal
561503100
Unavailable
32
Female Terminal
409012100
Unavailable
33
Seal
409012300
Unavailable
34
HOUSING-TAB - Call your local BRP dealership
710000078
Unavailable
