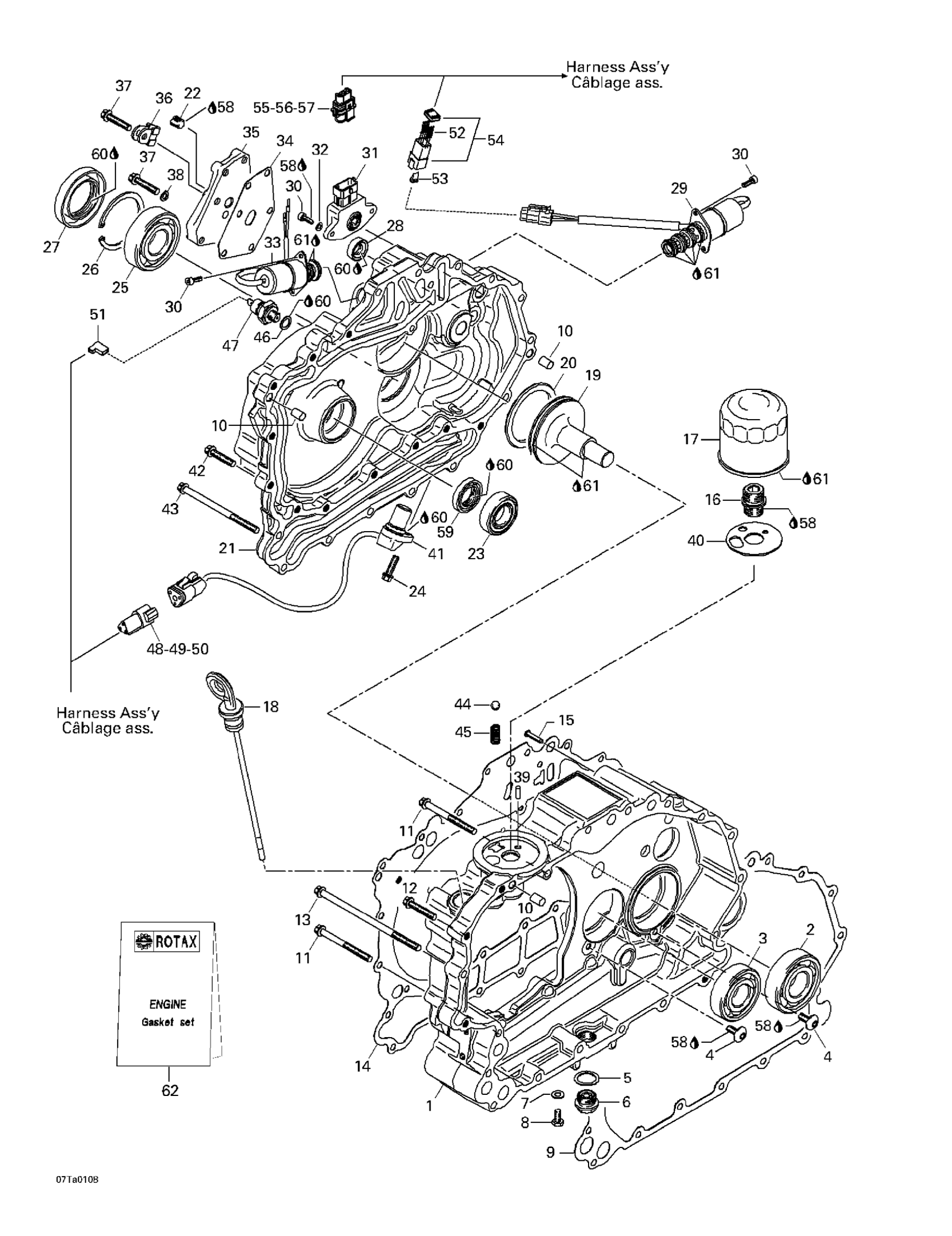

Can-Am Traxter XL, 7448/7489, 2001 Clutch Housing And Cover Diagram

#

Description
Price

1

Clutch Housing

711211921

Unavailable

2

Ball Bearing

420932822

$29.20

3

Ball Bearing

711632200

Unavailable

4

Flat Head Screw M6 x 16

711241531

$10.74

5

Crush Washer

420552280

$2.99

6

Drain Plug M18 X 1.5

420840278

$23.05

7

Sealing Washer

404146600

$0.72

8

Hex. Flange Screw M6 x 16

711241751

Unavailable

9

Clutch HousingGasket

711650582

Unavailable

10

Center Pin 8 X 12

420632010

$3.07

11

Hex. Flange Screw M6 x 70

711940576

Unavailable

12

Hex. Flange Screw M6 x 35

711941126

$4.58

13

Hex. Flange Screw M6 x 130

711640371

Unavailable

14

Clutch Cover Gasket

711650592

Unavailable

15

Groove Pin M4 x 20

711229170

Unavailable

16

Oil Filter Nipple

711924420

$32.28

17

Filtre Huile * Filter Oil

420256623

Unavailable

18

Oil Dipstick

711256610

$13.82

19

Disengaging Piston | Includes 19 - 20.

711257056

$63.05

20

K-Grooved Ring

711650550

Unavailable

21

Clutch Cover

711211811

Unavailable

22

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

23

Ball Bearing 6304

711232190

Unavailable

24

Hex. Flange Screw M6 x 20

711241861

$7.66

25

Ball Bearing

420932822

$29.20

26

RETAINING RING - Call your local BRP dealership

711445070

Unavailable

27

Oil Seal

420650682

$18.43

28

Oil Seal

420250455

$15.22

29

Soleno‹d Valve

711256550

Unavailable

30

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

$1.29

31

Potentiometer (Sub Transmission)

711265600

Unavailable

32

Flat Washer 4

420244072

$0.70

33

Pressure Valve

711256560

Unavailable

34

Gasket

711650620

Unavailable

35

Oil Duct Cover

711211935

Unavailable

36

Open Clamp

414176000

$1.86

37

Hex. Flange Screw M6 x 30

711241941

$3.82

38

Seal Washer

420230415

$1.77

39

NEEDLE PIN - Call your local BRP dealership

711232710

Unavailable

40

Oil Filter Washer

711627370

$7.89

41

Camshft Position Sensor Ass'y

420265727

$108.89

42

Hex. Flange Screw M6 x 30

711241941

$3.82

43

Hex. Flange Screw M6 x 100

711640361

Unavailable

44

Ball

711232370

Unavailable

45

Spring

711238050

Unavailable

46

Oil Seal

420230150

$2.94

47

OIL PRESSURE SWITCH - Call your local BRP dealership

710000313

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Male Terminal

278000631

$4.12

50

Male Lock, 3 Circuits

409207600

$3.02

51

Female Terminal

409010300

$4.12

52

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

53

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

$6.12

54

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

$30.74

55

Male Housing, 3 Circuits

278000997

$15.57

56

Wire Seal

278000999

$2.55

57

Female Terminal

278000998

$3.48

58

Loctite 243, 10 ml

293800060

$20.77

59

Oil Seal

420930392

$11.77

60

Dow Corning 111, 150 g

413707000

$57.82

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Gasket Set Engine

711296372

Unavailable
