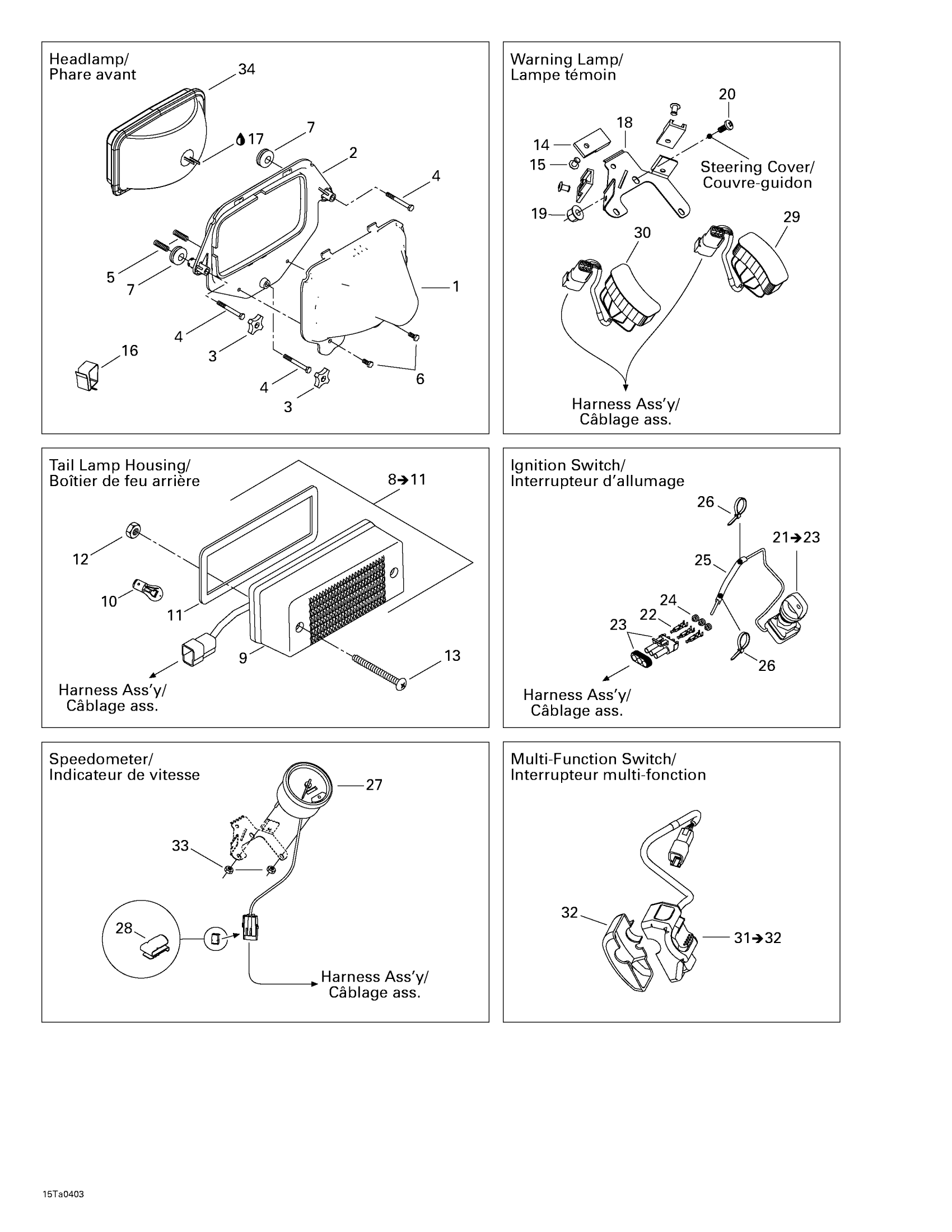

Can-Am Traxter XL, 2004 10- Electrical Accessories Diagram

#

Description
Price

1

Protector

705000023

Unavailable

2

Head Lamp Support

705000474

Unavailable

3

Handle

572106600

Unavailable

4

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

5

Spring

517168600

Unavailable

6

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

7

Grommet

709000582

Unavailable

8

Tail Light Housing

710000102

Unavailable

9

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

10

Bulb

520000758

Unavailable

11

GASKET - Call your local BRP dealership

710000129

Unavailable

12

Hex. Flange Elastic Nut M5

233251414

Unavailable

13

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

14

Clip

270000141

Unavailable

15

Pop Rivet 3/16"

390402400

Unavailable

16

Clip

414227300

Unavailable

17

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

18

Housing Support, Black

710000159

Unavailable

19

Elastic Stop Nut M5

232551414

Unavailable

20

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

21

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

21

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

21

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

22

Female Terminal

278000223

Unavailable

23

Male Housing, 3 Circuits

278000273

Unavailable

24

Wire Seal

278000218

Unavailable

25

Protector Tube

710000171

Unavailable

26

Tie Wrap 142 mm

293750002

Unavailable

27

Speedometer

710000524

Unavailable

28

CLIP - Call your local BRP dealership

409014200

Unavailable

29

RH Warning Lamp | Includes 33 - 36.

710000419

Unavailable

30

LH WARNING LIGHT - Call your local BRP dealership | INCLUDES ITEMS 27 TO 30

710000418

Unavailable

31

Multi-Fonction Switch | Includes 25 to 29

710000015

Unavailable

32

BACK COVER - Call your local BRP dealership

710000173

Unavailable

33

NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership

211100051

Unavailable

34

HEADLAMP - Call your local BRP dealership

710000001

Unavailable
