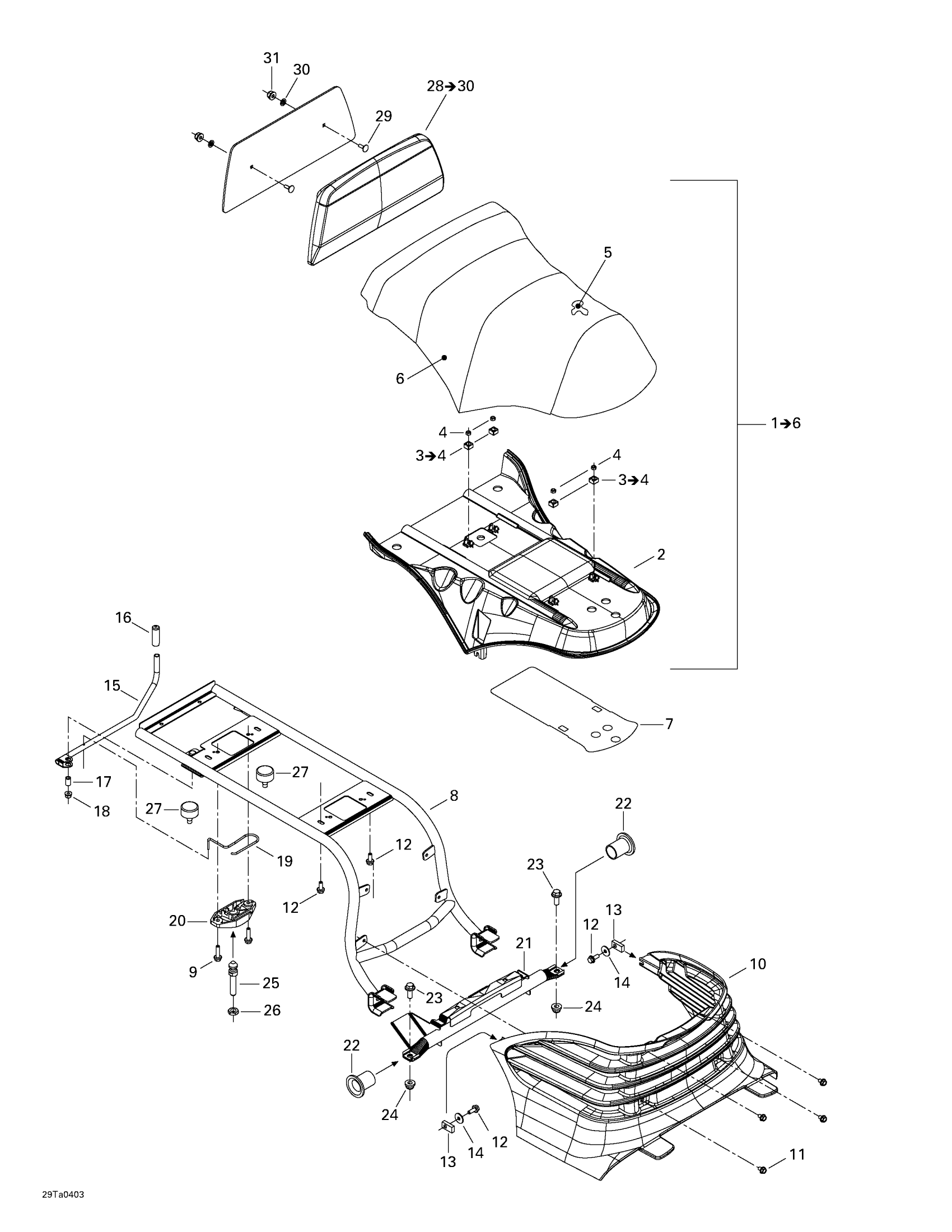

Can-Am Traxter XL, 2004 09- Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 - 6.

708000235

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Seat Cover

708000237

Unavailable

7

Reflective Sheet

708000160

Unavailable

8

Seat Support, Black

708000069

Unavailable

9

Hex. Flange Screw M6 X 25

207662544

Unavailable

10

Engine Cover

705000879

Unavailable

11

Hex. Forming Screw M6 X 10

210261050

Unavailable

12

Hex. Flange Screw M6 X 16

207661644

Unavailable

13

Nut Housing M6

708000042

Unavailable

14

Flat Washer

224061201

Unavailable

15

Lever, Black

708000074

Unavailable

16

Vinyl Cap, Black

708000087

Unavailable

17

Sleeve

293900078

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

19

SPRING - Call your local BRP dealership

708000073

Unavailable

20

Latch Base

708000034

Unavailable

21

Seat Pivot, Black

708000044

Unavailable

22

SEAT BUSHING - Call your local BRP dealership

708000019

Unavailable

23

Hex. Flange Screw M8 X 20

207682044

Unavailable

24

Hex. Flange Elastic Nut M8

233281414

Unavailable

25

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

26

Hex. Jam Nut M10

232100600

Unavailable

27

Rubber Stopper

708000758

Unavailable

28

BACKREST COVER ASS'Y - Call your local BRP dealership | Includes 46 to 50

708000079

Unavailable

29

CARRIAGE BOLT M6 X 30

207763060

Unavailable

30

Locking Nut

250100020

Unavailable

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
