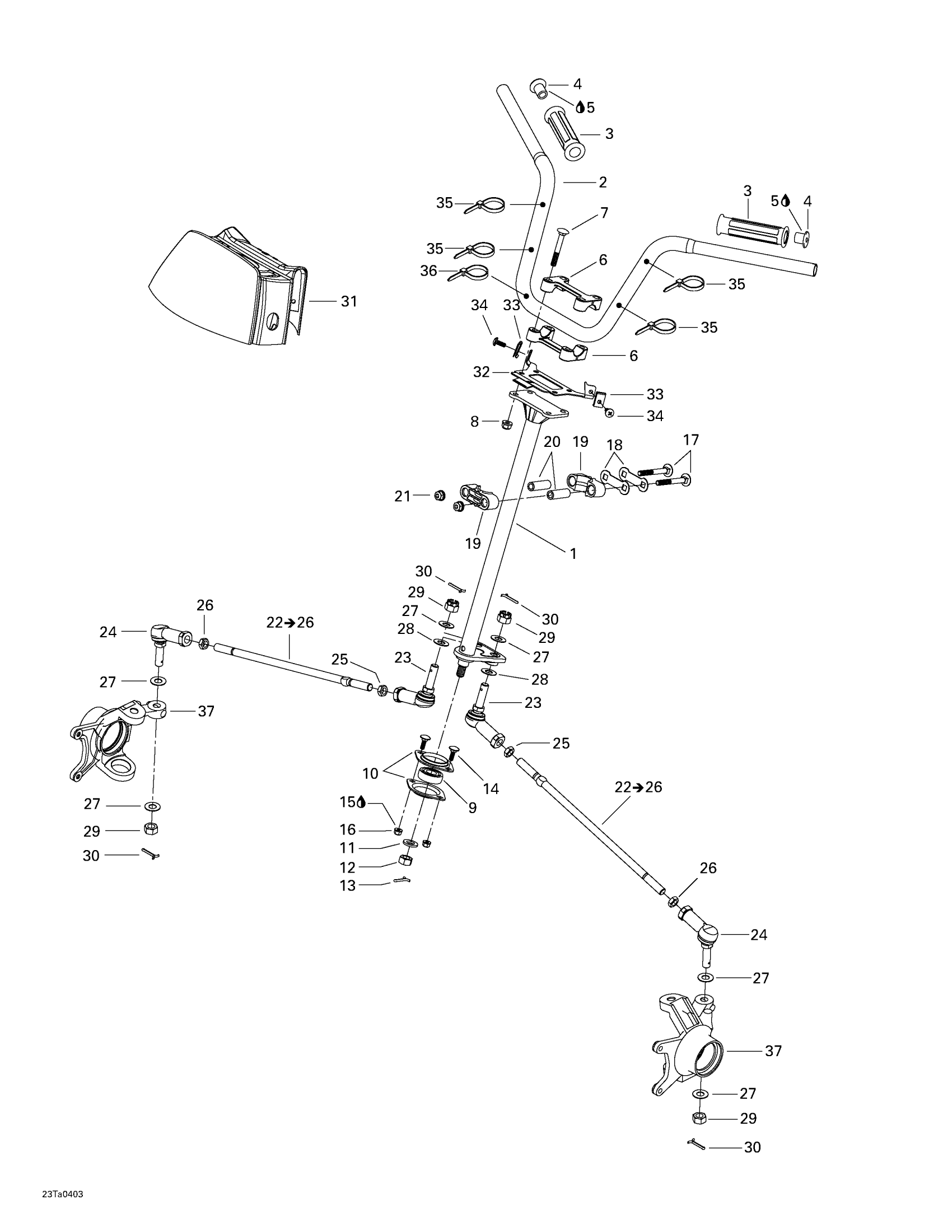

Can-Am Traxter XL, 2004 07- Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400089

Unavailable

2

HANDLE BAR - Call your local BRP dealership

709400199

Unavailable

3

Handle Grip

709400493

Unavailable

4

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

5

Loctite 406, 7 Oz

293800100

Unavailable

6

Steering Clamp

709400028

Unavailable

7

CARRIAGE BOLT M8 X 65 - Call your local BRP dealership

207786544

Unavailable

8

Hex. Flange Elastic Nut M8

233281414

Unavailable

9

Ball Bearing

709400439

Unavailable

10

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

11

Flat Washer 12 mm

234021410

Unavailable

12

Nut M12

250100099

Unavailable

13

Cotter Pin

211400017

Unavailable

14

Carriage Bolt M6 X 25

207762544

Unavailable

15

Loctite 243, 10 ml

293800060

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Carriage Bolt M8 X 70

207787044

Unavailable

18

Stopper Plate

506150600

Unavailable

19

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

20

Housing Bushing

506150500

Unavailable

21

Hex. Flange Elastic Nut M8

233281414

Unavailable

22

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

23

RH Ball Joint

709402302

Unavailable

24

LH Ball Joint

709402303

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Hardened Washer

706200281

Unavailable

28

Washer

503189276

Unavailable

29

Nut M12

250100099

Unavailable

30

Cotter Pin

211400013

Unavailable

31

Steering Cover, Slate Gray

709400215

Unavailable

32

Cover Support, Black | 7415/7416. 7417/7418.

709400077

Unavailable

33

Speednut M6

211100050

Unavailable

34

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

35

Tie-Rap 180 mm

414115200

Unavailable

36

Tie Wrap 368 mm

293750008

Unavailable

37

RH Knuckle

709400095

Unavailable

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable
