- Traxter Max Std & Max XT, 2005
10- Electrical Harness, Front Section XT

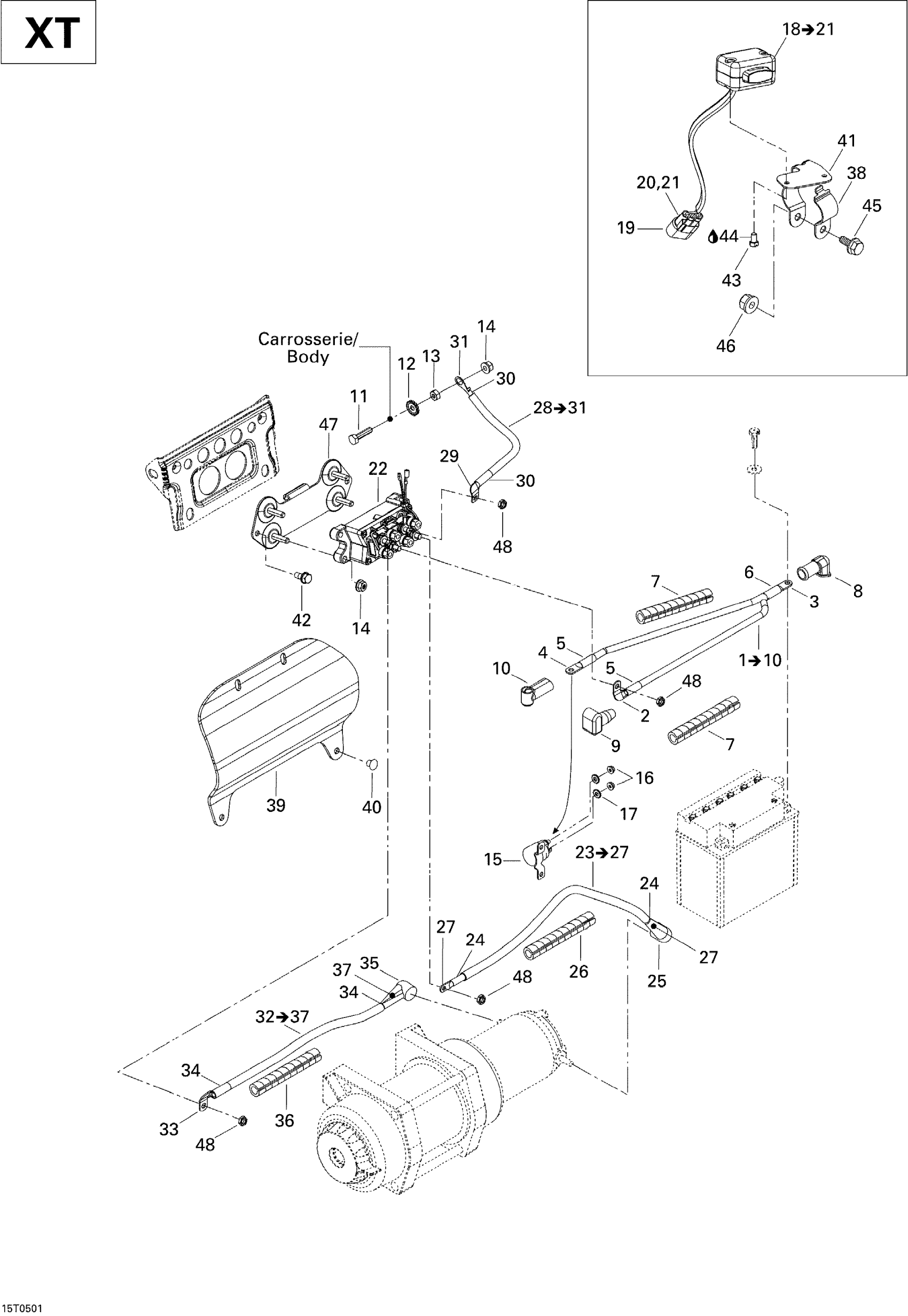

Can-Am Traxter Max Std & Max XT, 2005 10- Electrical Harness, Front Section XT Diagram
#
1
Battery Winch Solenoid Cable | Includes 1 to 10
710000466
Unavailable
2
TERMINAL_FEMALE - Call your local BRP dealership | STD Models
710000475
Unavailable
3
FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership
710000478
Unavailable
4
Flat Open Barel 6.6 mm
710000479
Unavailable
5
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
6
Shrink Tubing | XT Models
275500578
Unavailable
7
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
8
Protector Cap | STD Models
710001829
Unavailable
9
Protector Cap | STD Models
710000523
Unavailable
10
Protector Cap
710000527
Unavailable
11
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
12
External Serrated Lock Washer 6 mm
234461608
Unavailable
13
Hex. Nut M6
232061414
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
Starter Relay
515176011
Unavailable
16
Hex. Nut M6
232061414
Unavailable
17
Lock Washer Helical M6
234161601
Unavailable
18
WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16
710001001
Unavailable
19
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
20
Male Terminal | XT Models
278000222
Unavailable
21
Wire Seal
278001065
Unavailable
22
Winch Solenoid | XT Models
710001000
Unavailable
23
Winch Solenoid Cable Ass'y | Includes 17 to 21
710000438
Unavailable
24
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
25
Protector Cap
710000494
Unavailable
26
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
27
Open Barrel
710000530
Unavailable
28
Frame Solenoid Cable Ass'y | Includes 22 to 25
710000439
Unavailable
29
TERMINAL_FEMALE - Call your local BRP dealership | STD Models
710000475
Unavailable
30
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
31
Open Barrel
710000530
Unavailable
32
Winch Solenoid Cable Ass'y | Includes 26 to 31
710000440
Unavailable
33
OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models
710000476
Unavailable
34
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
35
Protector Cap
710000494
Unavailable
36
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
37
Open Barrel
710000530
Unavailable
38
Collar
710000566
Unavailable
39
Protector Pad
710000511
Unavailable
40
Black, Dart
293730011
Unavailable
41
Support, Black
710000564
Unavailable
42
Hex. Forming Screw M6 X 10
210261050
Unavailable
43
Hex. Cap Screw 6-32 X 1/4" | XT Models
250000153
Unavailable
44
Loctite 243, 10 ml
293800060
Unavailable
45
Hex. Flange Screw M6 X 16
207661654
Unavailable
46
Hex. Flange Elastic Nut M6
233261494
Unavailable
47
SOLENOID SUPPORT, BLACK - Call your local BRP dealership
710000535
Unavailable
48
Elastic Stop Nut M6
232561414
Unavailable
