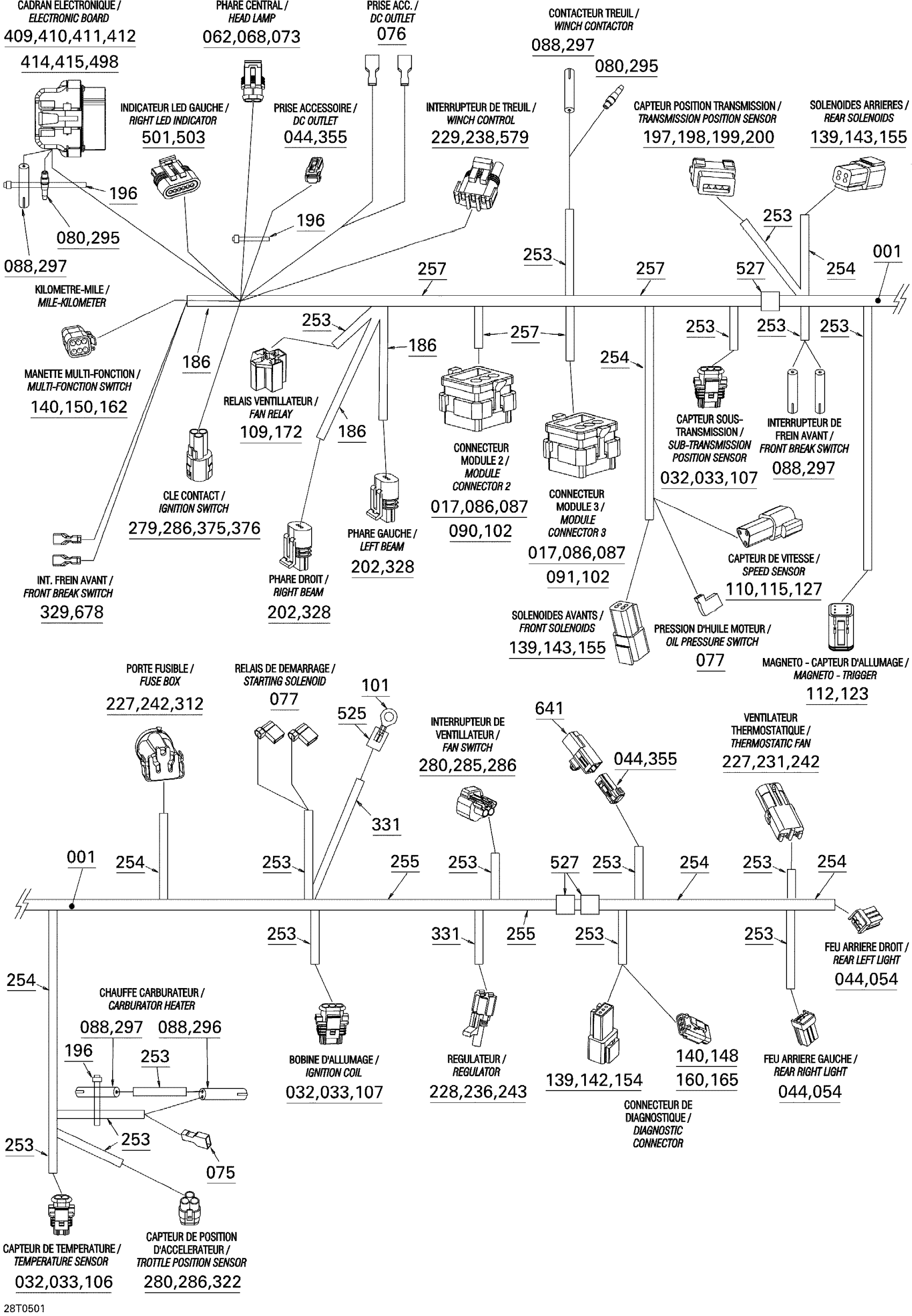

Can-Am Traxter Max Std & Max XT, 2005 10- Electrical Harness, Frame Diagram
#
001
Harness Ass'y | Includes 001 to 678
710000689
Unavailable
017
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
032
Female Terminal
278000998
Unavailable
033
Wire Seal
278000999
Unavailable
044
Female Terminal
515175231
Unavailable
054
Female Housing, 3 Circuits
515175495
Unavailable
062
Female Terminal
278001014
Unavailable
068
Female Housing, 2 Circuits
409209500
Unavailable
073
Wire Seal
278001013
Unavailable
075
Female Terminal
409010700
Unavailable
076
Female Terminal
409010800
Unavailable
077
Female Terminal
409010300
Unavailable
080
Male Terminal
278000230
Unavailable
086
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
087
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
088
Female Terminal | DS 650 X
278001009
Unavailable
090
Male Terminal Housing, 26 Circuits
278001062
Unavailable
091
MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership
278001063
Unavailable
101
Open Barrel Terminal
278001392
Unavailable
102
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
106
Male Housing, 2 Circuits
278001005
Unavailable
107
Male Housing, 3 Circuits
278000997
Unavailable
109
Female Housing, 5 Circuits
409209900
Unavailable
110
Male Terminal
278000631
Unavailable
112
Female Terminal
278000632
Unavailable
115
Male Housing
278002378
Unavailable
123
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
127
Male Lock, 3 Circuits
409207600
Unavailable
139
MALE TERMINAL - Call your local BRP dealership
409014800
Unavailable
140
FEMALE TERMINAL - Call your local BRP dealership
409015100
Unavailable
142
MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership
710000044
Unavailable
143
MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership
710000045
Unavailable
148
FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership
515175249
Unavailable
150
FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
409015400
Unavailable
154
MALE LOCK, 3 CIRCUITS - Call your local BRP dealership
710000043
Unavailable
155
MALE LOCK, 4 CIRCUITS - Call your local BRP dealership
710000046
Unavailable
160
Female Lock, 3 Circuits
515175248
Unavailable
162
FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership
409014900
Unavailable
165
PLUG - Call your local BRP dealership
515175303
Unavailable
172
Female Terminal
561503100
Unavailable
186
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
196
Tie Wrap 142 mm
293750002
Unavailable
197
Female Terminal
710000051
Unavailable
198
Female Terminal Housing, 4 Circ.
710000032
Unavailable
199
WIRE SEAL - Call your local BRP dealership
710000050
Unavailable
200
Cap
710000049
Unavailable
202
Female Terminal
278001114
Unavailable
227
Male Terminal
409004300
Unavailable
228
Female Terminal
409007300
Unavailable
229
Female Terminal
278000223
Unavailable
231
Female Housing, 2 Circuits
278000217
Unavailable
236
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
238
Male Housing, 3 Circuits
278000273
Unavailable
242
Wire Seal
278000218
Unavailable
243
Wire Seal
710000048
Unavailable
253
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
279
Male Terminal
409011300
Unavailable
280
Female Terminal
409012100
Unavailable
285
HOUSING-TAB - Call your local BRP dealership
710000078
Unavailable
286
Seal
409012300
Unavailable
295
Insulated Sheath
278001008
Unavailable
296
Insulated Sheath
278000770
Unavailable
297
Insulated Sheath
278001007
Unavailable
312
MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership
710000107
Unavailable
322
Female Terminal Housing, 3 Circ.
710000153
Unavailable
328
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
278001467
Unavailable
329
Female Terminal
710000082
Unavailable
331
PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership
219704446
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
375
Male Terminal
710000218
Unavailable
376
HOUSING-TAB - Call your local BRP dealership
710000219
Unavailable
409
Plug
515175812
Unavailable
410
Female Housing, 24 Circuits
515175801
Unavailable
411
Retainer Block
515175802
Unavailable
412
Wire Seal
515175803
Unavailable
414
LOCK - Call your local BRP dealership
515175805
Unavailable
415
Female Terminal
515175806
Unavailable
498
Female Housing
710000399
Unavailable
501
FEMALE TERMINAL - Call your local BRP dealership
710000412
Unavailable
503
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710000414
Unavailable
525
SHRINK TUBING - Call your local BRP dealership
710000482
Unavailable
527
Shrink Tubing
710000484
Unavailable
579
Wire Seal
710000504
Unavailable
641
Male Housing, 2 Circuits
710000667
Unavailable
678
Shrink Tubing
710000750
Unavailable
