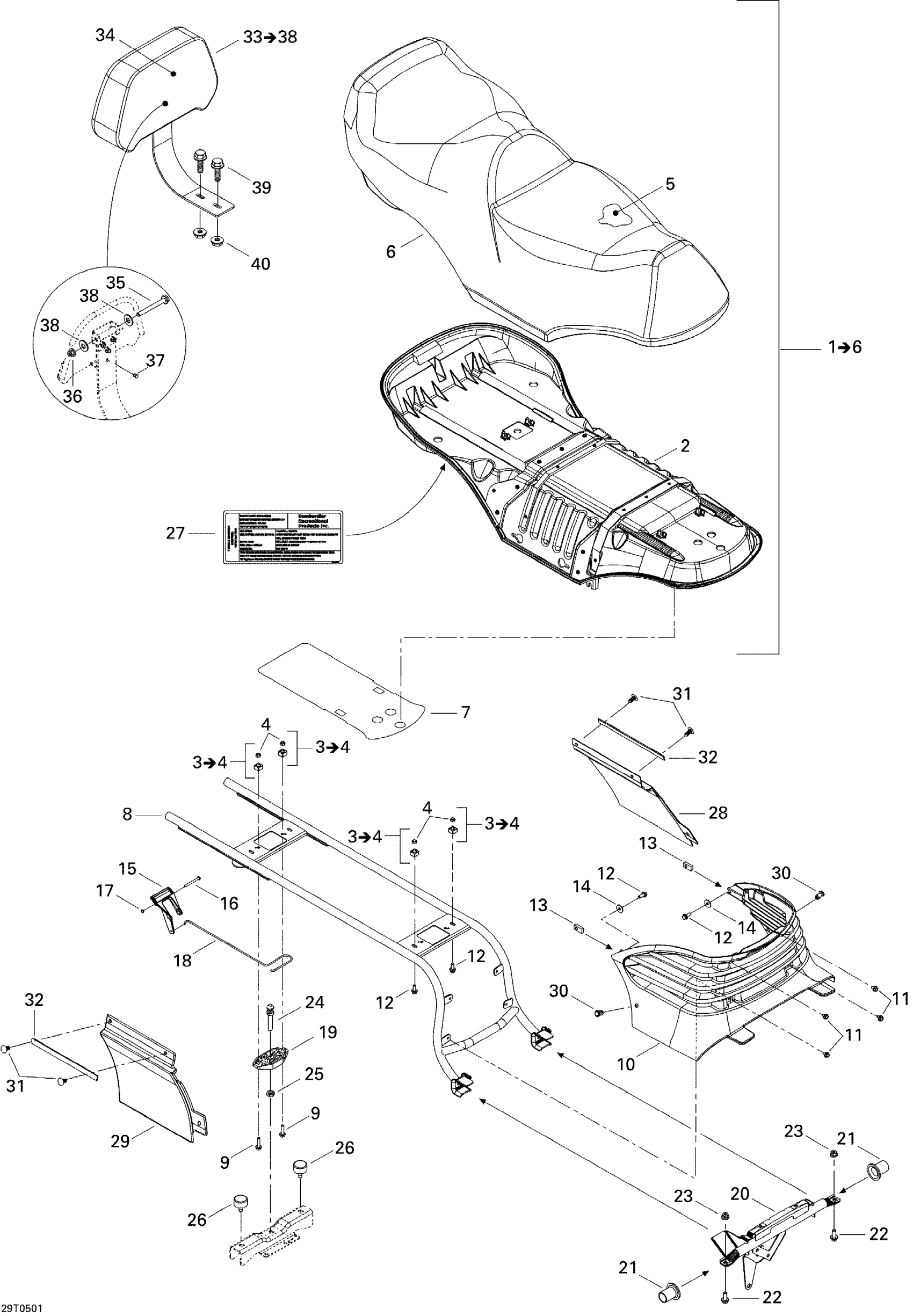

Can-Am Traxter Max Std & Max XT, 2005 09- Seat Diagram
#
1
SEAT ASS'Y - Call your local BRP dealership | Includes 1 To 6, STD, Viper Red
708000392
Unavailable
1
Seat Ass'y | Includes 1 To 6, XT, Yellow
708000393
Unavailable
1
Seat Ass'y | Includes 1 To 6, STD & XT, L. Green
708000394
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
4
Hex. Nut M6
232061600
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Seat Cover | STD, Viper Red
708000395
Unavailable
6
Seat Cover | XT, Yellow
708000396
Unavailable
6
Seat Cover | STD & XT, L.Green
708000397
Unavailable
7
Reflective Sheet
708000434
Unavailable
8
Seat Support
708000345
Unavailable
9
Hex. Flange Screw M6 X 25
207662544
Unavailable
10
Engine Cover
708000388
Unavailable
11
Hex. Forming Screw M6 X 10
210261050
Unavailable
12
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
13
Nut Housing M6
708000042
Unavailable
14
Flat Washer
224061201
Unavailable
15
Lever Latch
708000010
Unavailable
16
SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership
293150062
Unavailable
17
Push Nut
389804300
Unavailable
18
SPRING - Call your local BRP dealership
708000015
Unavailable
19
Latch Base
708000034
Unavailable
20
Seat Pivot
708000411
Unavailable
21
SEAT BUSHING - Call your local BRP dealership
708000019
Unavailable
22
Hex. Flange Screw M8 X 20
207682046
Unavailable
23
Hex. Elastic Flange Nut M8
233281416
Unavailable
24
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
25
Hex. Jam Nut M10
232100600
Unavailable
26
Rubber Stopper
708000758
Unavailable
27
Emission Label
704900876
Unavailable
28
LH Panel | STD, Viper Red
705000669
Unavailable
28
LH Panel | XT, Yellow
705000694
Unavailable
28
LH Panel | STD & XT, L.Green
705000880
Unavailable
29
RH PANEL - Call your local BRP dealership | STD, Viper Red
705000670
Unavailable
29
RH PANEL - Call your local BRP dealership | XT, Yellow
705000695
Unavailable
29
RH Panel | STD & XT, L.Green
705000881
Unavailable
30
Tuflok Plastic Rivet
293150230
Unavailable
31
Black Dart
293730010
Unavailable
32
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
33
Backrest Ass'y | Includes 33 To 38
708000407
Unavailable
34
Backrest Cover
708000408
Unavailable
35
Hex. Screw M8 X 95
207089544
Unavailable
36
Hex. Flange Elastic Nut M8
233281414
Unavailable
37
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
38
Hardened Washer
706200281
Unavailable
39
Hex. Flange Screw M8 X 25
207682544
Unavailable
40
Hex. Flange Elastic Nut M8
233281414
Unavailable
