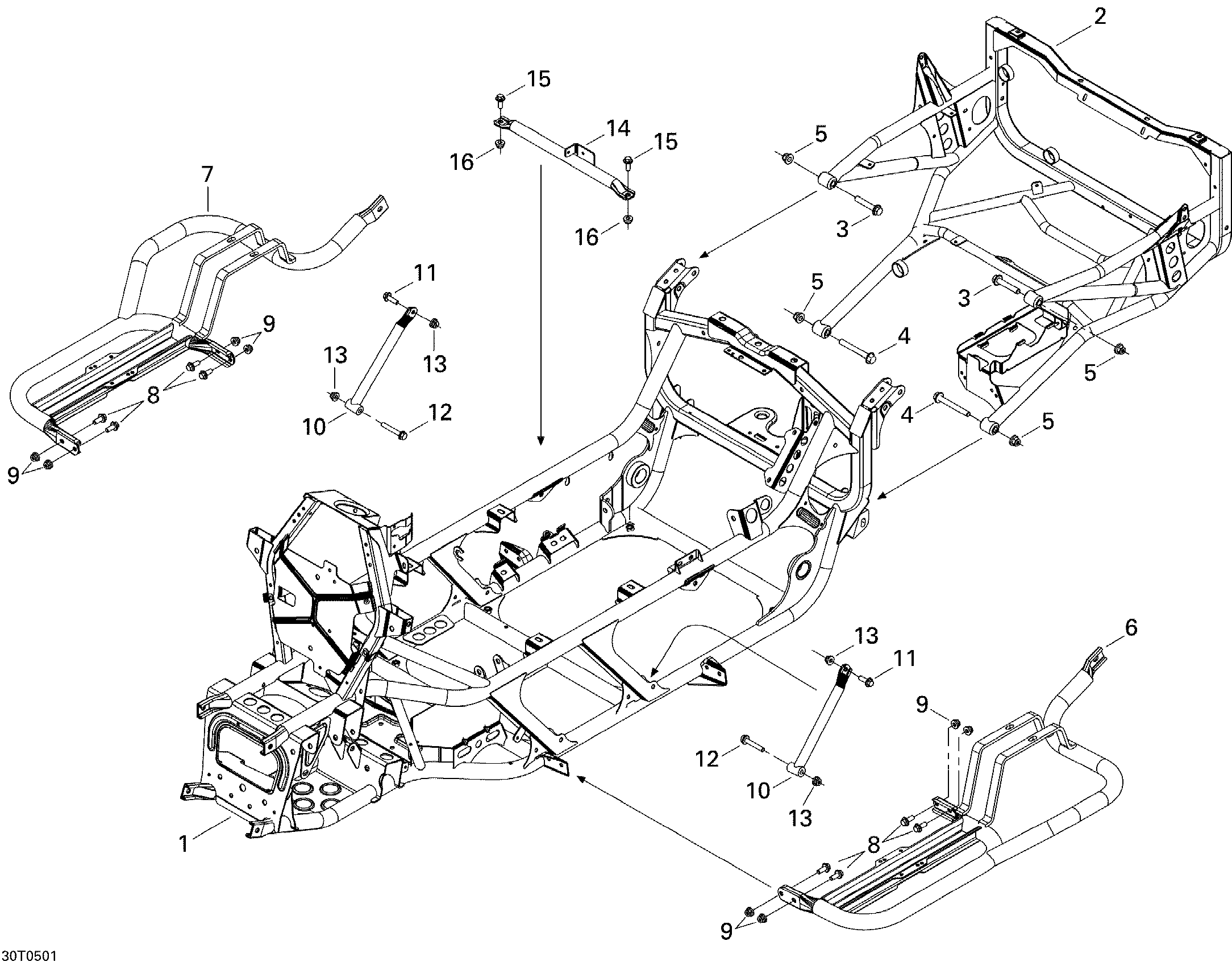

Can-Am Traxter Max Std & Max XT, 2005 09- Frame Diagram

#

Description
Price

1

Frame, Black

705200985

Unavailable

2

Frame Extension, Black

705201039

Unavailable

3

Hex. Flange Screw M10 X 55

207605544

Unavailable

4

HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership

207608044

Unavailable

5

Hex. Flange Elastic Nut M10

233201414

Unavailable

6

LH Footrest, Black

705200635

Unavailable

7

RH Footrest, Black

705200653

Unavailable

8

Hex. Flange Screw M8 X 20

207682044

Unavailable

9

Hex. Flange Elastic Nut M8

233281414

Unavailable

10

Removable Brace, Black

705200143

Unavailable

11

Hex. Flange Screw M8 X 25

207682544

Unavailable

12

Hex. Flange Screw M8 X 50

207685044

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

Unavailable

14

Cross Member, Black

705201106

Unavailable

15

Hex. Flange Screw M8 X 20

207682046

Unavailable

16

Hex. Elastic Flange Nut M8

233281416

Unavailable
