09- Body And Accessories 2

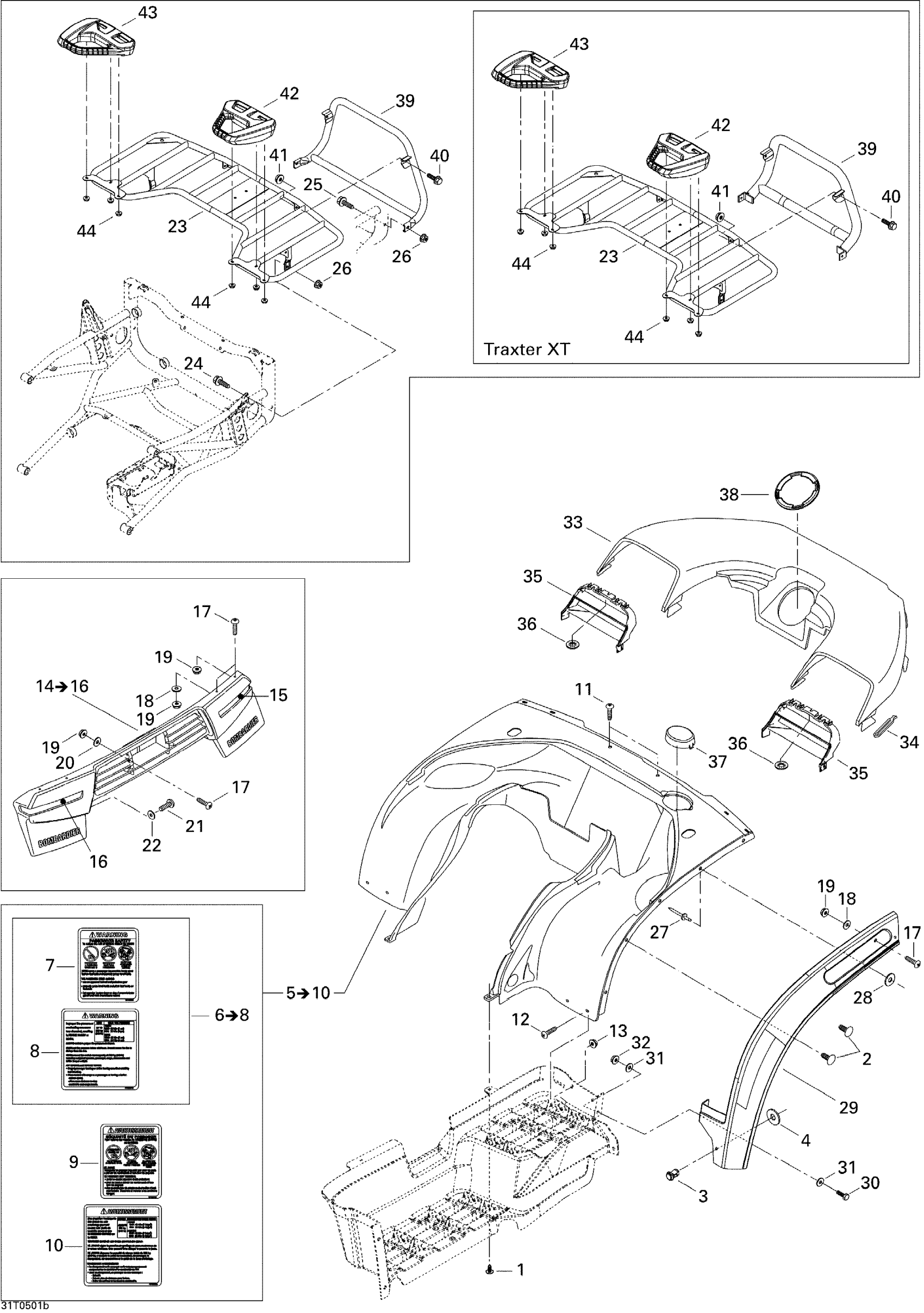

Can-Am Traxter Max Std & Max XT, 2005 09- Body And Accessories 2 Diagram
#
1
Black, Dart
293730011
Unavailable
2
Black, Dart
293730011
Unavailable
3
Tuflok Plastic Rivet
293150230
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Rear Fender, Yellow | Yellow, Includes 5 to 10
703500465
Unavailable
5
Rear Fender, Viper Red | Viper Red, Includes 5 to 10
703500466
Unavailable
5
Rear Fender, Laurentian Green | Laurentian Green, Includes 5 to 10
703500467
Unavailable
6
Warning Decal Ass'y | Includes 4 To 6
704900857
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership
732600009
Unavailable
12
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
13
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
14
REAR FASCIA ASS'Y, BLACK - Call your local BRP dealership | Includes 12 To 14
703500012
Unavailable
15
RH Rear Reflector
704900085
Unavailable
16
LH Rear Reflector
704900086
Unavailable
17
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
18
Flat Washer
224060201
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
20
Flat Washer
224060201
Unavailable
21
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership
732600009
Unavailable
22
Flat Washer
224061121
Unavailable
23
Luggage Rack, Black
705000674
Unavailable
24
Hex. Flange Screw M8 X 20
207682044
Unavailable
25
Hex. Flange Screw M8 X 50
207685044
Unavailable
26
Hex. Flange Elastic Nut M8
233281414
Unavailable
27
Tuflok Plastic Rivet
293150230
Unavailable
28
Flat Washer 8 mm
234082410
Unavailable
29
LH Front Mudguard
705001593
Unavailable
29
RH Front Mudguard
705001592
Unavailable
30
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
31
Flat Washer
224060201
Unavailable
32
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
33
Fender Cover, Yellow | Yellow
705000179
Unavailable
33
Fender Cover, Viper Red | Red
705000576
Unavailable
33
Fender Cover, Laurentian Green | Green
705000831
Unavailable
34
Windshield Latch
570023800
Unavailable
35
LH Grill, Black
705000180
Unavailable
35
RH Grill, Black
705000181
Unavailable
36
PUSH NUT - Call your local BRP dealership
250100000
Unavailable
37
COVER, BLACK - Call your local BRP dealership
705000132
Unavailable
38
CAP - Call your local BRP dealership
705000207
Unavailable
39
Rear Bumper, Black | Traxter 5 Speed STD
705000602
Unavailable
39
Rear Bumper, Black | Traxter 5 Speed XT
705001267
Unavailable
40
Hex. Flange Screw M8 X 25
207682544
Unavailable
41
Hex. Flange Elastic Nut M8
233281414
Unavailable
42
LH Handle
705001761
Unavailable
43
RH Handle
705001762
Unavailable
44
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
