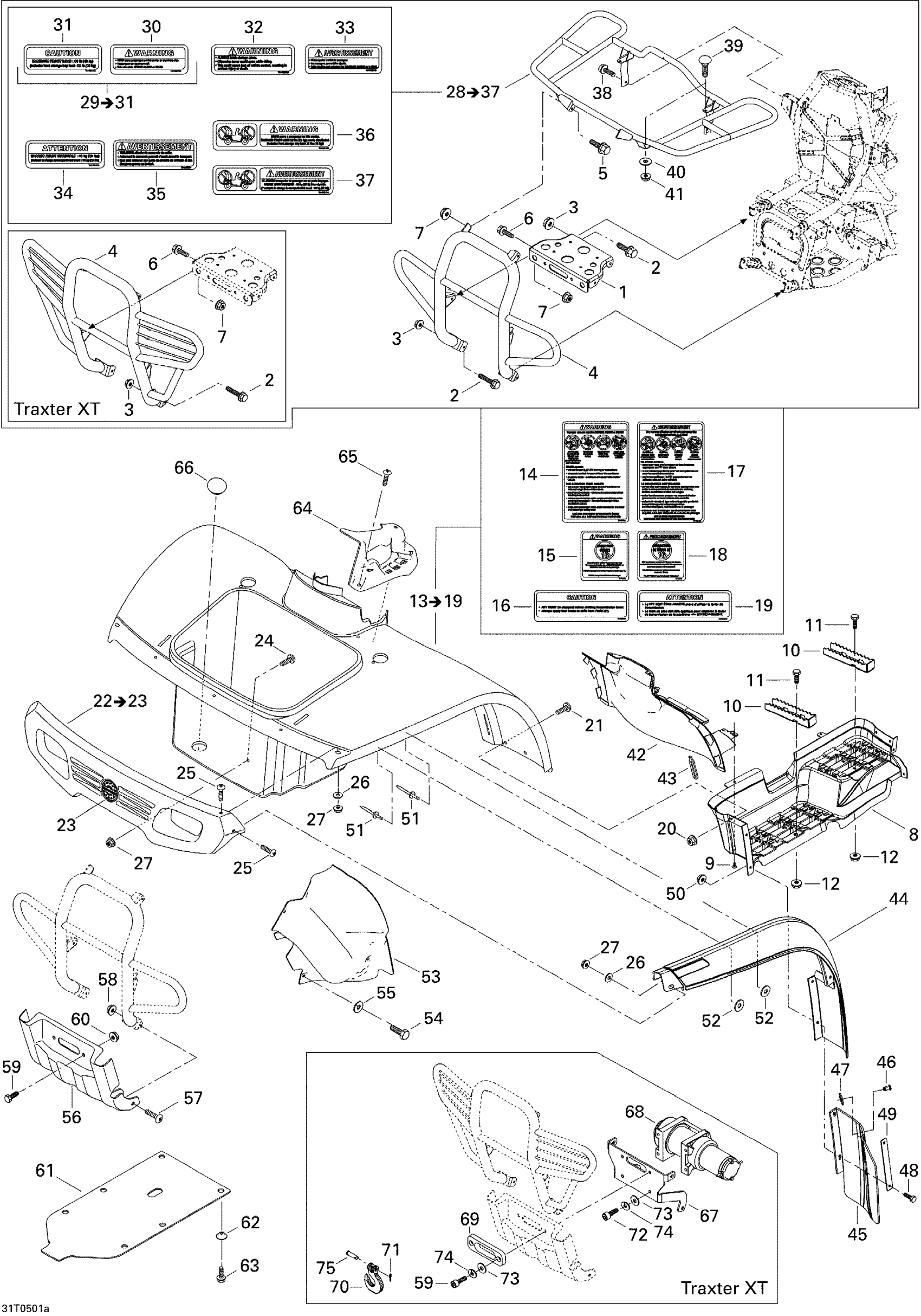

Can-Am Traxter Max Std & Max XT, 2005 Body And Accessories 1 Diagram

#

Description
Price

1

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

2

Hex. Flange Screw M8 X 25

207682544

$0.90

3

Hex. Flange Elastic Nut M8

233281414

$1.14

4

FRONT BUMPER, BLACK - Call your local BRP dealership | Traxter 5 Speed XT

705000585

Unavailable

4

Front Bumper, Black | Traxter 5 Speed STD

705000591

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$0.92

6

Hex. Flange Screw M8 X 25

207682544

$0.90

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

RH Footboard

705001628

Unavailable

8

LH Footboard

705001629

Unavailable

9

Black, Dart

293730011

$0.79

10

Footrest, Black

705001083

Unavailable

11

Hex. Flange Screw M6 X 25

207662554

$1.48

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Front Fender, Laurentian Green | Laurentian Green, Includes 13 to 19

703500495

Unavailable

13

Front Fender, Yellow | Yellow, Includes 13 to 19

703500496

Unavailable

13

Front Fender, Viper Red | Viper Red, Includes 13 to 19

703500497

Unavailable

14

Warning Decal, Death And Injuries | English Version

704901749

Unavailable

15

Warning Decal, Under 16 Years Old | English Version

704901753

Unavailable

16

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version

704900436

Unavailable

19

Caution Decal, Transmission Selector | French version

704900008

Unavailable

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

21

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

22

Front Fascia Ass'y, black | Includes 21 To 22

703500011

Unavailable

23

BRP Logo 68mm

516008739

$12.87

24

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

25

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

26

Flat Washer

224060201

$1.15

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

28

Luggage Rack Kit | Includes 27 To 34

703500452

Unavailable

29

Warning Decal, Front Load | English Version, Includes 28 To 30

704900799

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Warning Decal, Cover Latch | English Version

704900800

Unavailable

33

Warning Decal, Death And Injuries | French Version

704900798

Unavailable

34

Caution Decal, Maximum Load | French Version

704900016

Unavailable

35

Warning Decal, Cover Latch | French Version

704900801

Unavailable

36

Warning Decal, Front Load | English Version

704900453

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

39

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

40

Flat Washer

224061121

$0.44

41

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

42

Tank Cover

705000010

Unavailable

43

Windshield Latch

570023800

$3.58

44

LH Front Mudguard

705001588

Unavailable

44

RH Front Mudguard

705001587

Unavailable

45

Mudguard Extension

705000755

Unavailable

46

Tuflok Plastic Rivet

293150230

$1.21

47

Flat Washer 8 mm

234082410

$1.11

48

Hex. Screw M6 X 25

207162544

$1.05

49

PLATE - Call your local BRP dealership

705000754

Unavailable

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

51

Tuflok Plastic Rivet

293150230

$1.21

52

Flat Washer 8 mm

234082410

$1.11

53

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

53

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

54

Hex. Flange Screw M6 X 16

210261650

$1.22

55

Flat Washer

224061201

$1.11

56

Front Protection Plate, black

705000135

Unavailable

57

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

58

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

59

Hex. Flange Screw M10 X 25

207602544

$1.33

59

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

60

Hex. Flange Elastic Nut M10

233201414

$1.26

61

Skid Plate

705000675

Unavailable

62

CUP - Call your local BRP dealership

705200533

Unavailable

63

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

64

Lever Indicator

705000081

Unavailable

65

Tuflock Phillips Plastic Screw

414745900

$1.30

66

Rubber Cover

570041600

Unavailable

67

Mounting Plate | Traxter 5 Speed XT

705000994

Unavailable

68

WINCH - Call your local BRP dealership

705000839

Unavailable

69

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

70

Winch Hook Kit

705014949

$27.66

71

Cotter Pin

250400022

$8.66

72

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

73

Flat Washer 8 mm

234081410

$0.69

74

Lock Washer 8 mm

234181401

$0.89

75

Clevis Pin

250400021

$11.83
