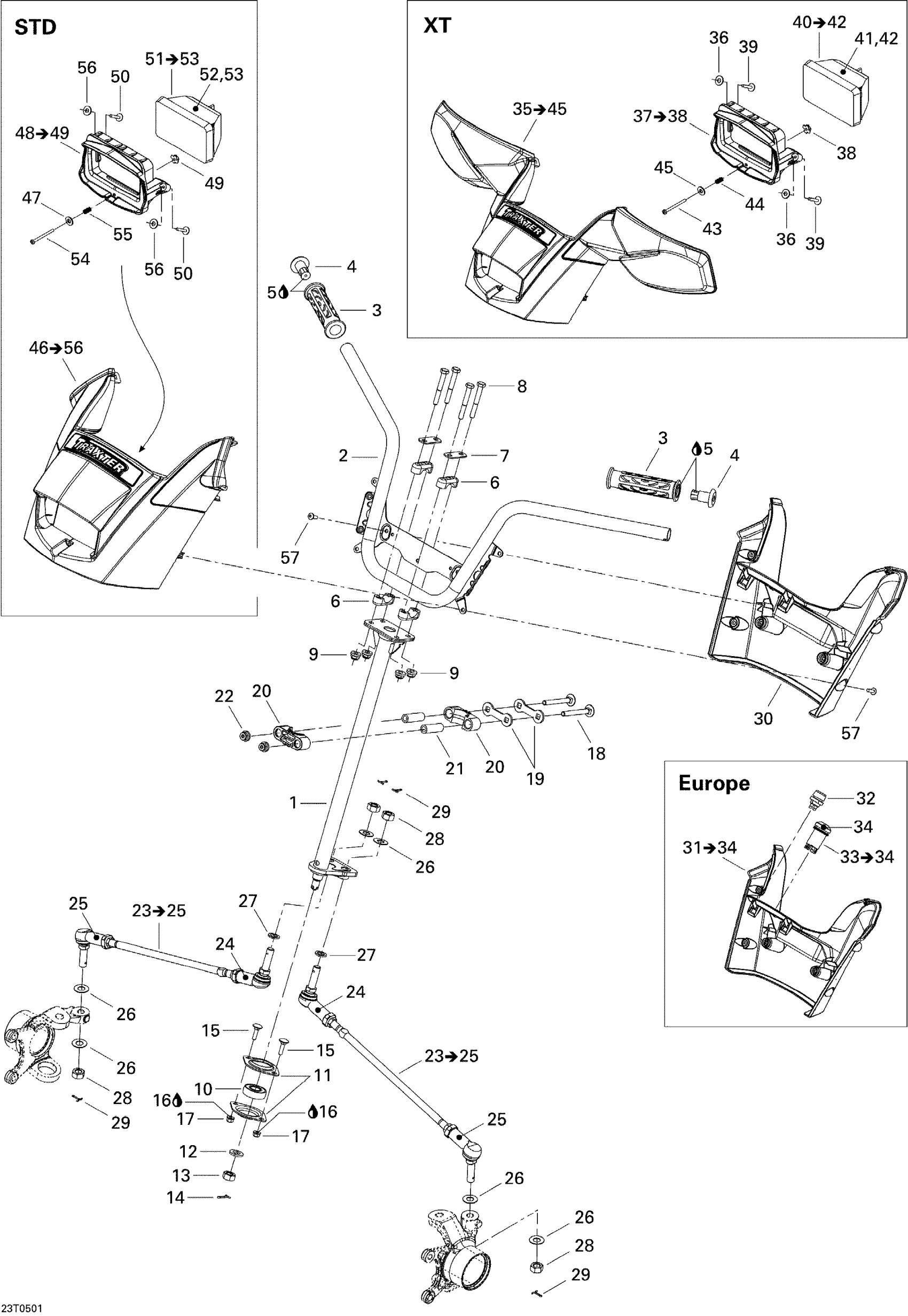

Can-Am Traxter Max Std & Max XT, 2005 07- Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400305

Unavailable

2

HANDLE BAR - Call your local BRP dealership

709400300

Unavailable

3

Handle Grip

709400493

Unavailable

4

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

5

Loctite 406, 7 Oz

293800100

Unavailable

6

Steering Support

709400919

Unavailable

7

Stiffner

709400509

Unavailable

8

Hex. Screw M8 X 60

207086046

Unavailable

9

Hex. Elastic Flange Nut M8

233281416

Unavailable

10

Ball Bearing

709400439

Unavailable

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

Unavailable

13

Nut M12

250100099

Unavailable

14

Cotter Pin

211400017

Unavailable

15

Carriage Bolt M6 X 25

207762544

Unavailable

16

Loctite 243, 10 ml

293800060

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

Carriage Bolt M8 X 70

207787044

Unavailable

19

Stopper Plate

506150600

Unavailable

20

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

21

Housing Bushing

506150500

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

24

RH Ball Joint

709402302

Unavailable

25

LH Ball Joint

709402303

Unavailable

26

Hardened Washer

706200281

Unavailable

27

Washer

503189276

Unavailable

28

Nut M12

250100099

Unavailable

29

Cotter Pin

211400013

Unavailable

30

REAR STEERING COVER - Call your local BRP dealership

709400273

Unavailable

31

Rear Steering Cover Ass'y | Europe / Includes 32 to 36

709400336

Unavailable

32

Push Button

415130372

Unavailable

33

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

Unavailable

34

EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe

710000661

Unavailable

35

FRONT STEERING COVER ASS'Y - Call your local BRP dealership | Traxter XT 5 Speed / Includes 37 to 48

709400333

Unavailable

36

Washer M5

250200025

Unavailable

37

Light Stand Ass'y | Includes 40 to 41

709400296

Unavailable

38

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

39

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

40

CENTRAL HEADLAMP ASS'Y - Call your local BRP dealership | Includes 43 to 45

710000712

Unavailable

41

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

42

BULB - Call your local BRP dealership

710000762

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Spring

517168600

Unavailable

45

Washer M5

250200025

Unavailable

46

FRONT STEERING COVER ASS'Y - Call your local BRP dealership | Traxter STD 5 Speed / Includes 37 to 48

709400334

Unavailable

47

Washer M5

250200025

Unavailable

48

Light Stand Ass'y | Includes 40 to 41

709400296

Unavailable

49

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

50

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

51

CENTRAL HEADLAMP ASS'Y - Call your local BRP dealership | Includes 43 to 45

710000712

Unavailable

52

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

53

BULB - Call your local BRP dealership

710000762

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

Spring

517168600

Unavailable

56

Washer M5

250200025

Unavailable

57

Torx Screw K50 X 16

250000720

Unavailable
