01- Engine And Engine Support

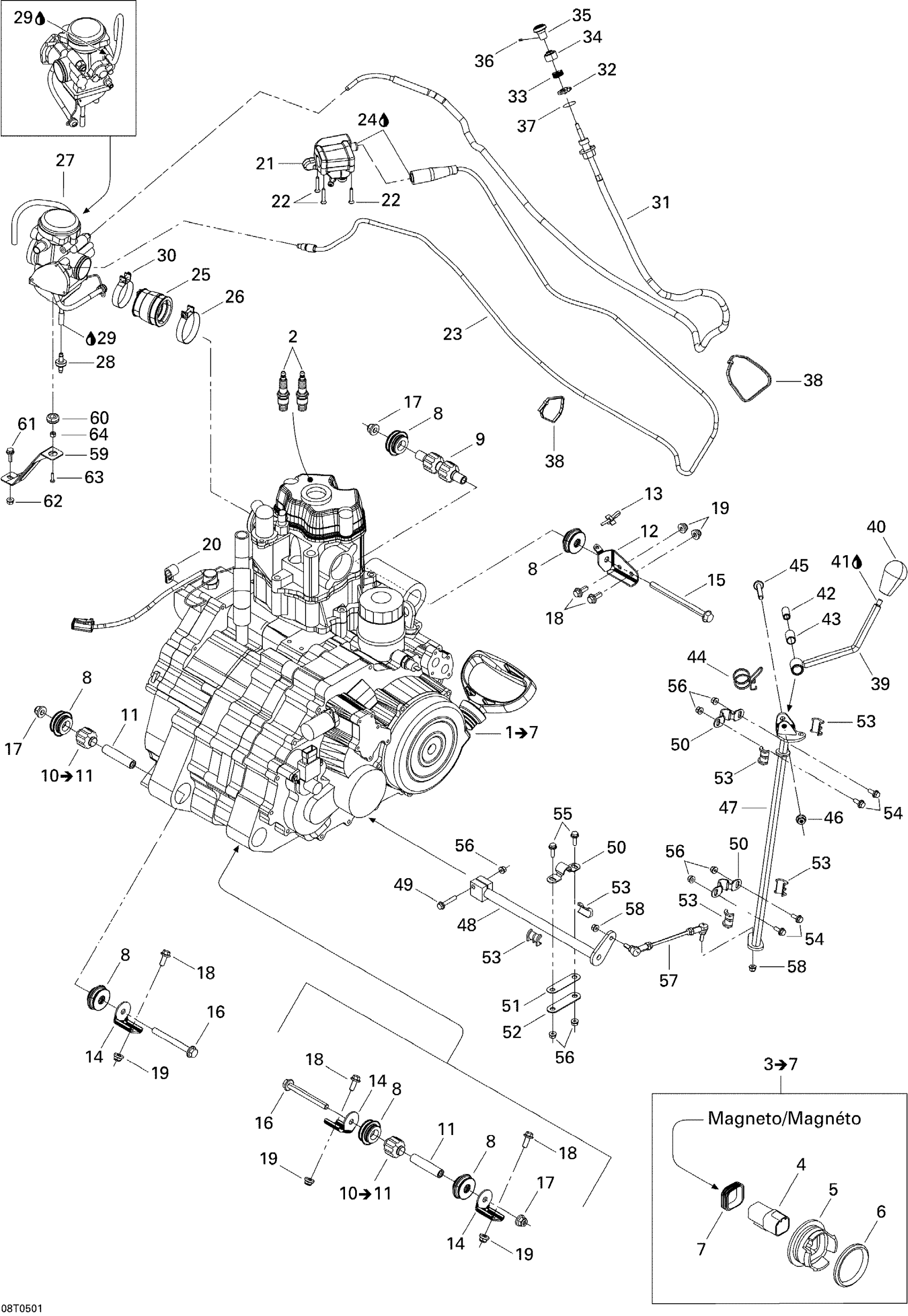

Can-Am Traxter Max Std & Max XT, 2005 01- Engine And Engine Support Diagram
#
1
Rotax 4 Strokes Engine «511» | Includes 1 to 7
707000041
Unavailable
2
Spark Plug, NGK/DR8EA
707000008
Unavailable
3
Adaptor Ass'y | Includes 3 to 7
707000031
Unavailable
4
Male Terminal Housing, 6 Circuits
710001539
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Gasket
293300033
Unavailable
7
Gasket
293200055`
Unavailable
8
Anti-Vibration Mount
707000094
Unavailable
9
ENGINE SUPPORT BUSHING - Call your local BRP dealership
707000019
Unavailable
10
Support Bushing | Includes 10 to 11
707000030
Unavailable
11
RH LOWER BUSHING - Call your local BRP dealership
707000004
Unavailable
12
Front Engine Bracket, Black
707000082
Unavailable
13
Tie-Rap 173 mm
293750009
Unavailable
14
Engine Bracket
705200197
Unavailable
15
Hex. Flange Screw M10 X 140
230604044
Unavailable
16
HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership
207609544
Unavailable
17
Hex. Flange Elastic Nut M10
233201414
Unavailable
18
Hex. Flange Screw M8 X 20
207682044
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
Hose Retainer 13 mm
705600232
Unavailable
21
THROTTLE HANDLE - Call your local BRP dealership | 2X4
707000370
Unavailable
22
Socket Head Screw M5 X 25
205052588
Unavailable
23
THROTTLE CABLE - Call your local BRP dealership
707000311
Unavailable
24
CABLE LUBRICANT, 400 G - Call your local BRP dealership
293600041
Unavailable
25
CARBURATOR ADAPTOR - Call your local BRP dealership
707000247
Unavailable
26
Gemi Clamp
293650157
Unavailable
27
Carburator
707000363
Unavailable
28
Check Valve
275500398
Unavailable
29
Glue Tube, Loctite 454, 20 G
413708300
Unavailable
30
Gemi Clamp
293650156
Unavailable
31
CHOKE CABLE - Call your local BRP dealership
707000427
Unavailable
32
D SHAPE WASHER - Call your local BRP dealership
707000067
Unavailable
33
HOLDER CAP - Call your local BRP dealership
707000087
Unavailable
34
Rubber Cap
707000088
Unavailable
35
BUTTON - Call your local BRP dealership
707000089
Unavailable
36
PHILLIPS SCREW M3 X 5 - Call your local BRP dealership
250000108
Unavailable
37
O-RING - Call your local BRP dealership
293300075
Unavailable
38
Tie-Rap 180 mm
414115200
Unavailable
39
LEVER ASS'Y - Call your local BRP dealership
707000010
Unavailable
40
LEVER BUTTON - Call your local BRP dealership
705500022
Unavailable
41
Loctite 243, 10 ml
293800060
Unavailable
42
BUSHING - Call your local BRP dealership
705500150
Unavailable
43
Adjuster Bushing
705500193
Unavailable
44
LEVER SPRING - Call your local BRP dealership
705500024
Unavailable
45
Hex. Flange Screw M8 X 50
207685044
Unavailable
46
Hex. Flange Elastic Nut M8
233281414
Unavailable
47
Upper Tube, Black
705500358
Unavailable
48
Lower Tube
705500431
Unavailable
49
Hex. Flange Screw M6 X 35
207663544
Unavailable
50
RETAINER CLAMP - Call your local BRP dealership
705500041
Unavailable
51
Shim 1.0 mm
707000080
Unavailable
52
Shim 2.0 mm
707000081
Unavailable
53
Half Ring
705500033
Unavailable
54
Hex. Flange Screw M6 X 16
207661644
Unavailable
55
Hex. Flange Screw M6 X 20
207662044
Unavailable
56
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
57
Tie Rod Ass'y
707000068
Unavailable
58
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
59
Carburator Support
707200159
Unavailable
60
Grommet
709000582
Unavailable
61
Hex. Flange Screw M6 X 20
207662044
Unavailable
62
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
63
Hex. Screw M4 X 16, Scotch Grip
207341644
Unavailable
64
Spacer
707000181
Unavailable
