- Traxter Max Std & Max XT, 2005
01- Crankcase

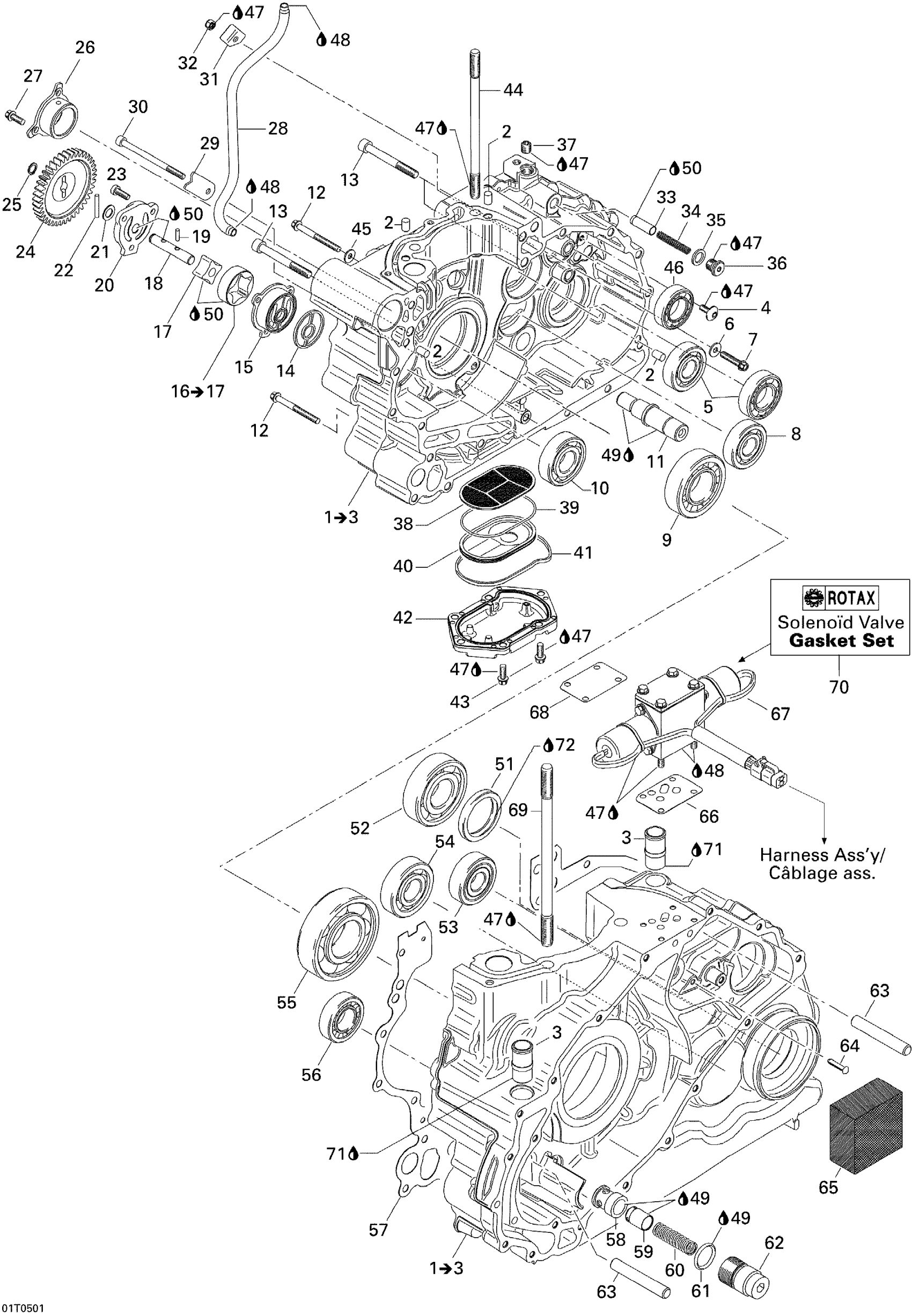

Can-Am Traxter Max Std & Max XT, 2005 01- Crankcase Diagram
#
1
Crankcase Ass‘Y | Includes 1 to 2
420295881
Unavailable
2
Center Pin 8 X 12
420632010
Unavailable
3
TUBE - Call your local BRP dealership
420224260
Unavailable
4
SCREW M6 X 13 - Call your local BRP dealership
420241531
Unavailable
5
Ball Bearing 6205
420232764
Unavailable
6
Washer
420627400
Unavailable
7
HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership
420241941
Unavailable
8
Ball Bearing 6304E
420932095
Unavailable
9
ROLLER BEARING - Call your local BRP dealership
420232490
Unavailable
10
BALL BEARING 63/22 - Call your local BRP dealership
420632200
Unavailable
11
INTERMEDIATE GEAR SHAFT - Call your local BRP dealership
420220570
Unavailable
12
Hex. Flange Screw M6 X 65
420640351
Unavailable
13
SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership
420841991
Unavailable
14
RUBBER RING - Call your local BRP dealership
420650960
Unavailable
15
Ring Housing
420610140
Unavailable
16
OIL PUMP ROTOR ASS'Y - Call your local BRP dealership | Includes 16 to 17
420956275
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Oil Pump Shaft
420220592
Unavailable
19
Needle Pin
420232731
Unavailable
20
OIL PUMP COVER - Call your local BRP dealership
420211852
Unavailable
21
Thrust Washer
420827590
Unavailable
22
NEEDLE PIN - Call your local BRP dealership
420232971
Unavailable
23
SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership
420240404
Unavailable
24
Oil Pump Gear, 40 Teeth
420635030
Unavailable
25
Snap Ring
420245330
Unavailable
26
Ring Housing
420610131
Unavailable
27
Hex. Flange Screw M6 X 16
420241751
Unavailable
28
Oil Pipe
420224622
Unavailable
29
Holding Strip
420627437
Unavailable
30
Socket Head Screw M6 X 90
420241481
Unavailable
31
Holding Strip
420627432
Unavailable
32
Elastic Stop Nut M6
232561414
Unavailable
33
PISTON - Call your local BRP dealership
420256590
Unavailable
34
COMPRESSION SPRING - Call your local BRP dealership
420238020
Unavailable
35
Aluminum Sealing Ring
420250016
Unavailable
36
Plug Screw M12 x 1,5
420241701
Unavailable
37
PLUG SCREW M12 X 1.5 - Call your local BRP dealership
420840651
Unavailable
38
OIL SIEVE - Call your local BRP dealership
420256572
Unavailable
39
O-RING - Call your local BRP dealership
420931385
Unavailable
40
OIL COLLECTOR - Call your local BRP dealership
420256652
Unavailable
41
RUBBER RING - Call your local BRP dealership
420650950
Unavailable
42
Oil Sieve Cover
420211941
Unavailable
43
HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership
420241861
Unavailable
44
STUD M10 X 190 - Call your local BRP dealership
420241670
Unavailable
45
Oil Seal
420230150
Unavailable
46
Bearing_Ball - Call your local BRP dealership
420932650
Unavailable
47
Loctite 243, 10 ml
293800060
Unavailable
48
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
49
Molykote G-N, 50 g
420297433
Unavailable
50
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
51
OIL SEAL - Call your local BRP dealership
420650700
Unavailable
52
Ball Bearing
420932822
Unavailable
53
Ball Bearing
420932816
Unavailable
54
Ball Bearing 6304E
420932095
Unavailable
55
BALL BEARING - Call your local BRP dealership
420432120
Unavailable
56
ROLLER BEARING - Call your local BRP dealership
420232280
Unavailable
57
GASKET, CRANKCASE - Call your local BRP dealership
420650422
Unavailable
58
SEAT VALVE SLEEVE - Call your local BRP dealership
420256602
Unavailable
59
Piston Valve
420256638
Unavailable
60
COMPRESSION SPRING - Call your local BRP dealership
420938785
Unavailable
61
O-Ring
420250050
Unavailable
62
Plug Screw M24 X 1.5
420640790
Unavailable
63
Needle Pin
420229475
Unavailable
64
Groove Pin M4 X 20
420229170
Unavailable
65
OIL SEPARATING FOAM - Call your local BRP dealership
420256720
Unavailable
66
SOLENOID VALVE GASKET - Call your local BRP dealership
420650630
Unavailable
67
Solenoïd Valve
420256540
Unavailable
68
Gasket
420650636
Unavailable
69
STUD M10 X 190 - Call your local BRP dealership
420241670
Unavailable
70
SOLENOID VALVE GASKET SET - Call your local BRP dealership
420296375
Unavailable
71
Sealant Loctite 648
219703000
Unavailable
72
Grease, Super Lube
293550030
Unavailable
