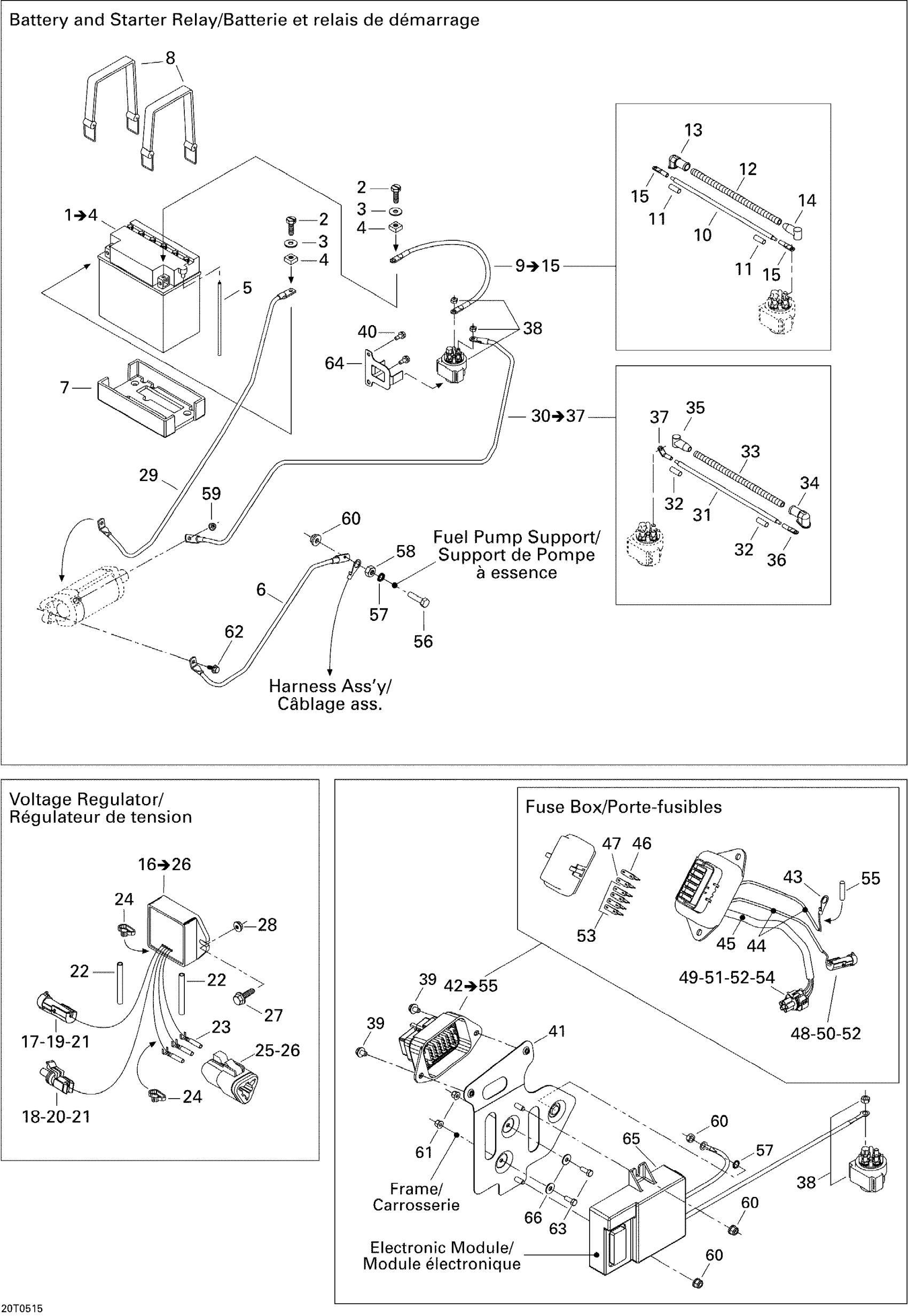

Can-Am Traxter Max CVT 650, 2005 10- Electrical System Diagram
#
1
Battery 19A | Includes 5 to 8
278001756
Unavailable
2
Hex. Screw M6 X 16
207161644
Unavailable
3
FLAT WASHER 6 MM - Call your local BRP dealership
211200018
Unavailable
4
Hex. Nut M6
232061414
Unavailable
5
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
6
ENGINE GROUND CABLE - Call your local BRP dealership
710000177
Unavailable
7
LOWER BATTERY PAD - Call your local BRP dealership
278001976
Unavailable
8
Retainer Strap
293850097
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Cable Battery, no 6, meter)
278001690
Unavailable
11
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
12
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
13
Protector Cap
710000495
Unavailable
14
Protector Cap
710000526
Unavailable
15
Open Barrel
710000530
Unavailable
16
VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 15 to 25
710000449
Unavailable
17
Male Terminal | XT Models
278000222
Unavailable
18
Female Terminal
278000223
Unavailable
19
Female Housing, 1 Circuit
278000161
Unavailable
20
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
21
Wire Seal
278000218
Unavailable
22
LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership
409901300
Unavailable
23
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
24
Tie Wrap 94 mm | 4X4
293750001
Unavailable
25
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
Unavailable
26
Female Lock
409207200
Unavailable
27
Hex. Flange Screw M6 X 25
207662544
Unavailable
28
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
29
Engine Ground Cable
710000211
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
31
Cable Battery, no 6, meter)
278001690
Unavailable
32
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
33
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
34
Protector Cap
710000495
Unavailable
35
Protector Cap
710000526
Unavailable
36
Open Barrel
710000530
Unavailable
37
Terminal
710000532
Unavailable
38
Starter Relay
710000344
Unavailable
39
Hex. Forming Screw M6 X 10
210261050
Unavailable
40
Hex. Self-threaded Screw 1/4"-20 X 3/4"
250000061
Unavailable
41
Bracket Module, Black
710000443
Unavailable
42
FUSE HOLDER ASS'Y - Call your local BRP dealership | Includes 42 to 53
710000579
Unavailable
43
Open Barrel Terminal
278001392
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
46
Fuse, 30 Amperes
410917200
Unavailable
47
Fuse, 20 Amperes
409003900
Unavailable
48
Male Terminal
409004300
Unavailable
49
Female Terminal
409007300
Unavailable
50
Female Housing, 1 Circuit
278000161
Unavailable
51
Wire Seal
278000218
Unavailable
52
Wire Seal
710000048
Unavailable
53
Fuse, 15 Amperes
278000343
Unavailable
54
Female Housing, 5 Circuit
710000106
Unavailable
55
SHRINK TUBING - Call your local BRP dealership
710000482
Unavailable
56
Hex. Screw M6 X 25
207162544
Unavailable
57
External Serrated Lock Washer 6 mm
234461608
Unavailable
58
Hex. Nut M6
232061414
Unavailable
59
Hex. Flange Nut M6
233061414
Unavailable
60
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
61
Hex. Flange Elastic Nut M5
233251414
Unavailable
62
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
63
Hex. Screw M5 X 14
207151444
Unavailable
64
Solenoid Support, Black
710000300
Unavailable
65
ELECTRONIC MODULE - Call your local BRP dealership
710000596
Unavailable
66
Flat Washer M5
234051410
Unavailable
