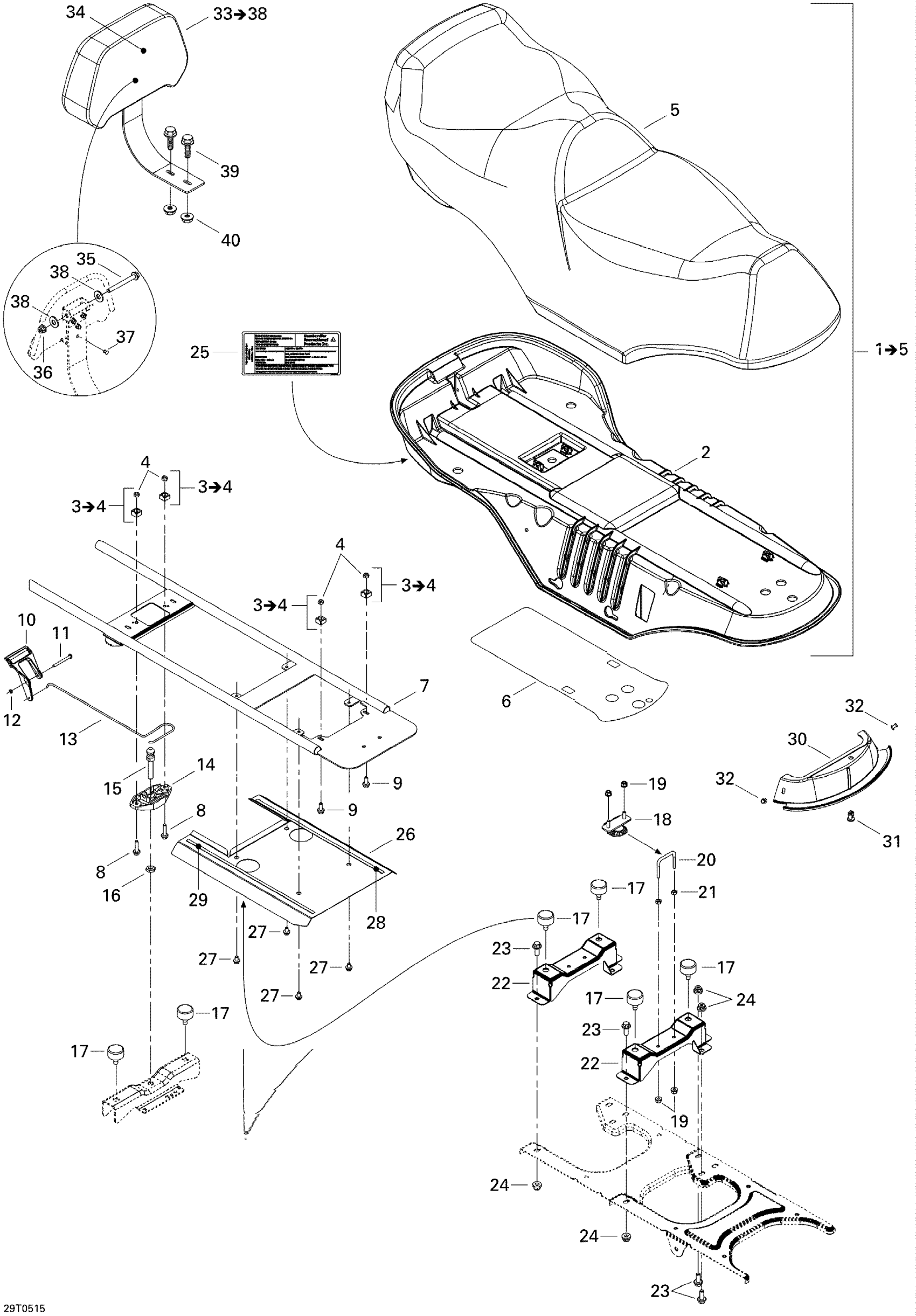

Can-Am Traxter Max CVT 650, 2005 09- Seat Diagram
#
1
Seat Ass'y | Includes 1 to 5, Viper Red
708000390
Unavailable
1
Seat Ass'y | Includes 1 to 5, Laurentian Green
708000400
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
4
Hex. Nut M6
232061600
Unavailable
5
Seat Cover | Viper Red
708000391
Unavailable
5
Seat Cover | Laurentian Green
708000401
Unavailable
6
Reflective Sheet
708000434
Unavailable
7
Seat Support Black
708000354
Unavailable
8
Hex. Flange Screw M6 X 25
207662544
Unavailable
9
Hex. Flange Screw M6 X 16
207661644
Unavailable
10
Lever Latch
708000010
Unavailable
11
SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership
293150062
Unavailable
12
Push Nut
389804300
Unavailable
13
SPRING - Call your local BRP dealership
708000015
Unavailable
14
Latch Base
708000034
Unavailable
15
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
16
Hex. Jam Nut M10
232100600
Unavailable
17
Rubber Stopper
708000758
Unavailable
18
Seat Hook
291001479
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
20
SEAT HOOK - Call your local BRP dealership
291000468
Unavailable
21
Hex. Nut M6
232061600
Unavailable
22
Seat Support
708000088
Unavailable
23
Hex. Flange Screw M8 X 20
207682044
Unavailable
24
Hex. Flange Elastic Nut M8
233281414
Unavailable
25
Emission Label | Traxter 650 CVT
704900878
Unavailable
26
Heatshield
708000326
Unavailable
27
Hex. Forming Screw M6 X 10
210261050
Unavailable
28
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
29
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
30
HEAT SHIELD - Call your local BRP dealership
708000274
Unavailable
31
Tuflok Plastic Rivet
293150230
Unavailable
32
Avdel Rivet
293150027
Unavailable
33
Backrest Ass'y | Includes 33 To 38
708000407
Unavailable
34
Backrest Cover
708000408
Unavailable
35
Hex. Screw M8 X 95
207089544
Unavailable
36
Hex. Flange Elastic Nut M8
233281414
Unavailable
37
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
38
Hardened Washer
706200281
Unavailable
39
Hex. Flange Screw M8 X 25
207682544
Unavailable
40
Hex. Flange Elastic Nut M8
233281414
Unavailable
