- Traxter Max CVT 650, 2005
03- Magneto

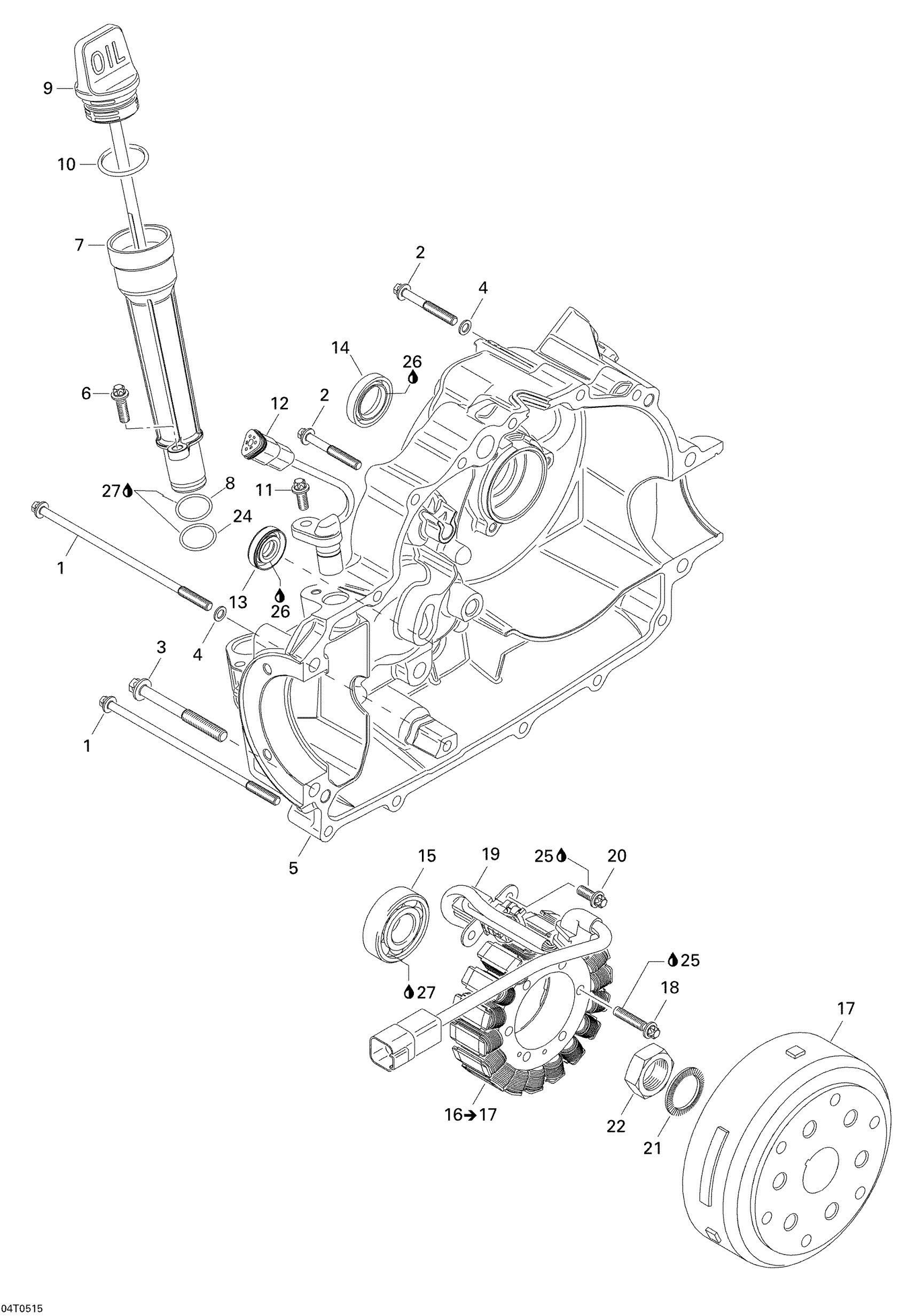

Can-Am Traxter Max CVT 650, 2005 03- Magneto Diagram
#
Description
Price
1
Torx Flange Screw M6 X 130
420440982
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Torx Flange Screw M8 X 65
420440402
Unavailable
4
Sealing Washer
404146600
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Torx Flange Screw M6 X 25
420440234
Unavailable
7
Oil Filter Tube
420956981
Unavailable
8
O-RING - Call your local BRP dealership
420630430
Unavailable
9
OIL DIPSTICK - Call your local BRP dealership
420956895
Unavailable
10
O-ring
420430590
Unavailable
11
Torx Flange Screw M6 X 16
420440162
Unavailable
12
Speed Sensor
420265723
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Generator | Includes 16 To 17
420296630
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Torx Flange Screw M6 X 35
420440274
Unavailable
19
Cable Cover
420260870
Unavailable
20
Torx Flange Screw M6 X 16
420440162
Unavailable
21
Disc
420845510
Unavailable
22
Hex. Nut M24
420242012
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
O-Ring
420250057
Unavailable
25
Loctite 243, 10 ml
293800060
Unavailable
26
Grease, Super Lube
293550030
Unavailable
27
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
