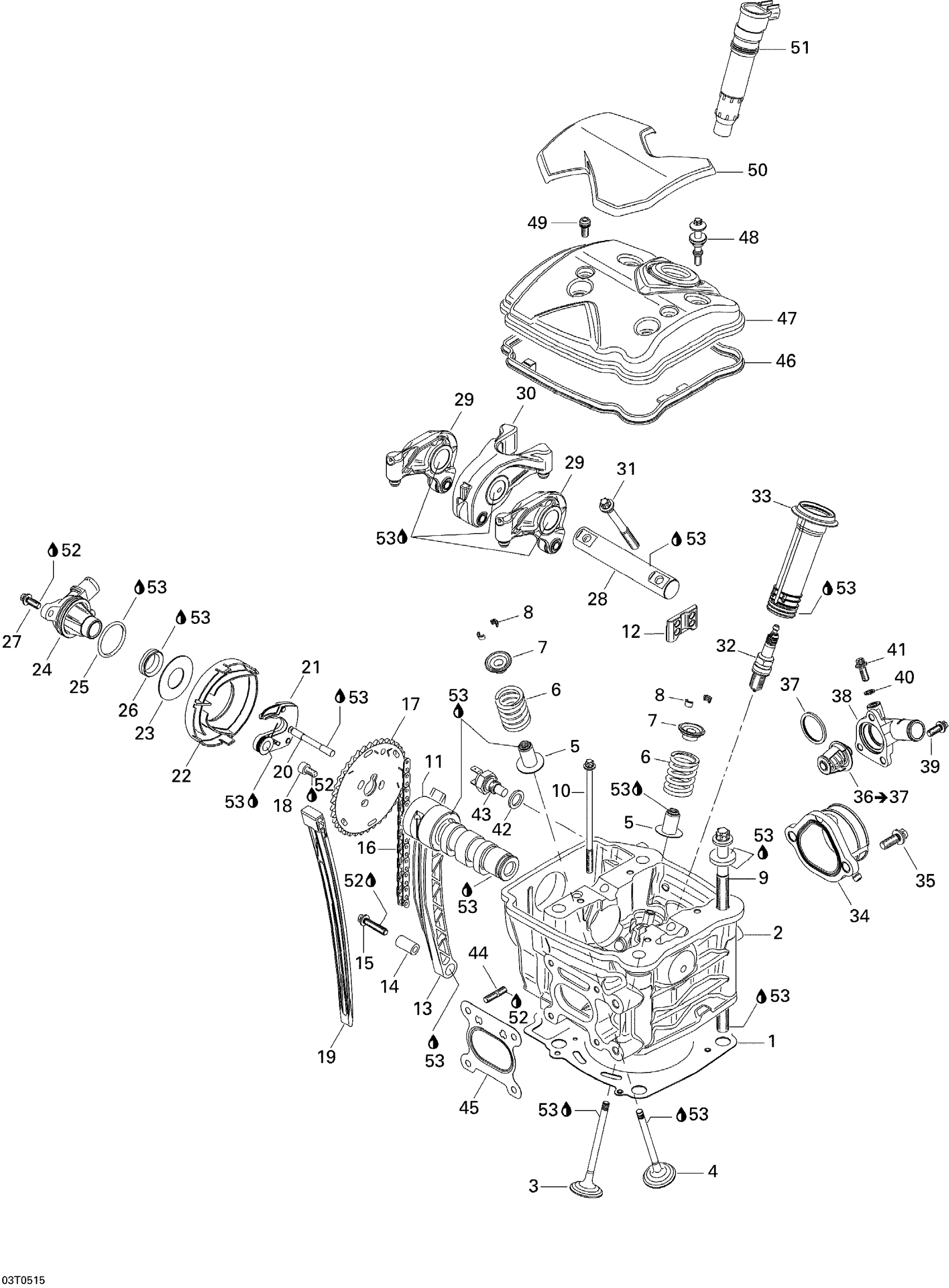

Can-Am Traxter Max CVT 650, 2005 01- Cylinder Head Diagram

#

Description
Price

1

CYLINDER HEAD GASKET - Call your local BRP dealership

420950660

Unavailable

2

CYLINDER HEAD ASS'Y - Call your local BRP dealership

420613477

Unavailable

3

Intake Valve 38MM

420253163

Unavailable

4

Exhaust Valve 31 mm

420254027

Unavailable

5

Valve Steam Seal

420630202

Unavailable

6

Valve Spring

420238180

Unavailable

7

Valve Spring Retainer

420254283

Unavailable

8

Valve Cotter

420253645

Unavailable

9

TORX SCREW M11 X 215 - Call your local BRP dealership

420641020

Unavailable

10

Torx Flange Screw M6 X 105

420440612

Unavailable

11

CAMSHAFT - Call your local BRP dealership | Traxter 650 CVT

420220774

Unavailable

12

Camshaft Guide

420851694

Unavailable

13

Chain Tension Guide

420236541

Unavailable

14

DISTANCE SLEEVE - Call your local BRP dealership

420247100

Unavailable

15

Torx Flange Screw M6 X 35

420440274

Unavailable

16

Camshaft Chain

420297957

Unavailable

17

Camshaft Sprocket, 38 Teeth

420254302

Unavailable

18

Allen Screw M6 X 12

420840032

Unavailable

19

Chain Guide

420236501

Unavailable

20

DEKO SHAFT - Call your local BRP dealership

420220792

Unavailable

21

Centrifugal Weight

420231061

Unavailable

22

Cover

420660037

Unavailable

23

Thrust Washer

420627494

Unavailable

24

CAMSHAFT COVER - Call your local BRP dealership

420610272

Unavailable

25

O-RING - Call your local BRP dealership

420950872

Unavailable

26

V-Ring 20S FPM Blow By Valve

420630125

Unavailable

27

Hex. Flange Screw M6 X 16

420241751

Unavailable

28

ROCKER ARM SHAFT ASS'Y - Call your local BRP dealership

420854599

Unavailable

29

Rocker Arm, Exhaust

420254329

Unavailable

30

Rocker Arm, Inner

420254316

Unavailable

31

Torx Screw M8 X 72

420641080

Unavailable

32

Spark Plug, NGK DCP-R8E

715900637

Unavailable

33

Spark Plug Pipe

420851754

Unavailable

34

Rubber Flange

420267270

Unavailable

35

Torx Flange Screw M8 X 25

420440372

Unavailable

36

Thermostat | Includes 53 to 54

420222495

Unavailable

37

Thermostat Gasket

420650300

Unavailable

38

Thermostat Cover

420222660

Unavailable

39

Torx Flange Screw M6 X 16

420440162

Unavailable

40

Sealing Washer

404146600

Unavailable

41

Torx Flange Screw M6 X 16

420440162

Unavailable

42

Copper Washer

420250640

Unavailable

43

Temperature Switch

420897938

Unavailable

44

Stud M6 X 16

420240010

Unavailable

45

GASKET - Call your local BRP dealership

420950680

Unavailable

46

Sealing Ring

420630071

Unavailable

47

Valve Cover

420610185

Unavailable

48

Hex Screw M6 X 30

420440568

Unavailable

49

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

50

Valve Cover

420660201

Unavailable

51

IGNITION COIL - Call your local BRP dealership

420664025

Unavailable

52

Loctite 243, 10 ml

293800060

Unavailable

53

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
