01- Belt and Engine Pulley System

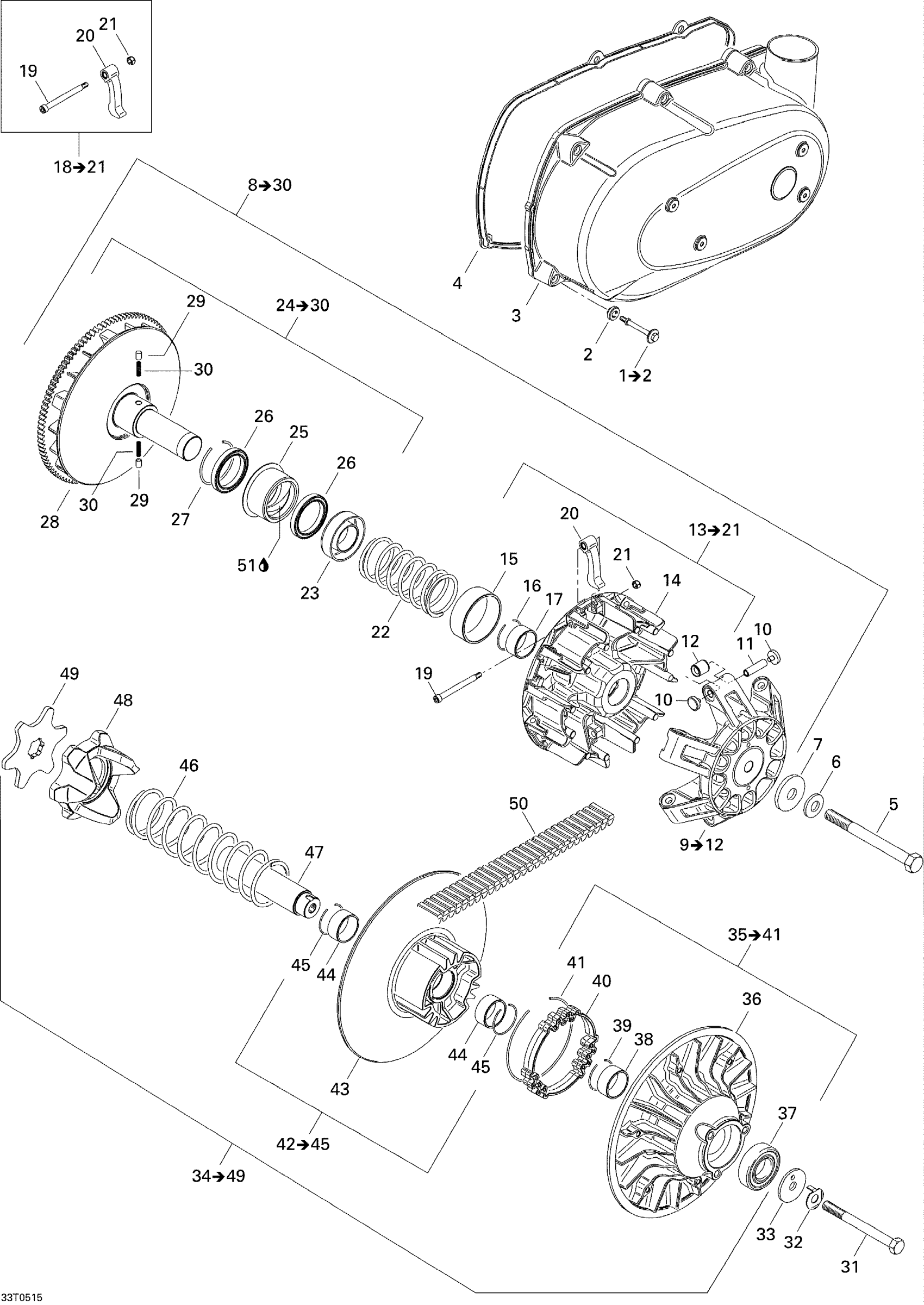

Can-Am Traxter Max CVT 650, 2005 01- Belt and Engine Pulley System Diagram
#
1
DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership
420240906
Unavailable
2
Rubber Bushing
420260050
Unavailable
3
TRANSMISSION COVER - Call your local BRP dealership
420610350
Unavailable
4
GASKET - Call your local BRP dealership
420630110
Unavailable
5
Hex. Screw M12 X 140
420641859
Unavailable
6
Spring Washer
420627768
Unavailable
7
Thrust Washer
420627920
Unavailable
8
CVT Drive Pulley Ass'y | Traxter 650 CVT, Includes 8 To 30
420684340
Unavailable
9
Governor Cup Ass'y | Includes 6 to 9
420280522
Unavailable
10
Slider Shoe Set
420281296
Unavailable
11
Roller Axle
417223257
Unavailable
12
Roller
417223767
Unavailable
13
Outer Half Ass'y | Traxter 650 CVT, Includes 13 To 21
420280147
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
CENTRIFUGAL LEVER KIT - Call your local BRP dealership | Traxter 650 CVT, Includes 18 To 21
420248408
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
NUT M5 - Call your local BRP dealership
420942025
Unavailable
22
Compression Spring | Traxter 650 CVT
420238164
Unavailable
23
SPRING SEAT - Call your local BRP dealership
420627573
Unavailable
24
Inner Half Ass'y | Includes 24 To 30
420281395
Unavailable
25
Drive Pulley Clutch
420257195
Unavailable
26
Ball Bearing
420632377
Unavailable
27
Retaining Ring
420245951
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
Spring Sleeve
420229577
Unavailable
30
Spring
420239134
Unavailable
31
Hex. Screw M10 X 110
420441485
Unavailable
32
TAB WASHER - Call your local BRP dealership
420245925
Unavailable
33
Thrust Washer
420627590
Unavailable
34
CVT Driven Pulley Ass'y | Includes 34 To 49
420684350
Unavailable
35
Outer Half Pulley Ass'y | Includes 27 to 32
420280178
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
Ball Bearing
420932421
Unavailable
38
Not Available As Spare Part - Friction Washer
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
40
TORQUE GEAR - Call your local BRP dealership
420660120
Unavailable
41
Retaining Ring
420245911
Unavailable
42
DRIVEN PULLEY INNER HALF ASS'Y - Call your local BRP dealership | Includes 42 To 45
420280186
Unavailable
43
Not Available As Spare Part - Friction Washer
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
46
Compression Spring, Driven Pulley
420238173
Unavailable
47
Driven Pulley Shaft
420220913
Unavailable
48
DRIVEN PULLEY CAM - Call your local BRP dealership
420280191
Unavailable
49
Cam Plate
420627586
Unavailable
50
V-belt | Traxter 650 CVT
715900023
Unavailable
51
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
