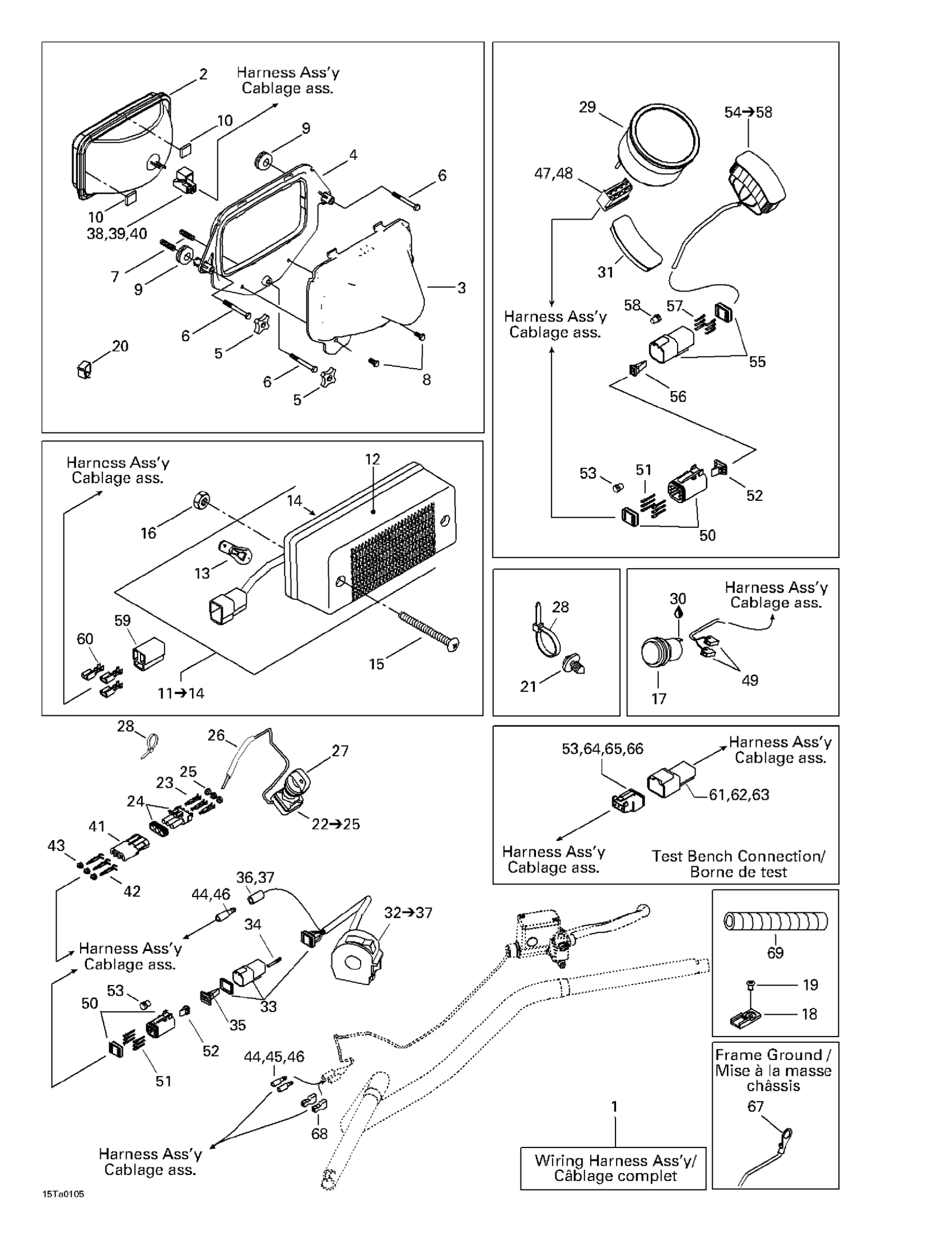

Can-Am Traxter Footshift, Red/rouge, 2001 Main Harness And Electrical Accessories Diagram

#

Description
Price

1

Harness Ass'y (Not Shown)

710000165

Unavailable

2

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

3

Protector

705000023

Unavailable

4

Headlamp Support

705000182

Unavailable

5

Handle

572106600

$9.31

6

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

7

Spring

517168600

$6.91

8

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

9

Grommet

709000582

$4.38

10

Rubber Pad

293830088

Unavailable

11

Tail Light Housing

710000102

Unavailable

12

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

13

Bulb

520000758

$7.49

14

GASKET - Call your local BRP dealership

710000129

Unavailable

15

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

16

Hex. Flange Elastic Nut M5

233251414

$1.66

17

Outlet Power Kit, 12 Volts

861507200

$30.52

18

Clip

270000141

$8.33

19

Pop Rivet 3/16"

390402400

$0.25

20

Clip

414227300

$1.45

21

Mount Dart

293730040

$0.86

22

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

23

Female Terminal

278000223

$2.55

24

Male Housing, 3 Circuits

278000273

$7.59

25

Wire Seal

278000218

$3.48

26

Protector Tube

710000171

Unavailable

27

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

27

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

28

Tie-Rap 180 mm

414115200

$0.09

28

Tie Wrap 142 mm

293750002

$0.88

28

Tie-Rap 180 mm

414115200

$0.09

28

Tie Wrap 368 mm

293750008

$0.85

29

Speedometer (MPH) (US)

710000021

Unavailable

29

Speedometer (KM/H)

710000037

Unavailable

29

Speedometer

710000198

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

31

LIGHT COVER - Call your local BRP dealership

709400102

Unavailable

32

Multi-function Switch | Includes 32 - 37. 7439/7440/7473 (Red/Rouge). .

710000196

Unavailable

33

Male Terminal Housing, 6 Circuits

409015200

Unavailable

34

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

35

Male Lock, 6 Circuits

409014600

Unavailable

36

Male Terminal

278000230

$3.48

37

Insulated Sheath

278001008

$3.20

38

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710000026

Unavailable

39

Female Terminal

710000027

Unavailable

40

Female Lock, 2 Circuits

710000028

Unavailable

41

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

42

Male Terminal

409004300

$5.46

43

Wire Seal

278000218

$3.48

44

Female Terminal | DS 650 X

278001009

$2.55

45

Insulated Sheath

278000770

$7.60

46

Insulated Sheath

278001007

$3.22

47

Female Terminal

710000036

Unavailable

48

Female Housing (8 Circuits)

710000035

Unavailable

49

Female Terminal

710000038

$4.60

50

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

51

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

52

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

53

PLUG - Call your local BRP dealership

515175303

Unavailable

54

RH Warning Lamp

710000007

Unavailable

55

Male Terminal Housing, 6 Circuits

409015200

Unavailable

56

Male Lock, 6 Circuits

409014600

Unavailable

57

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

58

PLUG - Call your local BRP dealership

515175303

Unavailable

59

Female Housing

409204300

Unavailable

60

Female Terminal

561503100

Unavailable

61

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

Unavailable

62

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

63

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

Unavailable

64

FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership

515175249

Unavailable

65

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

66

Female Lock, 3 Circuits

515175248

Unavailable

67

Open Barrel Terminal

278001392

$4.12

68

Female Terminal

710000082

$6.03

69

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

69

Tubing 6 Mm 3000Mm Long

219704425

$13.14

69

Was 409901800 Tubing (13 mm)

219704400

$9.40

69

Was 409901600 Tubing 19mm

219704398

$89.97

69

Tubing 16 Mm 1000Mm Long

219704408

$6.23
