- Traxter Footshift, Red/rouge, 2001
10- Battery And Electrical Accessories

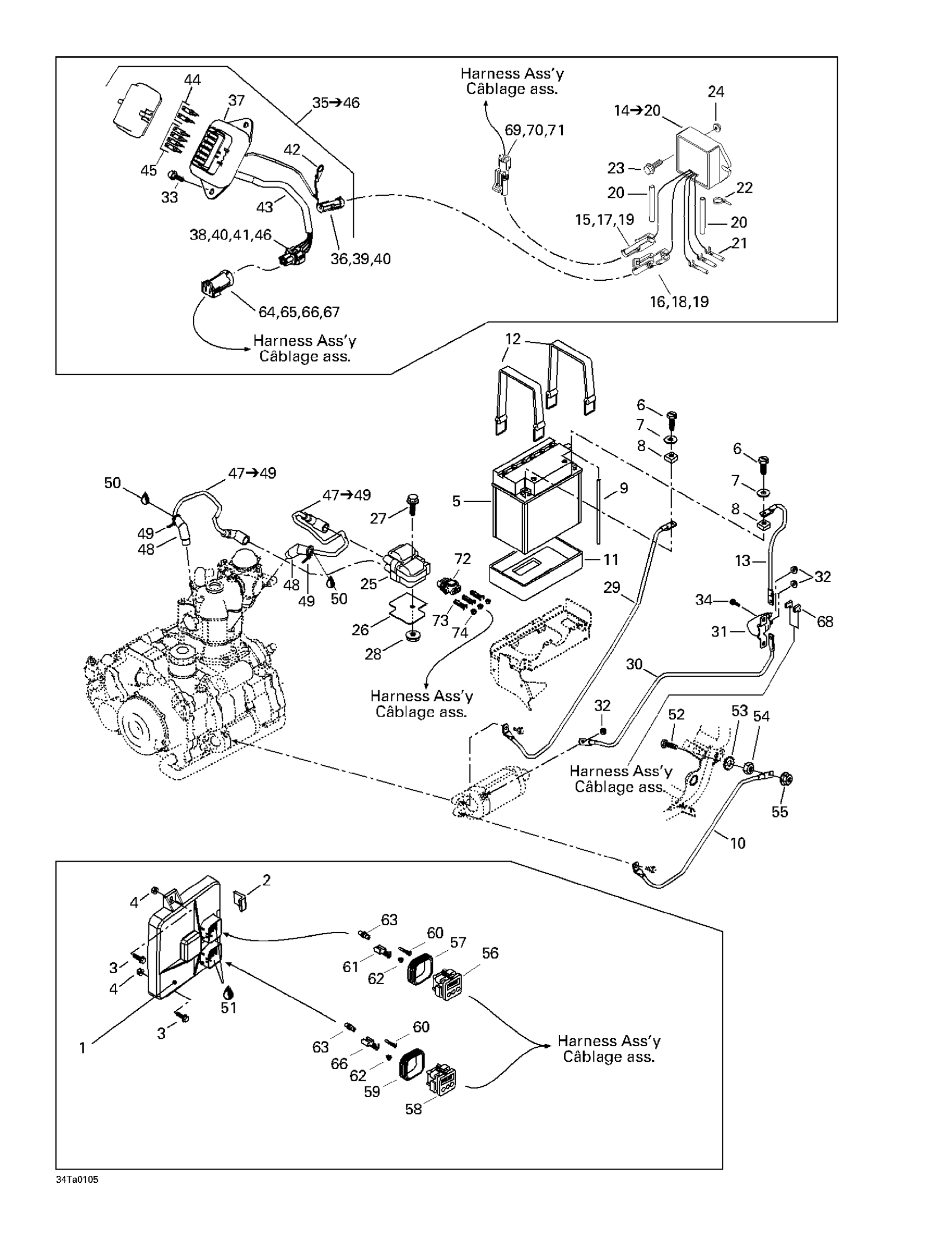

Can-Am Traxter Footshift, Red/rouge, 2001 10- Battery And Electrical Accessories Diagram
#
1
Electronic Module
710000164
Unavailable
2
MODULE PROTECTOR - Call your local BRP dealership
278001166
Unavailable
3
Hex. Flange Screw M6 X 20
207662044
Unavailable
4
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
5
Battery 19A | Includes 5 to 8
278001756
Unavailable
6
Hex. Screw M6 X 16
207161644
Unavailable
7
FLAT WASHER 6 MM - Call your local BRP dealership
211200018
Unavailable
8
Hex. Nut M6
232061414
Unavailable
9
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
10
Battery Ground Cable
710000022
Unavailable
11
Battery Lower Pad
278001234
Unavailable
12
Retainer Strap
293850097
Unavailable
13
Positive Cable
710000011
Unavailable
14
VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 18 to 26
710000100
Unavailable
15
Male Terminal | XT Models
278000222
Unavailable
16
Female Terminal
278000223
Unavailable
17
Female Housing, 1 Circuit
278000161
Unavailable
18
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
19
Wire Seal
278000218
Unavailable
20
LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership
409901300
Unavailable
21
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
22
Tie Wrap 94 mm | 4X4
293750001
Unavailable
23
Hex. Flange Screw M6 X 20
207662044
Unavailable
24
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
25
Ignition Coil
278001546
Unavailable
26
Insulator Pad
710000073
Unavailable
27
Hex. Flange Screw M6 X 50
207665044
Unavailable
28
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
29
Ground Cable
710000023
Unavailable
Engine Ground Cable
710000211
Unavailable
30
STARTER POSITIVE CABLE - Call your local BRP dealership
710000136
Unavailable
31
Starter Relay
515176011
Unavailable
32
Hex. Elastic Stop Nut M6
232561600
Unavailable
33
Hex. Flange Screw M6 X 16
210261650
Unavailable
34
Screw Hex. M6.3 x 19
210661940
Unavailable
35
Fuse Holder | Includes 27 - 38.
710000092
Unavailable
36
Male Terminal
409004300
Unavailable
37
Fuse Box
710000029
Unavailable
38
Female Terminal
409007300
Unavailable
39
Female Housing, 1 Circuit
278000161
Unavailable
40
Wire Seal
278000218
Unavailable
41
Wire Seal
710000048
Unavailable
42
Open Barrel Terminal
278001392
Unavailable
43
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
44
Fuse, 30 Amperes
410917200
Unavailable
Fuse, 20 Amperes
409003900
Unavailable
45
Fuse, 15 Amperes
278000343
Unavailable
46
Female Housing, 5 Circuit
710000106
Unavailable
47
Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57
703500744
Unavailable
48
Spark Plug Connector
420265248
Unavailable
49
Tie Wrap 94 mm | 4X4
293750001
Unavailable
50
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
51
*(Ormd) *Deoxit Aerosol *
293550034
Unavailable
52
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
53
External Serrated Lock Washer 6 mm
234461608
Unavailable
54
Hex. Nut M6
232061414
Unavailable
55
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
56
Male Terminal Housing, 26 Circuits
278001062
Unavailable
57
WIRE SEAL - Call your local BRP dealership
278001307
Unavailable
58
MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership
278001063
Unavailable
59
WIRE SEAL - Call your local BRP dealership
278001307
Unavailable
60
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
61
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
62
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
63
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
64
MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership
710000107
Unavailable
65
Male Terminal
409004300
Unavailable
66
Wire Seal
278000218
Unavailable
67
Wire Seal
710000048
Unavailable
68
Female Terminal
409010300
Unavailable
69
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
70
Female Terminal
409007300
Unavailable
71
Wire Seal
710000048
Unavailable
72
Male Housing, 3 Circuits
278000997
Unavailable
73
Female Terminal
278000998
Unavailable
74
Wire Seal
278000999
Unavailable
