05- Drive System, Rear

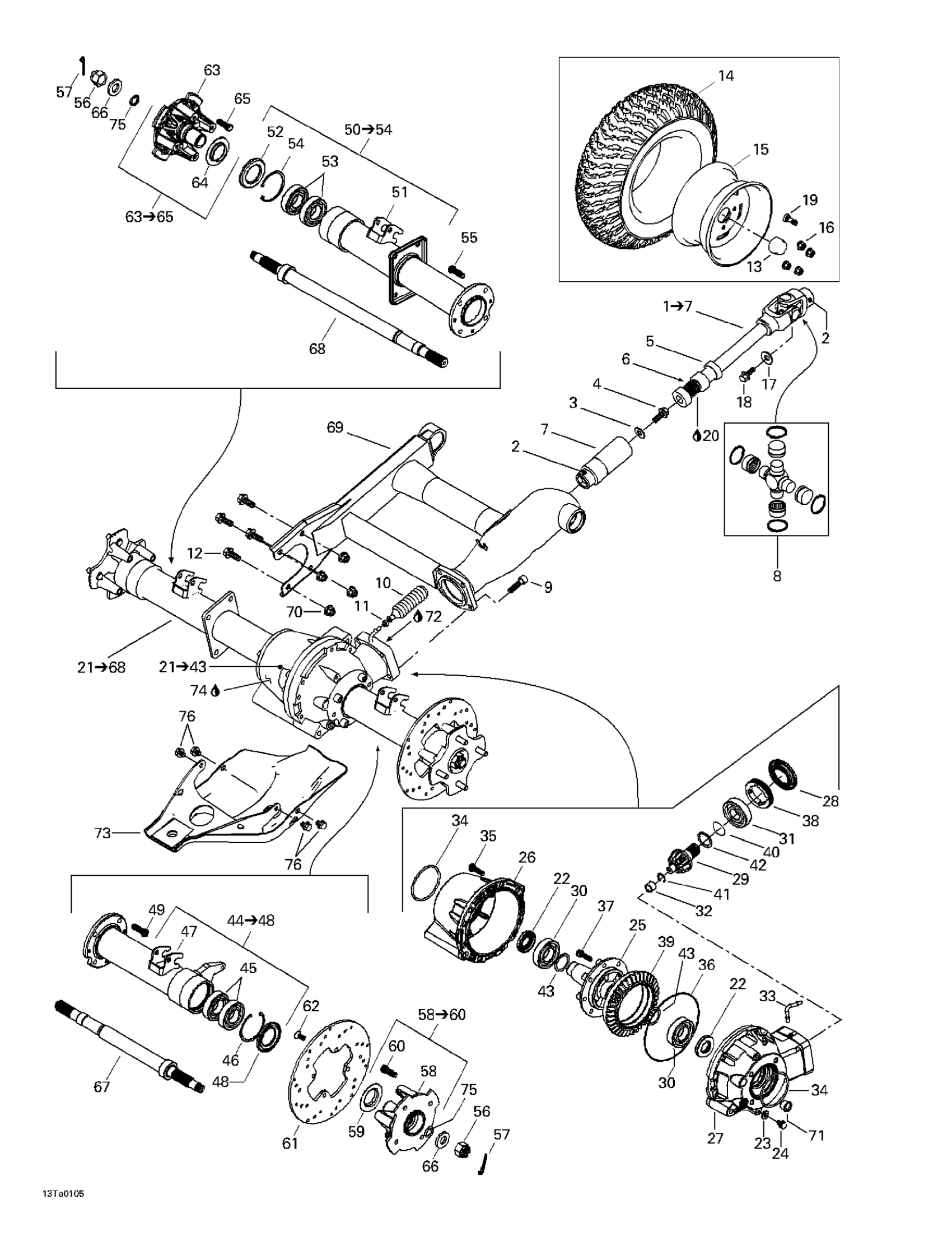

Can-Am Traxter Footshift, Red/rouge, 2001 05- Drive System, Rear Diagram
#
1
Rear Propeller Shaft Ass'y
703500007
Unavailable
2
Wear Ring | 4X4
705400036
Unavailable
3
Flat Washer M10 | 4X4
250200014
Unavailable
4
Flange Screw M10 X 16, Scotch Grip | 4X4
250000060
Unavailable
5
Sealing Ring
705500097
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Ens. Croix*U-Joint Cross Kit
715900325
Unavailable
9
Socket Head Screw M10 x 25 (Scotch Grip)
205502544
Unavailable
10
Rubber Bellow | 4X4
705400552
Unavailable
11
Tie Wrap 94 mm | 4X4
293750001
Unavailable
12
Hex. Flange Screw M10 X 25
207602544
Unavailable
13
WHEEL CAP - Call your local BRP dealership
705400012
Unavailable
14
Rear Tire
705500004
Unavailable
Rear Tire
705500314
Unavailable
15
Rear Rim, Grey
705500239
Unavailable
16
HEX. NUT - Call your local BRP dealership
705400013
Unavailable
17
Washer
211200041
Unavailable
18
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
19
Rim Valve With Cap
705400193
Unavailable
20
Graisse *Grease
293550062
Unavailable
21
Rigid Axle Ass'y | Includes 9 - 48.
705500157
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Gasket | 4X4
705401618
Unavailable
23
SEAL RING - Call your local BRP dealership
705500299
Unavailable
24
Drain Plug
705500298
Unavailable
25
Propulsion Spool
705500159
Unavailable
26
Differential Cap
705500013
Unavailable
27
Differential Carrier
705500014
Unavailable
28
Oil Seal | 4X4
705401481
Unavailable
29
GEAR (10 TEETH) - Call your local BRP dealership
705500076
Unavailable
30
Ball Bearing | 4X4
705401606
Unavailable
31
Ball Bearing
705500074
Unavailable
32
Needle Bearing
705500077
Unavailable
33
Vent Valve
705500124
Unavailable
34
O RING - Call your local BRP dealership
705500078
Unavailable
35
SCREW - Call your local BRP dealership
705500088
Unavailable
36
Seal
705500091
Unavailable
37
RING GEAR SCREW - Call your local BRP dealership
705500090
Unavailable
38
Nut | 4X4
705401603
Unavailable
39
Gear (36 Teeth)
705500087
Unavailable
40
O-Ring
705500073
Unavailable
41
Retaining Ring
705500102
Unavailable
42
Pinion Gear Shim 1.67 mm
705502061
Unavailable
43
Shim | 4X4
705401604
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
45
Ball Bearing
705500084
Unavailable
46
Retaining Ring
705500085
Unavailable
47
Axle Tube R.H
705500156
Unavailable
RH Axle Tube
705500180
Unavailable
48
OIL SEAL - Call your local BRP dealership
705500099
Unavailable
49
Axle Tube Screw
705500149
Unavailable
50
Not Available As Spare Part - Friction Washer
Unavailable
51
LH Axle Tube
705500209
Unavailable
52
OIL SEAL - Call your local BRP dealership
705500099
Unavailable
53
Ball Bearing
705500084
Unavailable
54
Retaining Ring
705500085
Unavailable
55
Axle Tube Screw
705500149
Unavailable
56
Hex. Flange Castellated Nut M18
232291413
Unavailable
57
Cotter Pin
250400036
Unavailable
58
Rear Wheel Hub Ass'y | Includes 58 - 9.
705500006
Unavailable
59
WEAR RING - Call your local BRP dealership
705500100
Unavailable
60
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
61
Brake Disk 220 mm (Rear)
705600033
Unavailable
Brake Disk 220 mm (Rear)
705600170
Unavailable
62
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
63
Rear Wheel Hub Ass'y | Includes 58 - 9.
705500006
Unavailable
64
WEAR RING - Call your local BRP dealership
705500100
Unavailable
65
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
66
WASHER - Call your local BRP dealership
250200019
Unavailable
67
RH Axle Ass'y
705500049
Unavailable
68
LH Axle Ass'y
705500050
Unavailable
69
Swing Arm Kit
703500023
Unavailable
70
Hex. Flange Elastic Nut M10
233201414
Unavailable
71
Filler/Level Plug | 7413/7414. 7415/7416. 7417/7418.
705500143
Unavailable
72
Instant Gasket
219701421
Unavailable
73
Rear Differential Protector
705000019
Unavailable
74
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
75
O-Ring
293300052
Unavailable
76
Flange Screw M8 x 10, Scotch Grip
207581046
Unavailable
