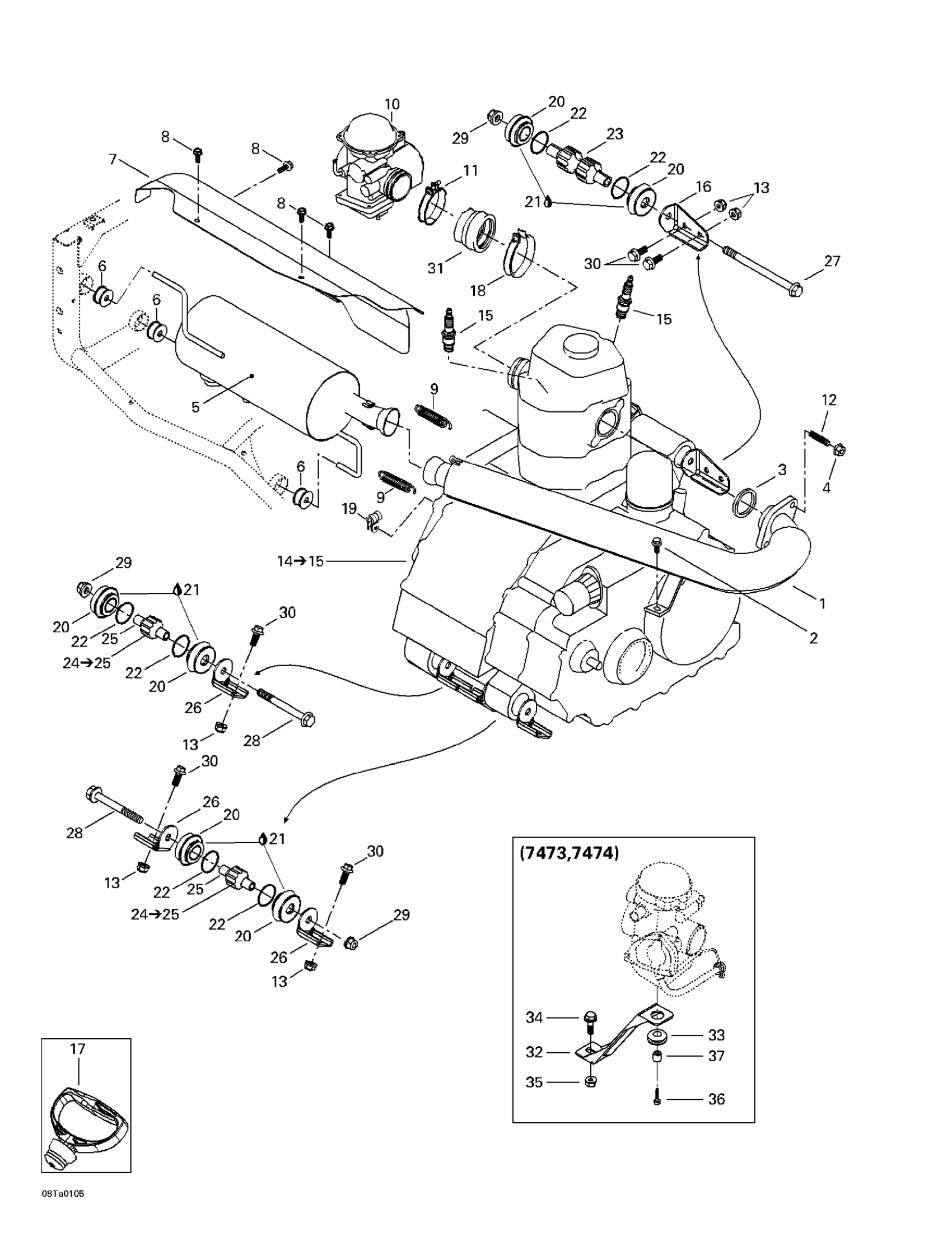

Can-Am Traxter Footshift, Red/rouge, 2001 01- Exhaust System Diagram

#

Description
Price

1

Tuned Pipe

707600062

Unavailable

2

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

Unavailable

3

GASKET - Call your local BRP dealership

707600003

Unavailable

4

Hex. Flange Nut M8

233081416

Unavailable

5

Muffler | Includes 5 To 6

707600080

Unavailable

6

Anti-Vibration Rubber

707600702

Unavailable

7

Heat Shield

707600076

Unavailable

8

Hex. Flange Screw M6 X 10

210261040

Unavailable

9

Spring

415107100

Unavailable

10

CarburetorBSR 33-26(7439,7440,7441,7442)

707000114

Unavailable

CARBURATOR ASS?Y BSR33-29 - Call your local BRP dealership

707200157

Unavailable

11

Gear Clamp Gemi

293650094

Unavailable

12

Stud M8 x 23

711940366

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

Unavailable

14

Rotax 4 Strokes Engine <<511>> | Includes 14 - 15.

707000109

Unavailable

15

Spark Plug, NGK/DR8EA

707000008

Unavailable

16

Front Engine Bracket, Black

707000082

Unavailable

17

Starting Grip

711852515

Unavailable

18

Clamp

512059062

Unavailable

19

Open Clamp

705600040

Unavailable

20

Anti-Vibration Mount

707000002

Unavailable

21

Synthetic Grease, 400 G

293550010

Unavailable

22

O-Ring

293300050

Unavailable

23

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

24

Support Bushing | Includes 10 to 11

707000030

Unavailable

25

RH LOWER BUSHING - Call your local BRP dealership

707000004

Unavailable

26

Engine Bracket

705200197

Unavailable

27

Hex. Flange Screw M10 X 140

230604044

Unavailable

28

HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership

207609544

Unavailable

29

Hex. Flange Elastic Nut M10

233201414

Unavailable

30

Hex. Flange Screw M8 X 20

207682044

Unavailable

31

CARBURETOR ADAPTOR - Call your local BRP dealership

707000037

Unavailable

32

Carburator Support

707200159

Unavailable

33

Grommet

709000582

Unavailable

34

Hex. Flange Screw M6 X 20

207662044

Unavailable

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

36

Hex. Screw M4 X 16, Scotch Grip

207341644

Unavailable

37

Spacer

707000181

Unavailable
