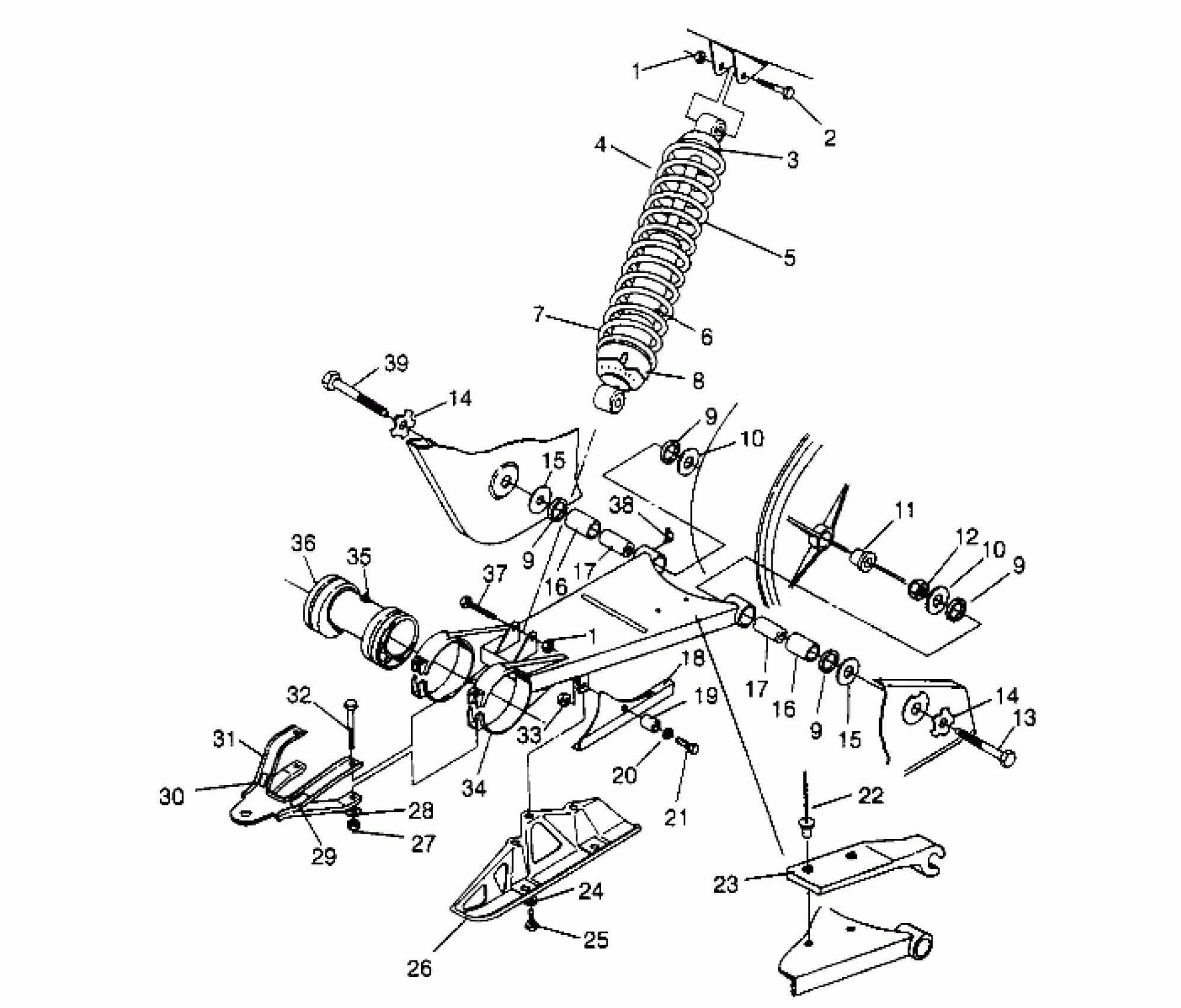

Polaris TRAIL BOSS - W948527 SWING ARM/SHOCK MOUNTING Trail Boss W948527 (4926822682B008) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

2

BOLT(10)

7515415

$1.49

3

RETAINER, SHOCK

5222118

Unavailable

4

SPRING,COMP,REAR

7041204-067

$64.99

5

SHOCK, REAR Substituted by 7041448

7041218

$146.71

6

SLEEVE,SPRING PROTECTOR

5431032

$31.99

7

ADAPTER,SPRING,SEAT

5630351

Unavailable

8

CAM,ADJUSTING SPRING

5630334

$32.37

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

10

WASHER(10)

7555779

Unavailable

10

WASHER(10)

7555779

Unavailable

11

Support (See Pg. A31, Ref. 4)

-------

Unavailable

12

NUT,CROWN LOCK(10)

7542601

Unavailable

13

BOLT, SHOULDER

7512702

Unavailable

14

PLATE,BOLT LOCK

5220958

$35.99

14

PLATE,BOLT LOCK

5220958

$35.99

15

BUSHING, MACH.(10)

7555752

Unavailable

15

BUSHING, MACH.(10)

7555752

Unavailable

16

BEARING,SWINGARM

3576512

Unavailable

16

BEARING,SWINGARM

3576512

Unavailable

17

BUSHING,SWING ARM

5010255

Unavailable

17

BUSHING,SWING ARM

5010255

Unavailable

18

GUARD,CHAIN(MODIFIED) Substituted by 5430776

5430952

$34.74

19

Bushing

5332828

$9.59

20

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

21

SCREW-FLANGED(10)

7515304

$5.59

22

RIVET(50)

7621433

$1.49

24

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

25

SCREW(10)

7512252

Unavailable

26

GUARD, SWING ARM

1040166-067

Unavailable

26

GUARD, SWING ARM

1040166-067

Unavailable

27

NUT, LOCK,(10)

7542503

$10.39

28

WASHER(10)

7555883

$3.99

29

DECAL,CHAIN TENSION Substituted by 7074752

7074177

Unavailable

30

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

31

HITCH WELD, BLK. Substituted by 2200472

1040294-067

Unavailable

32

BOLT(10)

7512576

$7.99

33

NUT LOCK(10)

7542321

$1.49

34

DESC NOT_AVAILABLE (Incl. 9. 16, 38)

1580052

Unavailable

35

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

36

HOUSING, AXLE

5130663

Unavailable

37

BOLT(10)

7515438

$4.79

38

FITTING, LUBE.

7080438

$10.39

39

BOLT, SHOULDER

7512701

$23.99
