Description

Price

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-6,9-13)

3084403

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-6,9-13)

3084403

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-6,9-13)

3084403

Unavailable

2

NUT, FLANGE(10)

3083649

$3.97

3

BRUSH,COMPL.2-POLE *

3084406

$125.46

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

O-RING

3084408

Unavailable

6

Bolt, Through

3084407

Unavailable

7

Bracket

3083650

Unavailable

8

BOLT,(10)

3081645

Unavailable

9

Washer Set

3083754

$2.38

10

ARMATURE ASM. *

3084404

$142.99

11

O RING

3083934

Unavailable

12

BALL BEARING

3083777

$31.75

13

O RING

3083741

$9.37

14

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

15

BOLT&WASHER ASM.

3082038

$3.97

16

CLIP

3084409

$7.14

17

SPRING, RETURN

3084410

Unavailable

18

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 14)

3083647

$271.10

19

SPRING, WEIGHT

3084411

$15.56

20

CLIP

3084412

$9.52

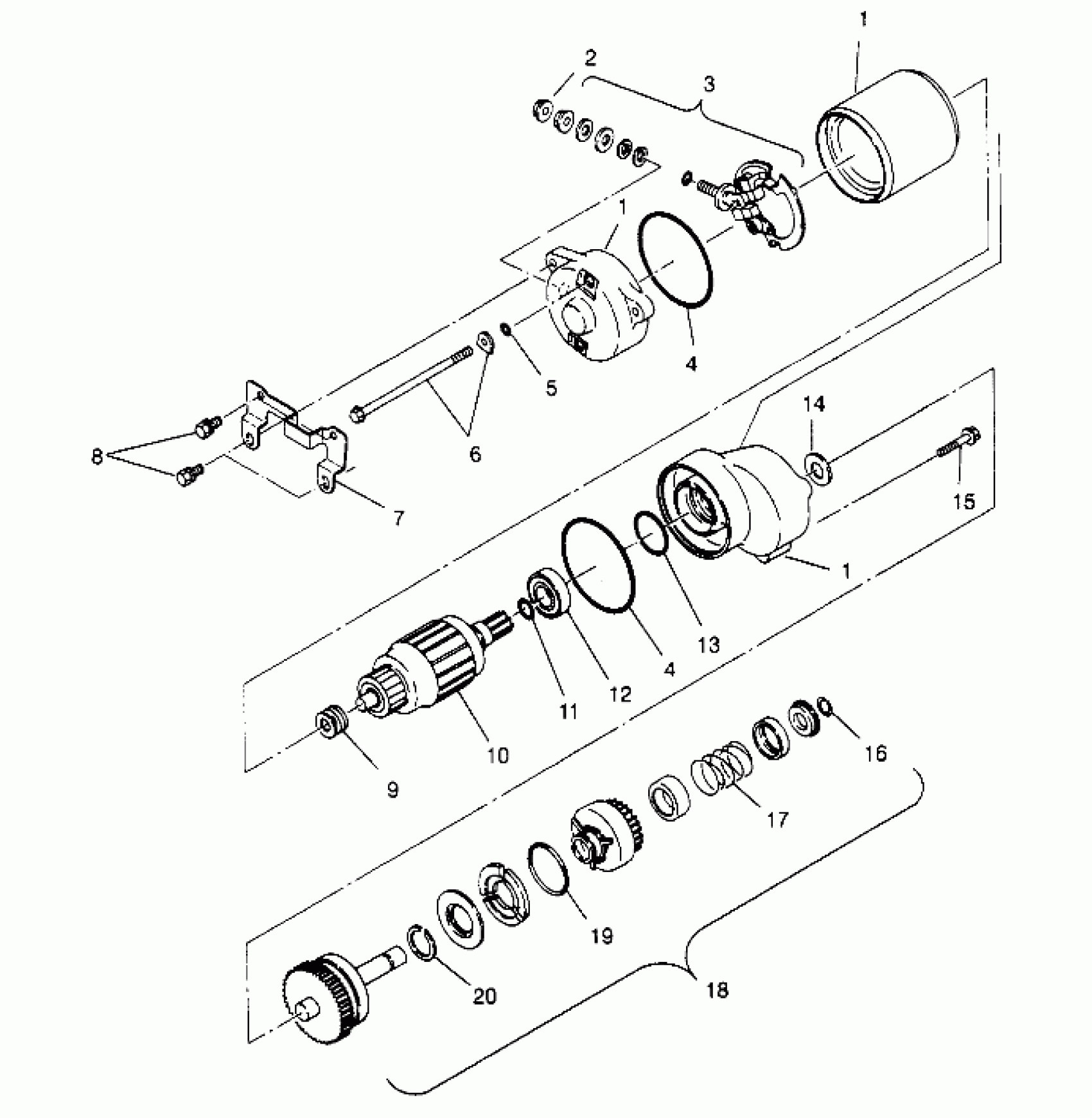

Polaris TRAIL BOSS - W948527 STARTING MOTOR - W948527 (4926822682C008) Diagram

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-6,9-13)

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-6,9-13)

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-6,9-13)

NUT, FLANGE(10)

BRUSH,COMPL.2-POLE *

RING, RUBBER

RING, RUBBER

O-RING

Bolt, Through

Bracket

BOLT,(10)

Washer Set

ARMATURE ASM. *

O RING

BALL BEARING

O RING

WASHER, GEARSHAFT Substituted by 7555908

BOLT&WASHER ASM.

CLIP

SPRING, RETURN

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 14)

SPRING, WEIGHT

CLIP
