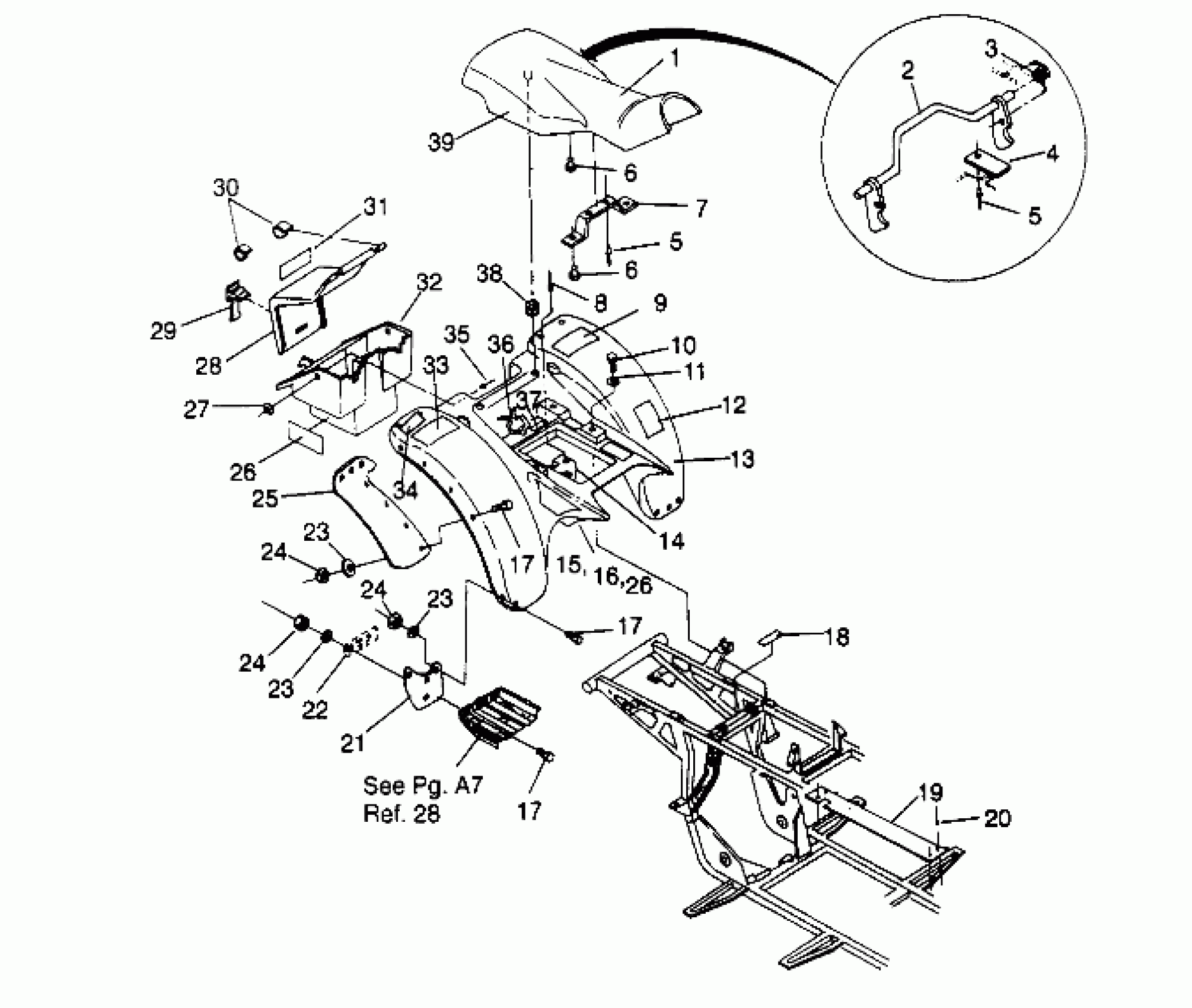

Polaris TRAIL BOSS - W948527 REAR CAB ASSEMBLY Trail Boss W948527 (4926822682A006) Diagram

#

Description
Price

1

SEAT ASM,(ATV),AQUA MARINE Substituted by 2682203-179

2681724-179

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$34.99

5

BLIND RIVET(50)

7621403

$1.19

5

BLIND RIVET(50)

7621403

$1.19

6

Bumper, Rubber

5410414

$3.17

6

Bumper, Rubber

5410414

$3.17

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

RIVET,3/16X.402(50)

7621432

$1.19

9

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

10

BOLT(10)

7512232

$1.19

11

WASHER,WROUGHT(10)

7558302

$1.59

12

DECAL,TIRE PRESSURE(T.B.)

7074111

Unavailable

13

CAB,REAR,WHITE

5430991-133

Unavailable

14

BRKT,R.HOLDDOWN

5220880

Unavailable

15

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

16

TAPE, FOIL

5810424

Unavailable

17

BOLT, BLACK(10)

7512282

Unavailable

17

BOLT, BLACK(10)

7512282

Unavailable

17

BOLT, BLACK(10)

7512282

Unavailable

18

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

19

GUARD,CLUTCH,OUTER

5222860-067

$7.06

20

RIVET-3/16-.090-.290

7661637

$1.19

21

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

21

MUDFLAP,RH,LOW.REAR

5850111

Unavailable

22

BRKT, LH MUD FLAP

5211131-067

Unavailable

23

WASHER, FLAT(10)

7555859

$1.19

23

WASHER, FLAT(10)

7555859

$1.19

23

WASHER, FLAT(10)

7555859

$1.19

24

NUT-LOCK(10)

7542122

$1.19

24

NUT-LOCK(10)

7542122

$1.19

24

NUT-LOCK(10)

7542122

$1.19

25

FLAP,MUD,LH REAR

5850060

Unavailable

25

FLAP,MUD,RH REAR

5850061

Unavailable

26

TAPE, FOIL

5810310

Unavailable

26

TAPE, FOIL

5810310

Unavailable

27

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

28

LID,TOOLBOX,(WHITE)

5430769-133

Unavailable

29

STRAP,TOOL COMPARTMENT

5410425

Unavailable

30

CLIP, LID HINGE(10)

7670050

Unavailable

31

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

32

BOX,TOOL COMP.

5430882

Unavailable

33

DECAL,WARN,RACK LOAD

7074173

Unavailable

34

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

7072786

Unavailable

35

RIVET(50)

7621462

$1.19

36

RETAINER,TOOL POUCH

7080385

Unavailable

37

DECAL,CARB.INFO.

7073761

Unavailable

38

GROMMET

5410413

Unavailable

39

COVER,SEAT,AQUA MARINE Substituted by 2681653

2681723-179

Unavailable
