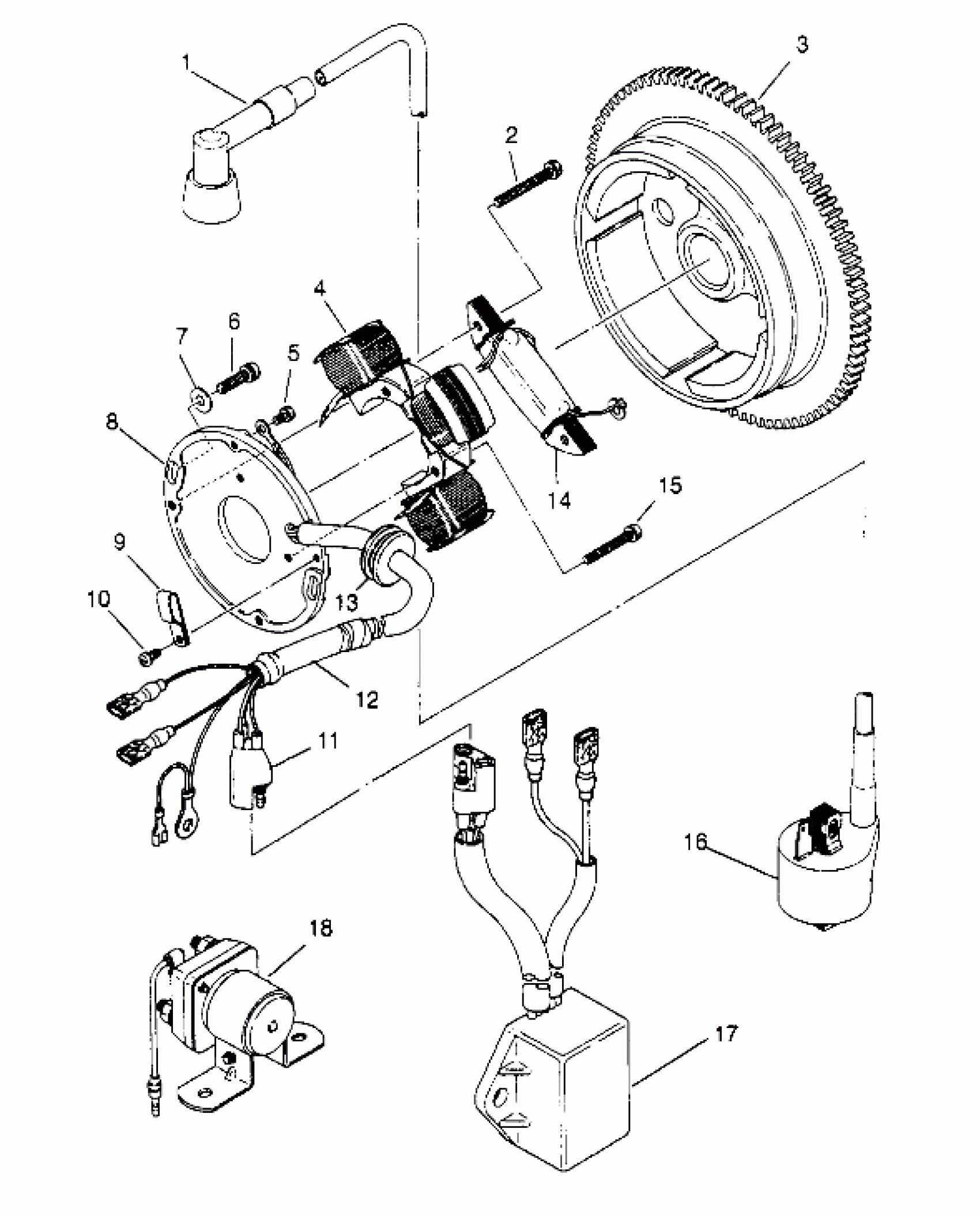

Polaris TRAIL BOSS - W948527 MAGNETO ASSEMBLY - W948527 (4926822682C007) Diagram

#

Description
Price

1

CAP SPARK PLUG,(10)

4020129

$9.70

2

SCREW & WASHER

3083423

$3.19

3

FLYWHEEL,W/RING GEAR

3083939

$504.99

4

COIL,LIGHT(STATOR 1)

3083976

Unavailable

5

SCREW&WASHER ASM(10)

3081256

$3.19

6

SCREW&WASHER Substituted by 3086788

3083774

Unavailable

7

WASHER

3083357

$2.39

8

Plate, Coil

3083634

$74.39

8

PLATE ASM. (Incl. 2,4,5,8-15)

3083979

Unavailable

9

Clamp

3081296

Unavailable

10

SCREW&WASHER,(10)

3081260

$3.19

11

COUPLER

3083909

$23.99

12

HARNESS, WIRE (Incl. 11,13)

3083978

$123.99

13

Grommet

3083773

Unavailable

14

Coil, Exciting

3083422

Unavailable

15

SCREW&WASHER ASM.(10)

3083736

$1.49

16

COIL, IGNITION *

3083923

Unavailable

17

CDI UNIT *

3083977

Unavailable

18

SWITCH-MAGNETIC Substituted by 3085521

3083211

Unavailable
