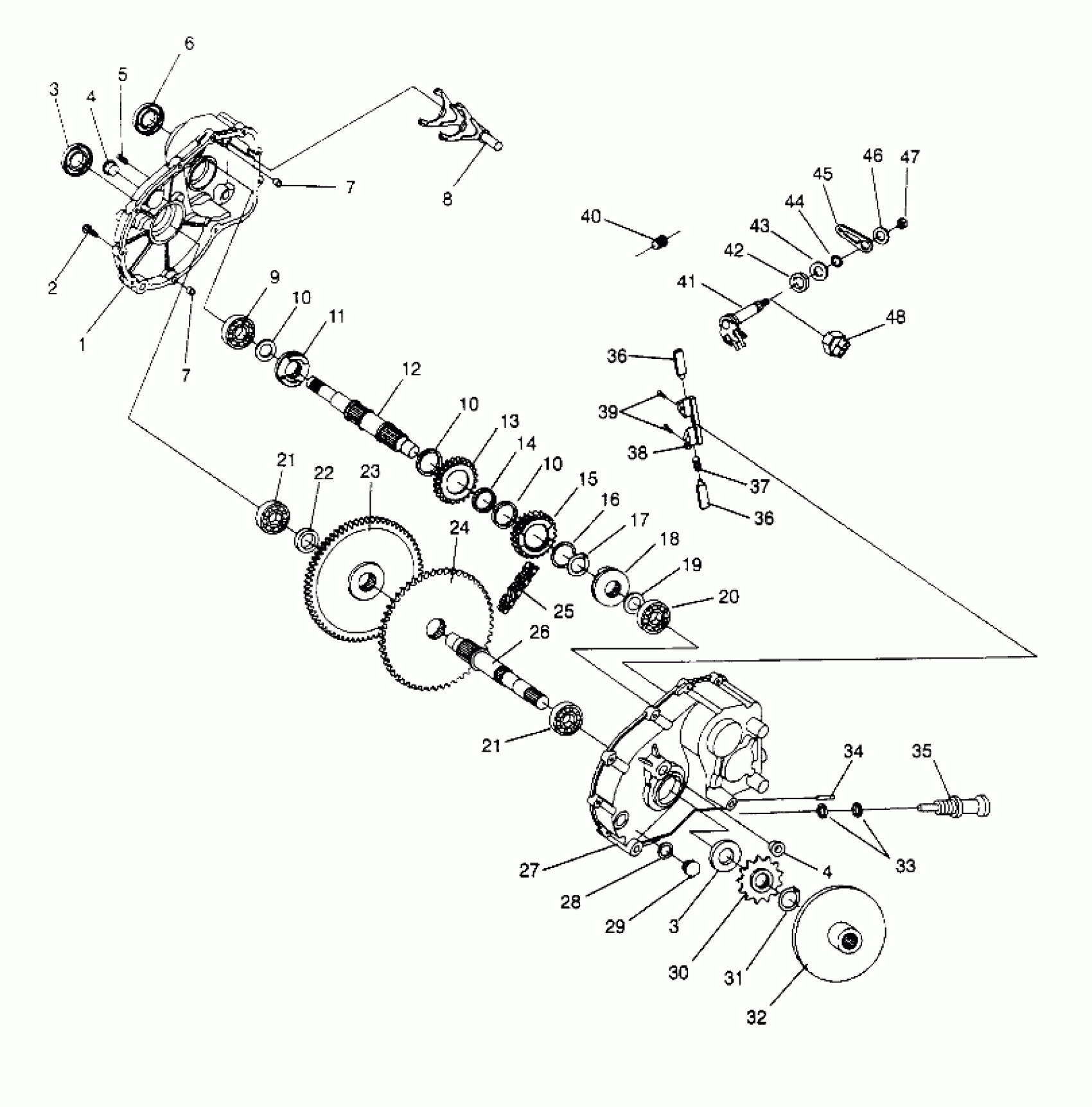

Polaris TRAIL BOSS - W948527 GEARCASE ASSEMBLY - W948527 (4926822682C003) Diagram

#

Description
Price

-

GEARCASE ASM,(PRD.)-ATV

1341124

Unavailable

1

GEARCASE, LH.

3233095

$298.99

2

Screw

3233026

$6.46

3

SEAL Substituted by 3233248

3233096

Unavailable

3

SEAL Substituted by 3233248

3233096

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

SEAL Substituted by 3233248

3233097

$30.88

7

PIPE, KNOCK

3233021

Unavailable

7

PIPE, KNOCK

3233021

Unavailable

8

RAIL,SHIFT,ASM.

3233098

Unavailable

9

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

10

WASHER

3233099

Unavailable

10

WASHER

3233099

Unavailable

10

WASHER

3233099

Unavailable

11

DOG,REV.ENGAGEMENT

3233100

Unavailable

12

SHAFT, INPUT

3233101

Unavailable

13

GEAR,REVERSE,19T

3233102

Unavailable

14

BEARING, NEEDLE

3233103

$31.99

15

SPRKT,FWD,19T

3233104

Unavailable

16

Washer

3233105

$7.19

17

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

18

DOG,FWD.ENGAGEMENT

3233107

Unavailable

19

WASHER

3233007

Unavailable

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

21

BEARING

3233020

$47.99

21

BEARING

3233020

$47.99

22

WASHER

3233108

Unavailable

23

GEAR, 65T

3233109

Unavailable

24

SPROCKET, 51T

3233121

Unavailable

25

CHAIN,SILENT,60P

3233111

$79.19

26

SHAFT, OUTPUT

3233112

Unavailable

27

GEARCASE, RH.

3233113

Unavailable

28

Washer

3233035

Unavailable

29

PLUG Substituted by 3233448

3233114

$23.81

30

SPKT,13T,SPLINED

3221041

Unavailable

31

RING,RETAINING(10) Substituted by 7710434

3233047

Unavailable

32

DISC,BRAKE,WELD. Substituted by 1910177

1910121

Unavailable

33

O-RING

3233053

Unavailable

34

Vent

3233037

Unavailable

35

DIPSTICK Substituted by 3233478

3233115

$24.27

36

PIN

3233031

$32.11

36

PIN

3233031

$32.11

37

Spring

3233032

$12.94

38

BRACKET

3233030

$21.43

39

SCREW Substituted by 3233747

3233033

Unavailable

40

PLUG

3233116

Unavailable

41

SHAFT,SHIFT,ASM,

3233117

Unavailable

42

SEAL

3233118

Unavailable

43

WASHER

3233119

$7.79

44

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

45

BELLCRANK, HI/REV

3233155

Unavailable

46

Washer

3233054

$6.46

47

Nut

3233055

Unavailable

48

SWITCH,TRANS.INDIC.

4110172

Unavailable
