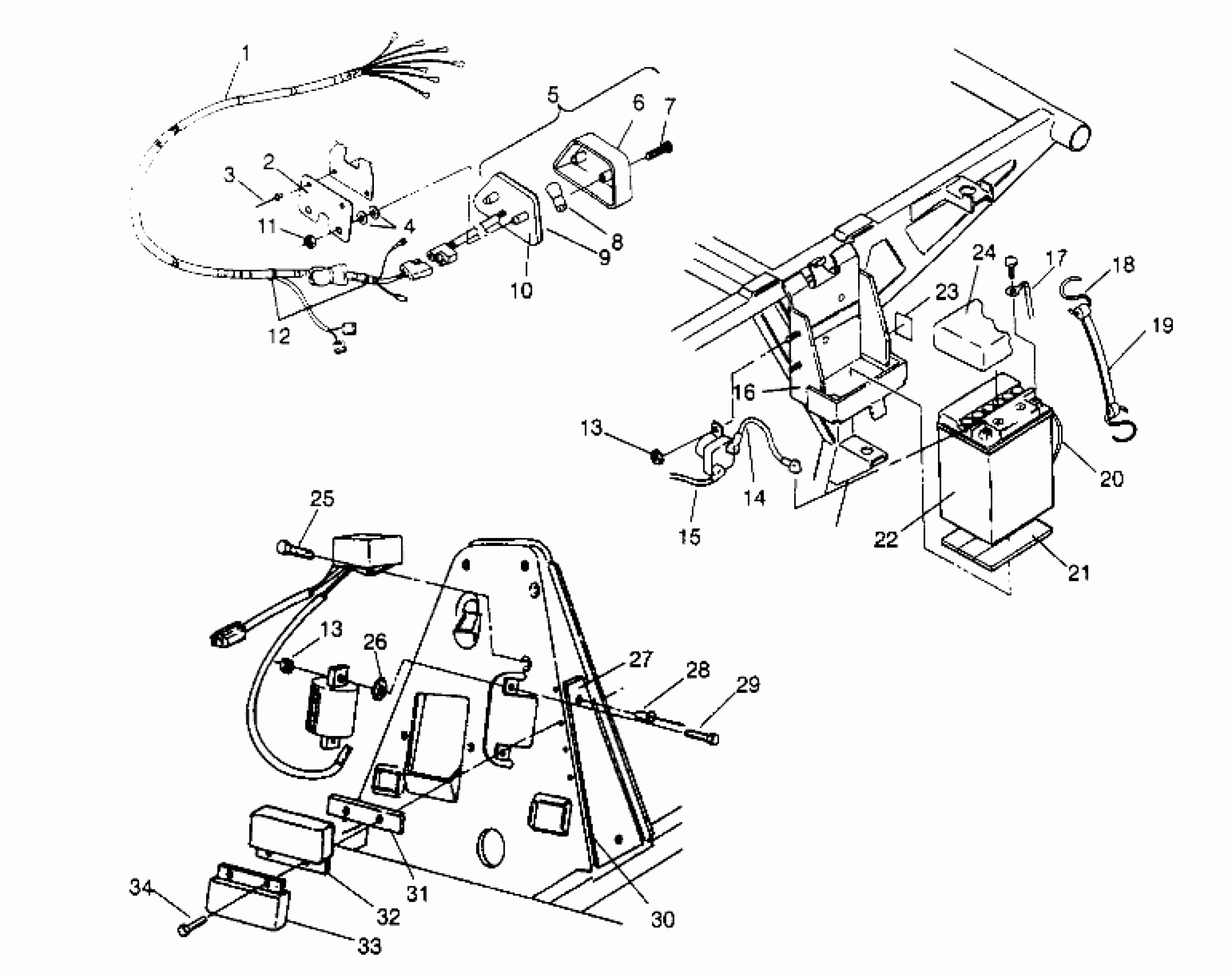

Polaris TRAIL BOSS - W948527 ELECTRICAL/TAILLIGHT ASSEMBLY - W948527 (4926822682C002) Diagram

#

Description
Price

1

HARNESS,MAIN,(TRL.BOSS)

2460487

Unavailable

2

ISOLATOR,TAILLIGHT

5211391-067

$13.39

3

RIVET(50)

7621470

$3.17

4

WASHER(10) Substituted by 7558301

7555776

Unavailable

5

TAIL LIGHT ASM.

2432034

$55.99

6

LENS,TAILLIGHT

4032046

$32.37

7

Screw, Taillight

4032029

$4.79

8

BULB,TAILLIGHT

4030043

$6.46

9

GASKET,TAILLIGHT

4032045

$4.03

10

BACKING,TAILLIGHT

4032064

$83.99

11

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

NUT(10)

7541925

$1.49

13

NUT(10)

7541925

$1.49

14

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

15

CABLE,SOLENOID/STARTER

4010064

Unavailable

16

SCREW(10)

7512027

$1.49

17

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

18

HOOK-BATT.H/D(10)

7010032

$1.59

19

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

20

KIT-TANK VENT

2200190

Unavailable

21

PAD-BATTERY

5810290

$7.27

22

Battery

4140006

$99.99

23

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

24

COVER,BATTERY

5431769

$14.39

25

BOLT(10)

7512232

$1.49

26

WASHER(10)

7571602

$4.79

27

BOARD,TERMINAL

4040022

Unavailable

28

RIVET, POP(50)

7621322

$0.56

29

SCREW(10)

7512007

$3.99

30

SHIELD,TERM.BOARD

5431152

Unavailable

31

HEAT SINK

5210650

Unavailable

32

RECTIFIER, VOLTAGE

4060087

Unavailable

33

LIMITER,REV.SPEED

4060085

Unavailable

34

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19
