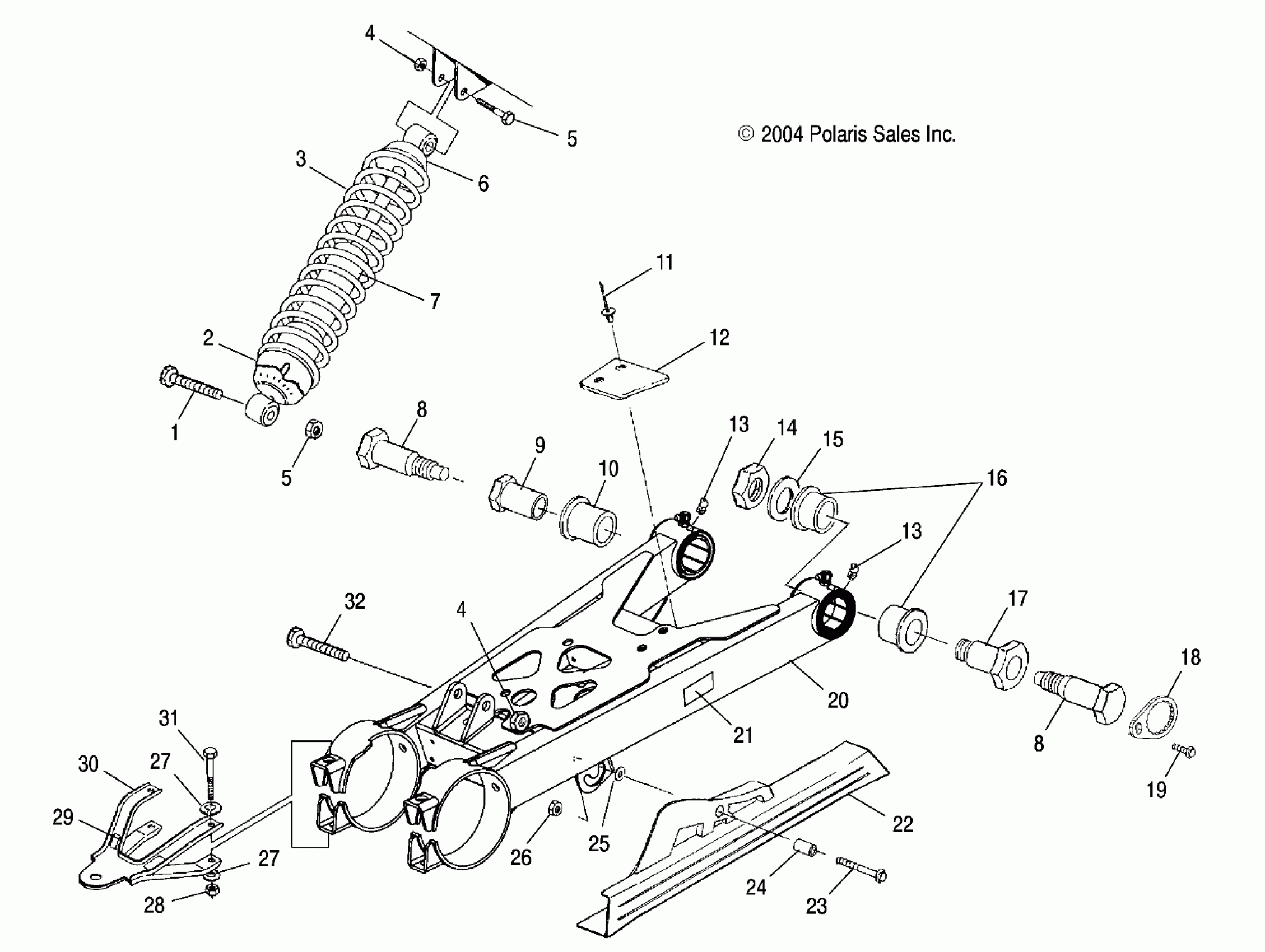

Polaris TRAIL BOSS 330 QUADRICYCLE - A05CA32EA SWING ARM and SHOCK MOUNTING - A05CA32EA (4999200489920048C02) Diagram

#

Description
Price

1

SCREW

7517761

$5.56

2

CAM, ADJUSTING, SPRING

5630551

$36.41

3

Spring, Compression, Silver

7041986-385

$67.76

4

Nut, Nylok

7542439

$1.19

4

Nut, Nylok

7542439

$1.19

5

Screw

7515415

$1.19

5

Screw

7515415

$1.19

6

Retainer, Shock

5241147

$10.32

7

Shock, Rear

7042318

Unavailable

8

Bolt, Swing Arm Pivot

5134321

$40.46

8

Bolt, Swing Arm Pivot

5134321

$40.46

9

Bushing, Swing Arm Pivot, LH

5133166

$31.75

10

Bushing, Swing Arm, LH

5434545

$8.73

11

Rivet

7661046

$3.97

12

Guide, Pad, Chain

5432727

Unavailable

13

Fitting

7080510

$5.56

13

Fitting

7080510

$5.56

14

Nut, Hex, Jam

7547082

$32.37

15

Washer, Flat

7556035

Unavailable

16

Bushing, Swing Arm, RH

5434546

$8.73

17

Bushing, Swing Arm, Pivot, RH

5133167

$35.71

18

Bracket, Bolt Lock

5247488

Unavailable

19

SCREW

7515399

$1.19

20

Asm., Swing Arm, Black [Incl. 10,13,17]

1541987-067

$278.99

21

Decal, "Chain Free Play"

7078572

Unavailable

22

Guard, Chain

5432854

Unavailable

23

Screw, Flange

7515304

$5.56

24

Bushing

5332828

$9.70

25

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

26

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

27

Washer

7555883

$3.97

27

Washer

7555883

$3.97

28

Nut, Nylok

7547066

$1.59

29

Decal, Hitch

7170915

Unavailable

30

Kit, Hitch [Incl. 28-31]

2200472

Unavailable

31

Bolt

7512576

$7.94

32

Bolt

7515438

$4.76
