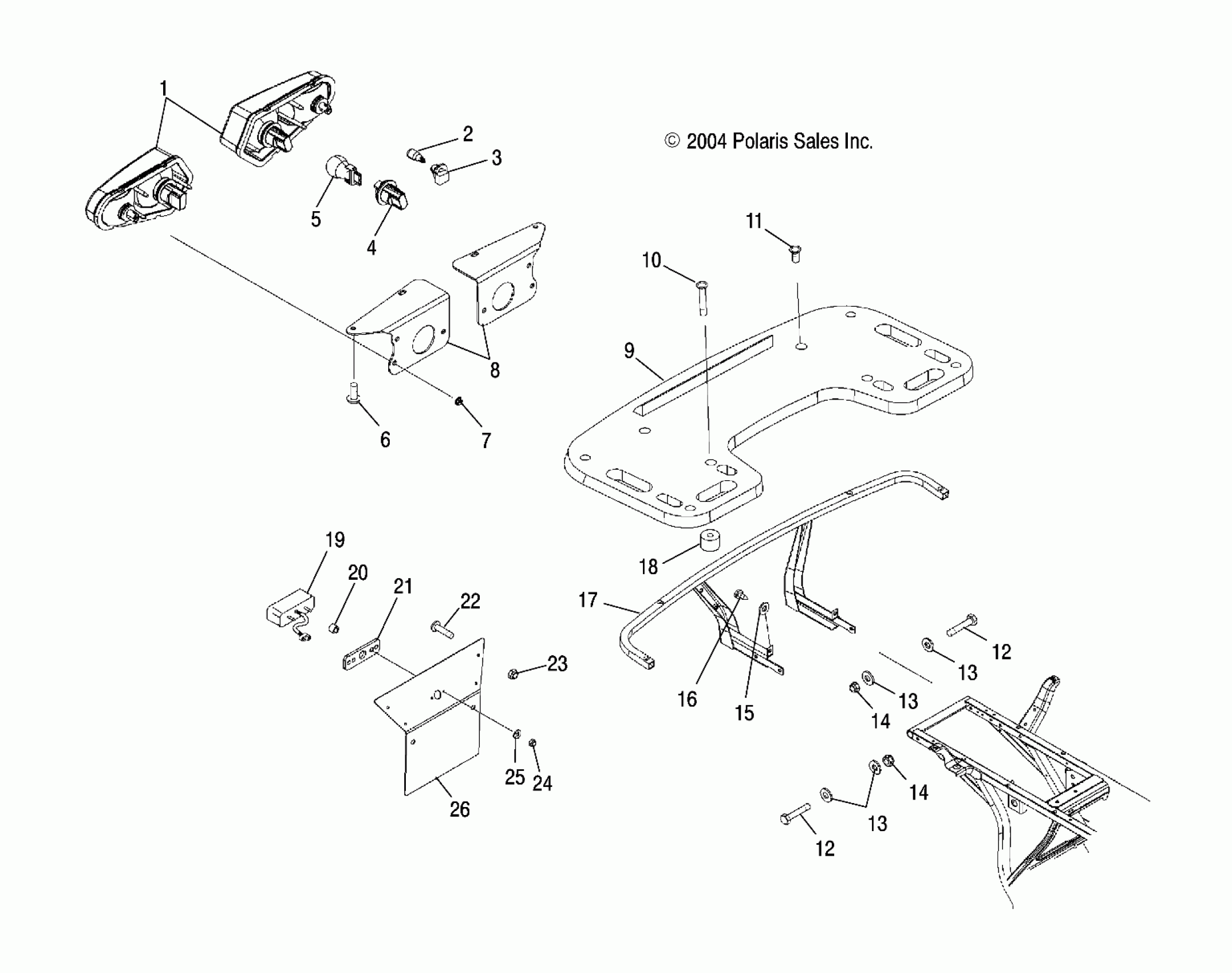

Polaris TRAIL BOSS 330 QUADRICYCLE - A05CA32EA RACK, REAR and TAILLIGHTS - A05CA32EA (4999200489920048A06) Diagram

#

Description
Price

1

Asm., Stop, Tail, Turn, RH

2410579

$80.94

1

Asm., Stop, Tail, Turn, LH

2410578

$476.17

2

Bulb, Brake Light

4011173

$24.27

3

Socket, Worklight

4011102

$44.51

4

Socket, Taillight

4011101

$44.51

5

BULB, TAIL/STOP

4011064

$20.22

6

Screw

7517916

$6.35

7

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

8

Bracket, Taillight Mount, Back, Black, LH

5249205-067

$27.60

8

Bracket, Taillight Mount, Back, Black, RH

5249206-067

Unavailable

9

Asm., Rack, Rear, Black [Incl. Warning Decal]

2632996-070

Unavailable

10

Screw

7517983

$9.52

11

Screw

7518280

$1.19

12

Bolt

7512329

$3.97

12

Bolt

7512329

$3.97

13

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

13

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

13

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

14

NUT-5/16-18 NYLOK-Y

7542324

$0.79

14

NUT-5/16-18 NYLOK-Y

7542324

$0.79

15

Washer, Flat

7555859

$1.19

16

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.19

17

Support, Rear Rack, Black

1013724-067

Unavailable

18

Spacer

5334092

Unavailable

19

Light, License Plate, Black

2410629

$53.24

20

Spacer

5134403

$3.17

21

Spacer, Light

5812520

$24.99

22

SCREW

7517230

$1.19

23

NUT, FLANGE, NYLOK

7542153

$1.59

24

NUT-M5X.8,HX NYL-Y

7546601

$1.19

25

Washer

7555904

$0.79

26

Bracket, Registration Plate, Black

5249204-067

Unavailable
