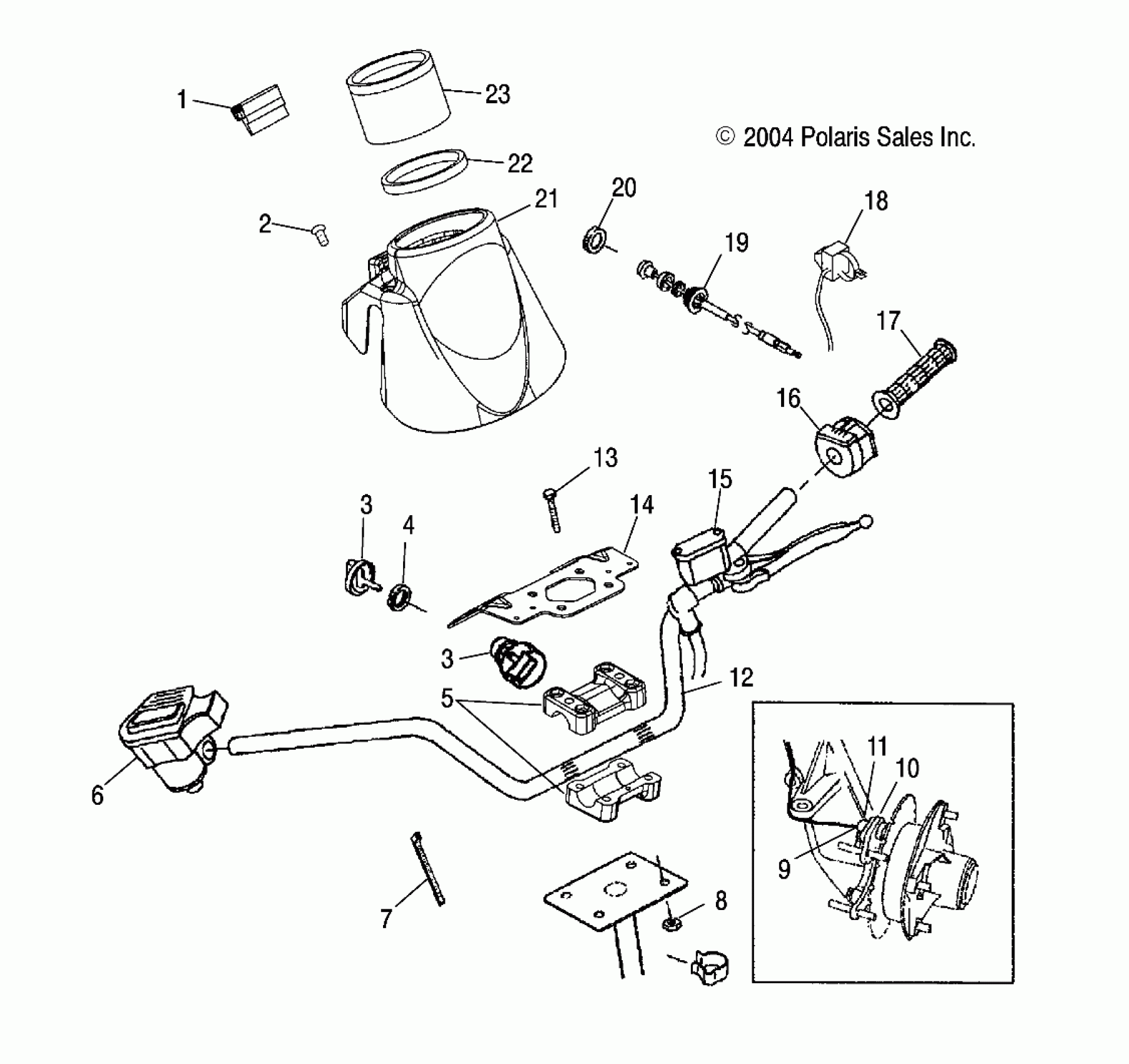

Polaris TRAIL BOSS 330 QUADRICYCLE - A05CA32EA HANDLEBAR - A05CA32EA (4999200489920048B12) Diagram

#

Description
Price

1

Indicator

4011122

$17.30

2

SCREW

7518176

$4.76

3

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

3

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

3

Cover, Key

5431964

$13.75

3

Switch, Key

4011142

$109.27

3

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

3

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

3

Cover, Key

5431964

$13.75

3

Switch, Key

4011142

$109.27

4

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

5

BLOCK, HANDLEBAR

5631973

$32.37

5

BLOCK, HANDLEBAR, PEGGED

5631972

$32.37

6

ASM., THROTTLE CONTROL [SEE THROTTLE CONTROL/CABLE PG. B8, REF. 5]

----

Unavailable

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

Nut, Nylok

7542122

$1.19

9

Screw

7517658

$5.56

10

Sensor, Hall Effect

4010298

$117.37

11

Cap, Hall Sensor

5132382

$24.27

12

Tube, Handlebar, Black

5334647-067

Unavailable

13

SCREW

7515189

$1.19

14

Bracket, Instrument Panel

5248182

$4.37

15

ASM., MASTER CYLINDER [SEE CONTROLS MASTER CYLINDER, LH AND BRAKE LINE PG. B9 FOR DETAILS]

----

Unavailable

16

Switch, Handlebar

4011120

Unavailable

17

Grip, Handlebar, Black

5433834-070

$28.32

18

Switch, Hazard

4011121

$75.40

19

Cable, Choke

7081177

$44.51

20

Nut, Choke

7080922

$3.17

21

Panel, Speedo, Indicator, Black

5435806-070

$57.94

22

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$44.51

23

Asm., Cluster

3280472

Unavailable
