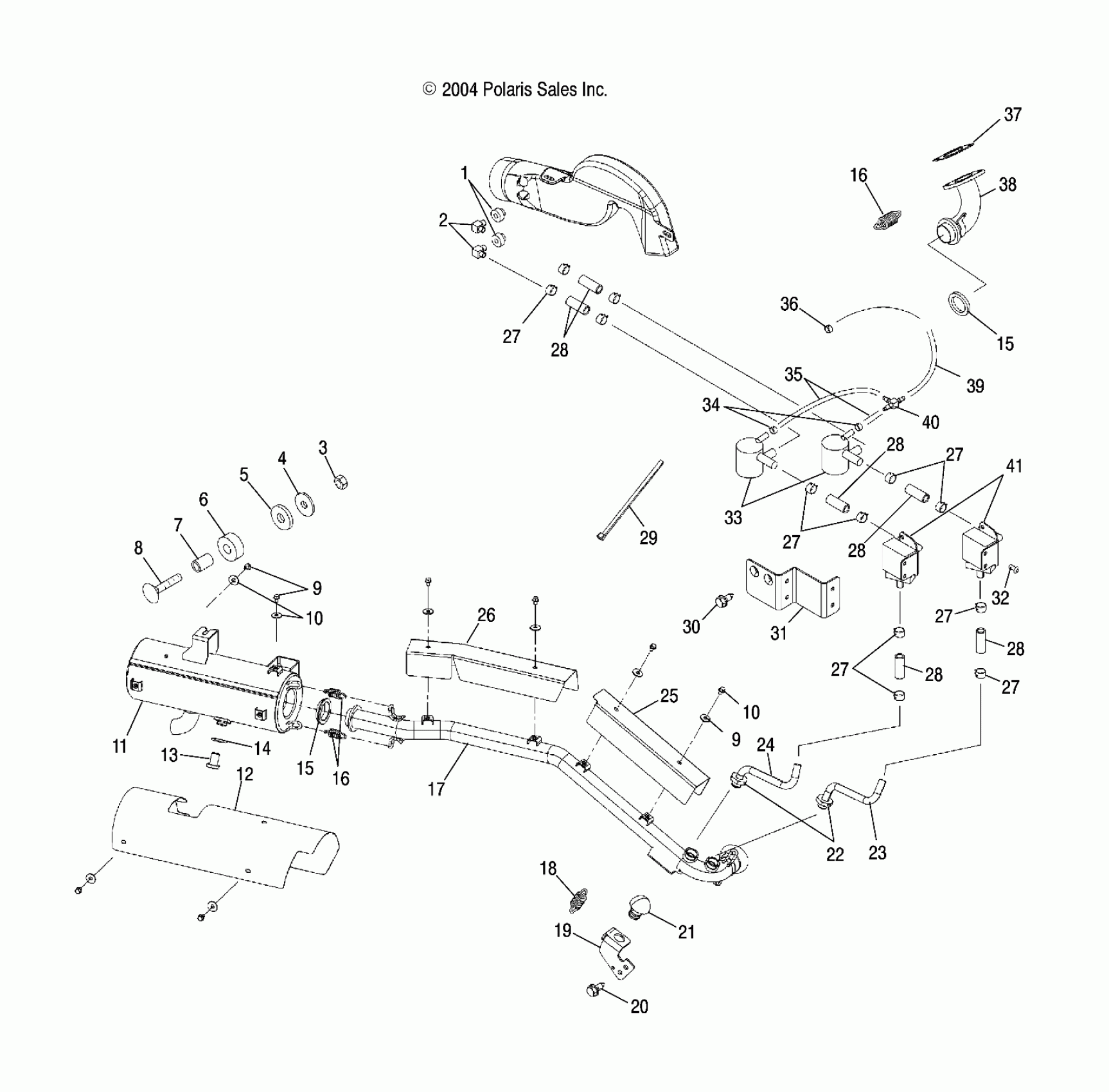

Polaris TRAIL BOSS 330 QUADRICYCLE - A05CA32EA EXHAUST SYSTEM - A05CA32EA (4999200489920048A13) Diagram

#

Description
Price

1

Grommet

5412802

$7.14

2

Fitting, Elbow

7052383

$14.13

3

NUT-5/16-18 NYLOK-Y

7542324

$0.79

4

WASHER

7555716

$1.59

5

WASHER, RUBBER

5410436

$1.59

6

DAMPENER, VIBRATION

5412659

$3.97

7

BUSHING

5010192

$6.35

8

BOLT

7515316

$2.38

9

Washer

7555935

$2.38

9

Washer

7555935

$2.38

10

Screw

7515197

$1.19

10

Screw

7515197

$1.19

11

Silencer, Black

1261518-029

Unavailable

12

Shield, Heat, Silencer, Black

5249192-029

$50.46

13

BOLT

7512666

$2.38

14

WASHER, CLEAN OUT

7556230

$1.19

15

Seal, Exhaust

5243517

$16.17

15

Seal, Exhaust

5243517

$16.17

16

SPRING

7041804

$8.89

16

SPRING

7041804

$8.89

17

Headpipe

1261527

Unavailable

18

Spring, Extension

7041769

$18.99

19

Bracket, Exhaust Pipe Support

5248301

Unavailable

20

Bolt

7512232

$1.19

21

Dampner, Vibration w/Ribs

5411576

$7.94

22

Nut

7547298

$4.17

23

Asm., Tube, Air Injection, Front

1261476

$34.27

24

Asm., Tube, Air Injection, Rear

1261475

Unavailable

25

Shield, Exhaust, Heat, Front

5248889

Unavailable

26

Shield, Headpipe, Heat, Mid

5249098

$15.49

27

Clamp

7080810

$2.38

27

Clamp

7080810

$2.38

27

Clamp

7080810

$2.38

27

Clamp

7080810

$2.38

27

Clamp

7080810

$2.38

27

Clamp

7080810

$2.38

28

Hose

5412724-50

$3.81

28

Hose

5412724-50

$3.81

28

Hose

5412724-50

$3.81

28

Hose

5412724-50

$3.81

28

Hose

5412724-50

$3.81

29

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

30

Bolt

7512232

$1.19

31

Bracket, Air Valve Mount, Black

5248890-067

Unavailable

32

Screw

7511909

$2.74

33

Filter, Air Valve

2520457

$7.84

34

Clamp

7081265

Unavailable

35

Line

8450061

Unavailable

36

Clamp

7080603

$1.59

37

GASKET

3085075

$40.46

38

Manifold

1261490

$57.94

39

Line

8450037

Unavailable

40

Fitting, Tee

7052386

$6.98

41

Asm., Air Valve

1261439

$43.22
