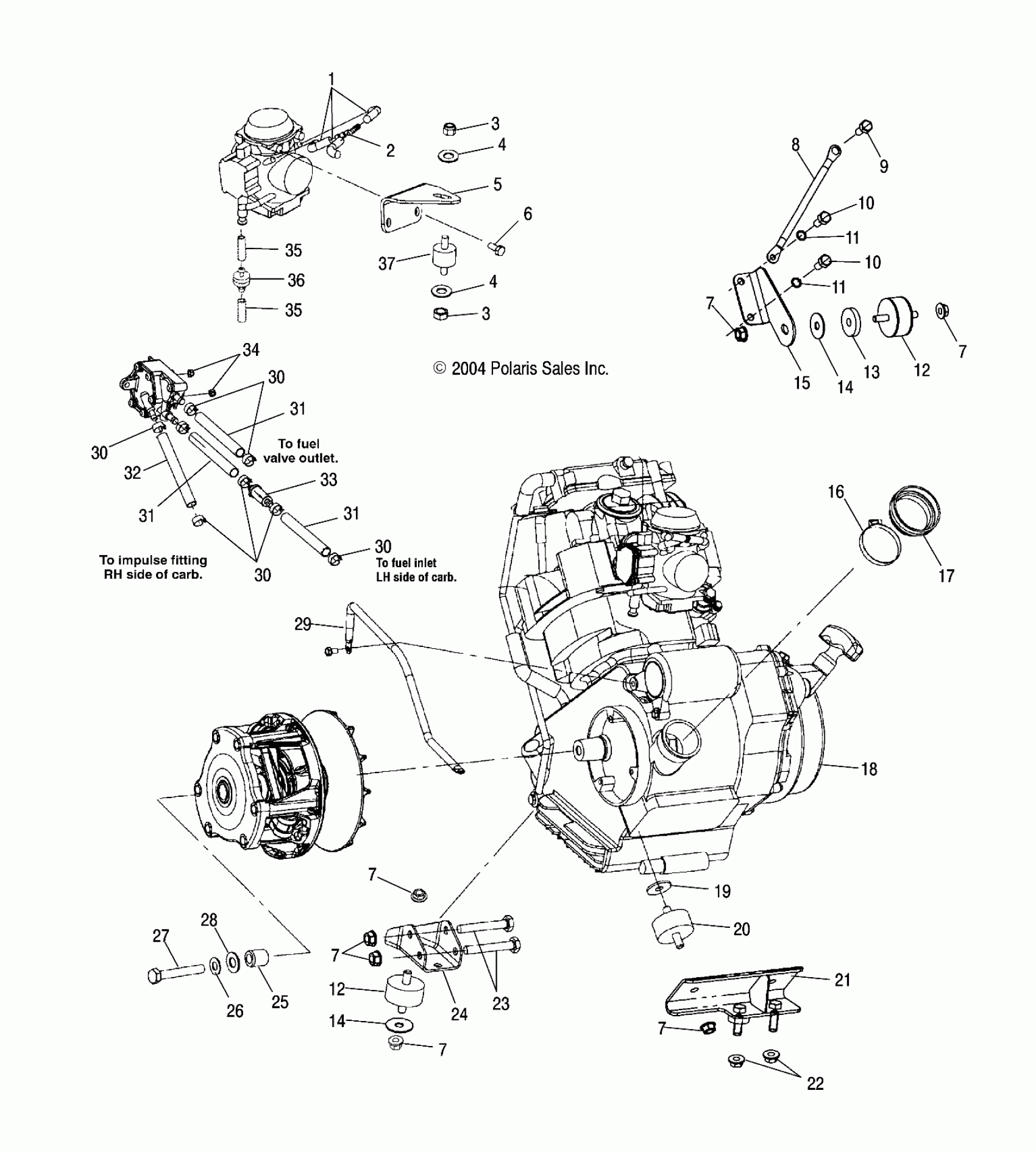

Polaris TRAIL BOSS 330 QUADRICYCLE - A05CA32EA ENGINE MOUNTING - A05CA32EA (4999200489920048A09) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.59

3

Nut, Nylok

7542122

$1.49

3

Nut, Nylok

7542122

$1.49

4

Washer, Flat

7558301

$1.49

4

Washer, Flat

7558301

$1.49

5

Bracket, Carburetor Mount

5247946

Unavailable

6

Asm., Screw and Washer

3084205

$3.99

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

8

Cable, Ground, Engine

4010132

Unavailable

9

SCREW

7517386

$1.49

10

BOLT

7512315

$4.79

10

BOLT

7512315

$4.79

11

WASHER, SPRING LOCK

7552901

$1.49

11

WASHER, SPRING LOCK

7552901

$1.49

12

Mount, Rubber

3021181

Unavailable

12

Mount, Rubber

3021181

Unavailable

13

Insulator, Motor Mount

5430802

$27.99

14

WASHER

7555823

$3.99

14

WASHER

7555823

$3.99

15

Bracket, Engine Mount, Top

5247344

Unavailable

16

Clamp

7080511

$4.79

17

Boot, Clutch Intake

5411721

Unavailable

18

Engine, Short Block ES320PFE103 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required f

3089535

Unavailable

19

WASHER, FLAT

7555815

$3.99

20

Mount, Rubber, Front

3110046

Unavailable

21

Mount, Engine, Rear, Black

1013413-067

Unavailable

22

Nut, Flange Lock

7547089

$4.79

23

SCREW

7515417

$4.79

24

Mount, Lower Front

5247342

Unavailable

25

BUSHING-.437 X.770 X.50

5430261

$7.19

26

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

27

BOLT

7512566

$30.79

28

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

29

Cable, Battery/Engine

4010095

Unavailable

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

31

Line, Fuel

8450103

Unavailable

31

Line, Fuel

8450103

Unavailable

31

Line, Fuel

8450103

Unavailable

32

Line, Fuel

8450040-600

Unavailable

33

FILTER

2530009

$5.65

34

NUT-M5X.8,HX NYL-Y

7546601

$1.49

35

Line, Vent

8360009

Unavailable

35

Line, Vent

8360009

Unavailable

36

VALVE, CHECK

7051011

Unavailable

37

MOUNT, CARBURETOR

3110050

$12.99
