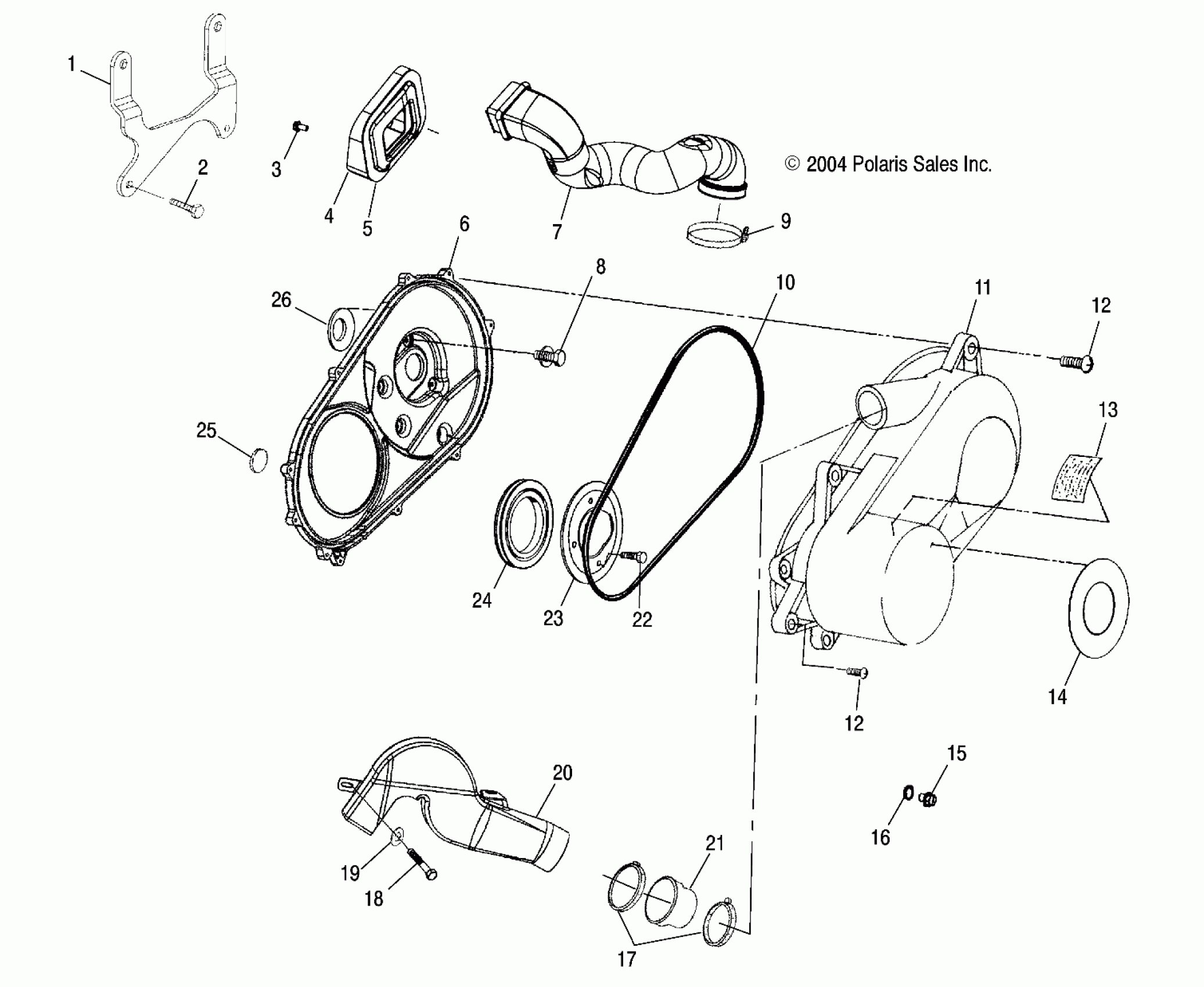

Polaris TRAIL BOSS 330 QUADRICYCLE - A05CA32EA CLUTCH COVER - A05CA32EA (4999200489920048C03) Diagram

#

Description
Price

1

Bracket, Clutch Cover, Black

5247524-067

Unavailable

2

SCREW

7517386

$1.19

3

CLIP-PLASTIC DART, NYLON

7670088

$1.59

4

Asm., Foam, Clutch Air Inlet

2632513

$54.99

5

Plate, Backing

5434491

Unavailable

6

Kit, Clutch Cover, Inner w/Stop

2202438

Unavailable

7

Duct, Inlet

5434401

Unavailable

8

Asm., Bolt and Washer

7510000

Unavailable

9

CLAMP, NARROW BAND

7080909

$7.94

10

Seal, Outer Clutch Cover

5521578

$44.51

11

Cover, Clutch, Outer, Black

5434255-070

$186.17

12

SCREW

7512094

$1.59

12

SCREW

7512094

$1.59

13

Decal, Warning, Clutch Cover

7173030

Unavailable

14

DECAL, "AUTOMATIC TRANSMISSION"

7172746

Unavailable

15

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

16

O RING-.364X.504X.07

5410542

$4.84

17

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

18

SCREW

7517386

$1.19

19

Washer, Flat

7558301

$1.19

20

Duct, Air Outlet

5436007

$57.94

21

BOOT, DUCT

5412636

$24.27

22

ASM., SCREW AND WASHER [SEE CRANKCASE PG. C11, REF. 8]

----

Unavailable

23

Bracket, Clutch Seal

5242046

$36.41

24

Seal, Cover Case

5410575

$44.51

25

Stopper, Inner Clutch Cover

5411795

Unavailable

26

Seal, Cover Case

5410489

$13.75
