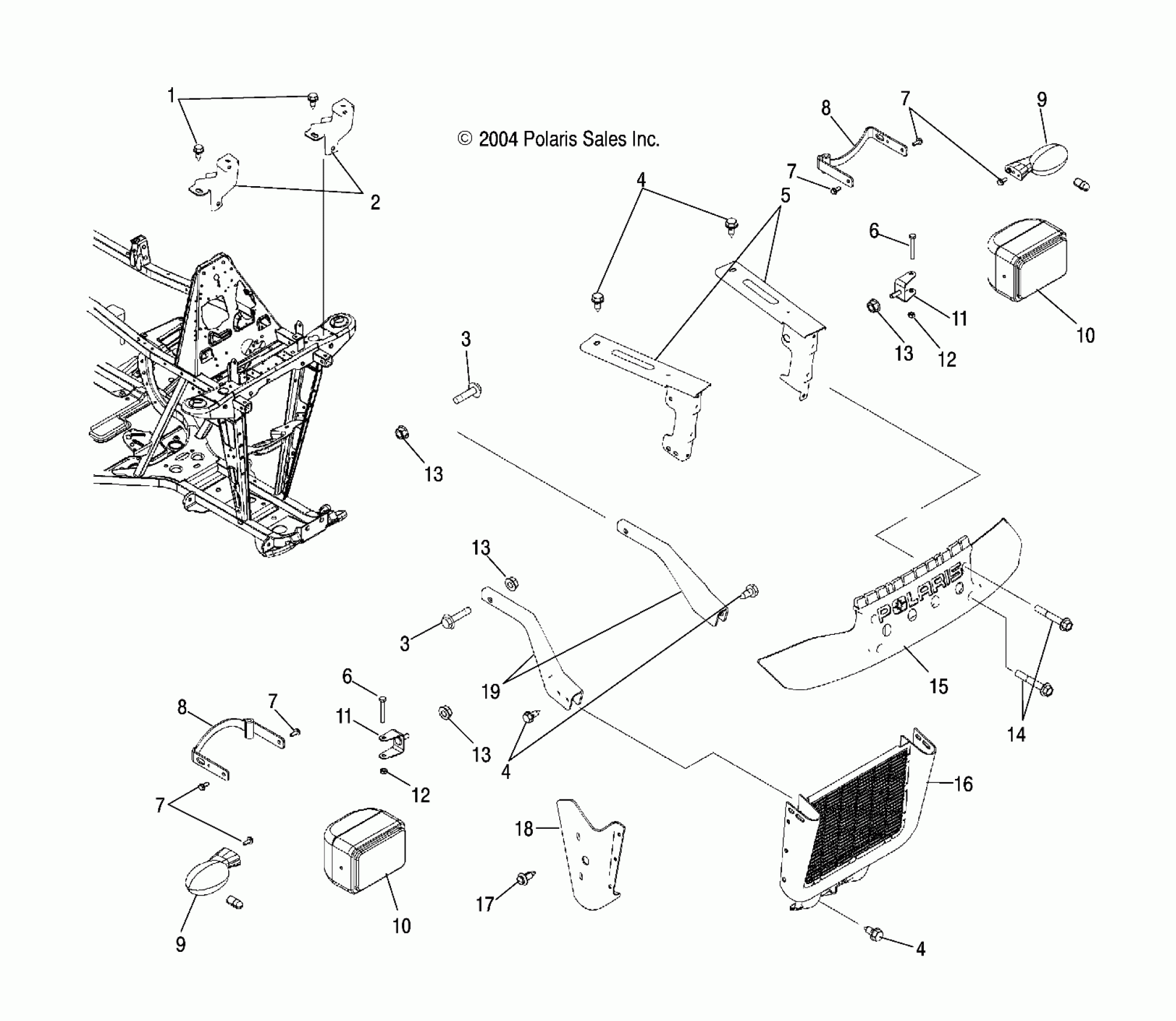

Polaris TRAIL BOSS 330 QUADRICYCLE - A05CA32EA BUMPER MOUNTING, FRONT and HEADLIGHT and TURN SIGNALS, FRONT - A05CA32EA (4999200489920048A08) Diagram

#

Description
Price

1

Bolt

7512232

$1.19

2

Support, Front Rack, Black, LH

1013744-067

Unavailable

2

Support, Front Rack, Black, RH

1013746-067

$94.99

3

Bolt

7518341

$4.76

3

Bolt

7518341

$4.76

4

SCREW

7515399

$1.19

4

SCREW

7515399

$1.19

5

Mount, Rack, Black, LH

1014099-067

Unavailable

5

Mount, Rack, Black, RH

1014101-067

Unavailable

6

SCREW

7517238

$4.76

6

SCREW

7517238

$4.76

7

Screw

7517915

$7.14

7

Screw

7517915

$7.14

7

Screw

7517915

$7.14

7

Screw

7517915

$7.14

8

Bracket, Headlight/Turn, Black

1014930-067

$49.21

8

Bracket, Headlight/Turn, Black

1014930-067

$49.21

9

Signal, Front, Black, LH

2410490

$53.24

9

Signal, Front, Black, RH

2410491

Unavailable

9

Bulb

4010742

$10.63

9

Signal, Front, Black, LH

2410490

$53.24

9

Signal, Front, Black, RH

2410491

Unavailable

9

Bulb

4010742

$10.63

10

Asm., Headlight

2410540

Unavailable

10

Bulb, Taillight

4011172

Unavailable

10

Asm., Headlight

2410540

Unavailable

10

Bulb, Taillight

4011172

Unavailable

11

Bracket w/Stud

5248553

Unavailable

11

Bracket w/Stud

5248553

Unavailable

12

Nut, Nylok, Flange

7542153

$1.59

12

Nut, Nylok, Flange

7542153

$1.59

13

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

13

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

13

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

13

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

14

Bolt

7517977

Unavailable

15

Bumper, Black

5432155-070

$142.86

16

Guard, Brush, Black

1013772-067

Unavailable

17

Rivet

7661855

$1.19

18

Shield, Radiator Side, LH

5433923

$32.37

18

Shield, Radiator Side, RH

5433924

$32.37

19

Extension, Frame, Black, LH

5244729-067

$90.74

19

Extension, Frame, Black, RH

5244730-067

$79.74
