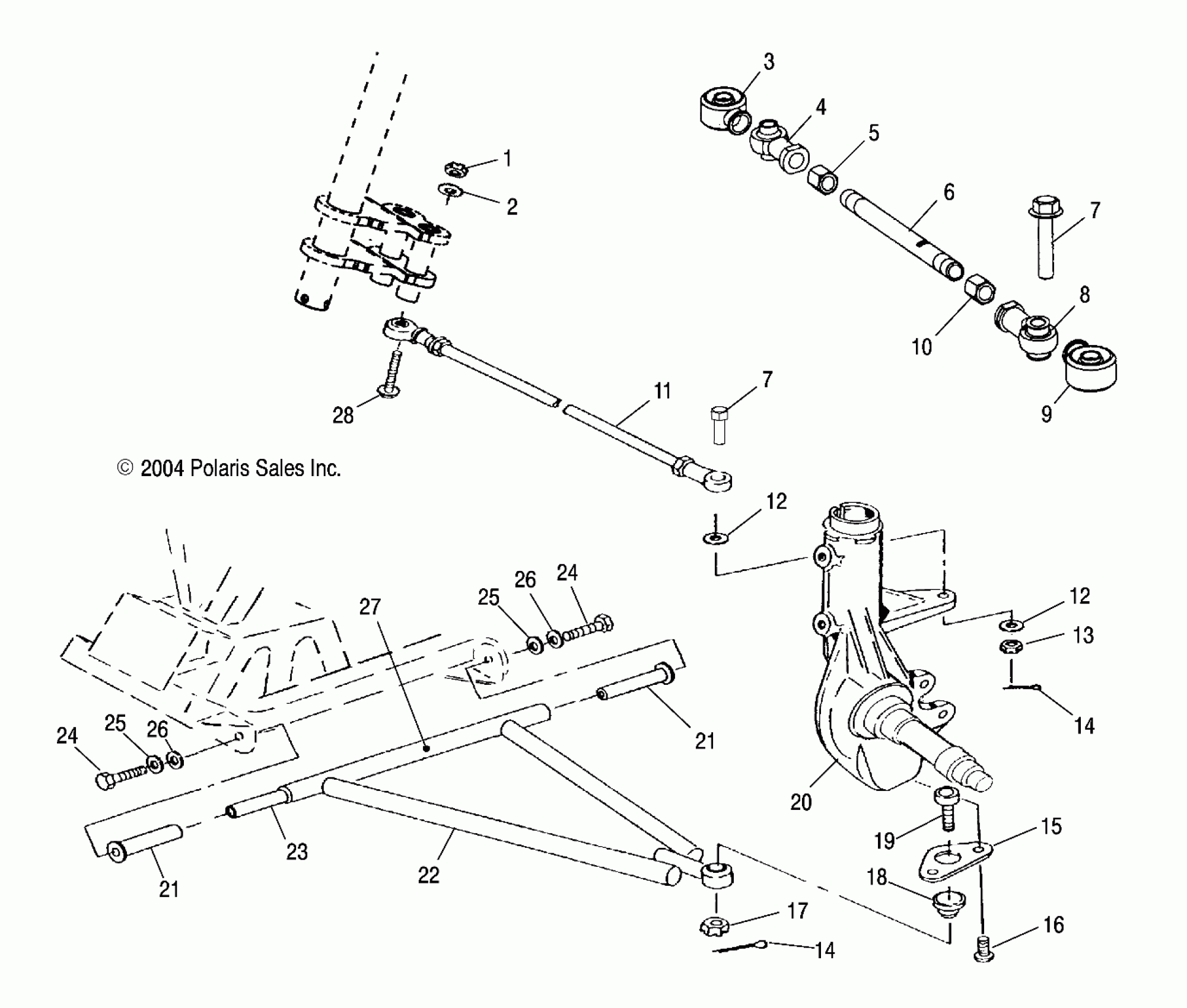

Polaris TRAIL BOSS 330 QUADRICYCLE - A05CA32EA A-ARM and STRUT MOUNTING - A05CA32EA (4999200489920048B11) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

2

Washer, Wrought

7558403

$4.79

3

Boot, Seal, Rod End

5411291

Unavailable

4

Rod End, RH

7061034

$54.04

5

Nut, Jam

7542711

$2.39

6

Tie Rod [If built after 1/01/05]

5134242

$39.99

6

Tie Rod [If built before 1/01/05]

5020927

$39.99

7

Bolt

7517909

$5.59

7

Bolt

7517909

$5.59

8

Rod End, LH

7061054

Unavailable

9

Boot, Seal, Rod End

5411920

Unavailable

10

Nut, Jam, LH

7547028

$2.39

11

Asm., Tie Rod [Incl. 3-8][If built after 1/01/05]

1821498

Unavailable

11

Asm., Tie Rod [Incl. 3-8][If built before 1/01/05]

1820806

Unavailable

12

Washer

7556099

$1.59

12

Washer

7556099

$1.59

13

Nut, Lock

7547177

$2.39

14

Pin, Cotter

7661203

$1.49

14

Pin, Cotter

7661203

$1.49

15

BRACKET-BALL JOINT

5211121

$31.99

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

18

Boot, Rubber

5410548

Unavailable

19

Joint, Ball

7080927

$76.89

20

SUPPORT, STRUT AND SPINDLE [SEE STRUT PG., REF. 16]

-------

Unavailable

21

Bushing, A-Arm, Long

5434551

$5.01

21

Bushing, A-Arm, Long

5434551

$5.01

22

Kit, A-Frame, LH [Incl. 21,24,26]

2202278

Unavailable

22

Kit, A-Frame, RH [Incl. 21,24,26]

2202279

Unavailable

23

Shaft, A-Arm

5133806

$30.79

24

Screw

7512492

$1.49

24

Screw

7512492

$1.49

25

Washer, Spring Lock

7552603

$1.49

25

Washer, Spring Lock

7552603

$1.49

26

WSHR-.813X.406X.105-Y

7555832

$2.39

26

WSHR-.813X.406X.105-Y

7555832

$2.39

27

Fitting, Lub

7080433

$1.49

28

Bolt

7518033

$34.99
