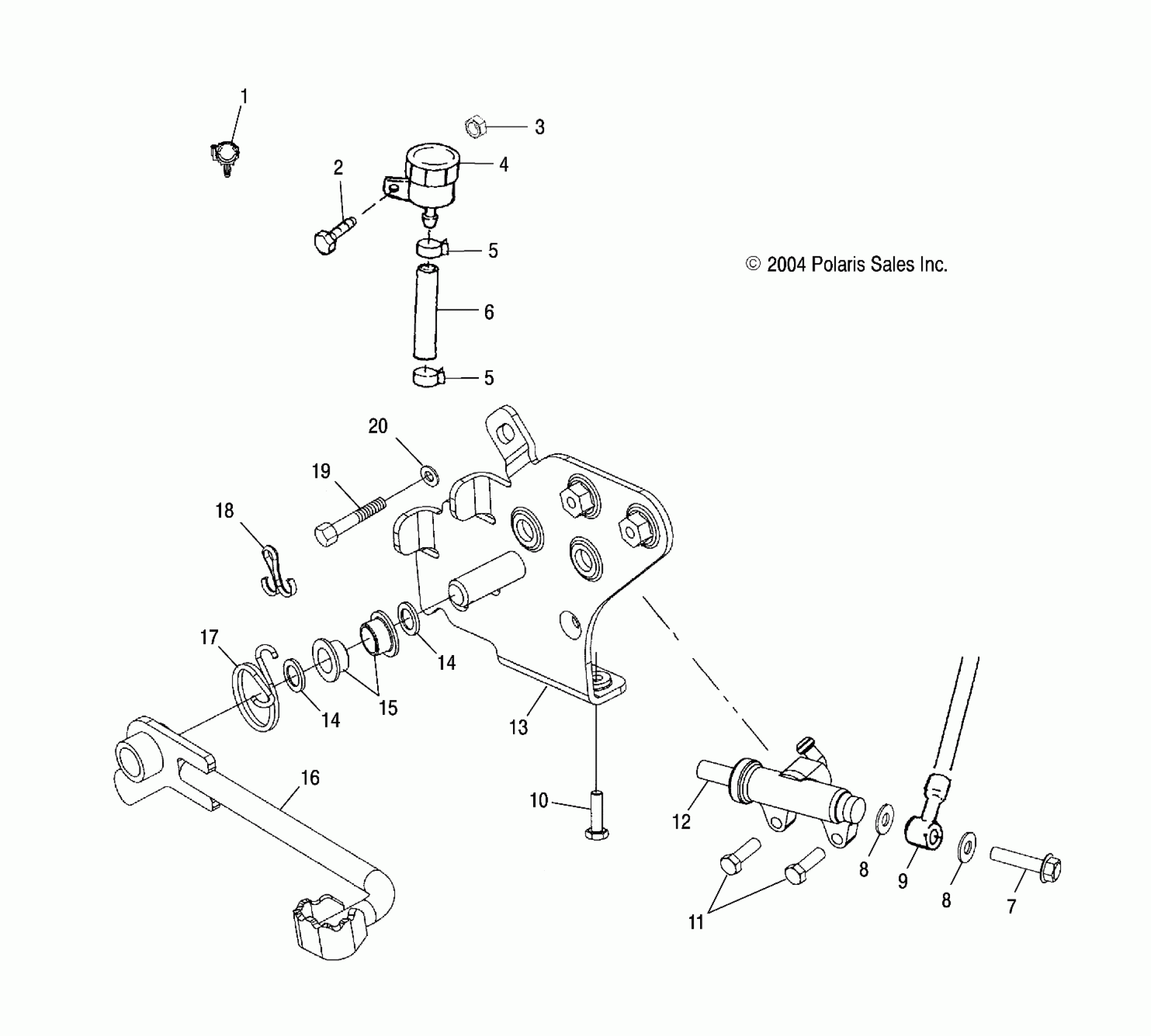

Polaris TRAIL BOSS 330 - A05CA32AA REAR BRAKE MASTER CYLINDER - A05CA32AA/AB/AC/FA (4994839483B03) Diagram

#

Description
Price

1

Clip

7670102

$2.39

2

SCREW

7512024

$4.79

3

Nut

7542153

$1.59

4

Reservoir

1930854

$35.99

5

HOSE CLAMP, RED

7080003

$1.49

5

HOSE CLAMP, RED

7080003

$1.49

6

Hose, Reservoir

1910812

$5.75

7

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

8

Seal

5410988

$4.84

8

Seal

5410988

$4.84

9

LINE, FOOT BRAKE, REAR [SEE REAR CALIPER MOUNTING PG. B2, REF. 9]

-------

Unavailable

10

Screw

7515158

$4.79

11

Screw

7515179

$2.39

12

Asm., Foot Brake Master Cylinder

1910791

$171.99

13

Mount, Brake

1910764-067

$20.63

14

WASHER

7555919

$4.99

14

WASHER

7555919

$4.99

15

BUSHING, PEDAL PIVOT

5433189

$3.99

16

Rod, Brake

1910767-067

$63.99

17

SPRING-TORSION,BRAKE

7041750

$8.79

18

PIN, COTTER

7661401

$1.49

19

SCREW

7512232

$1.49

20

Washer, Flat

7558301

$1.49
