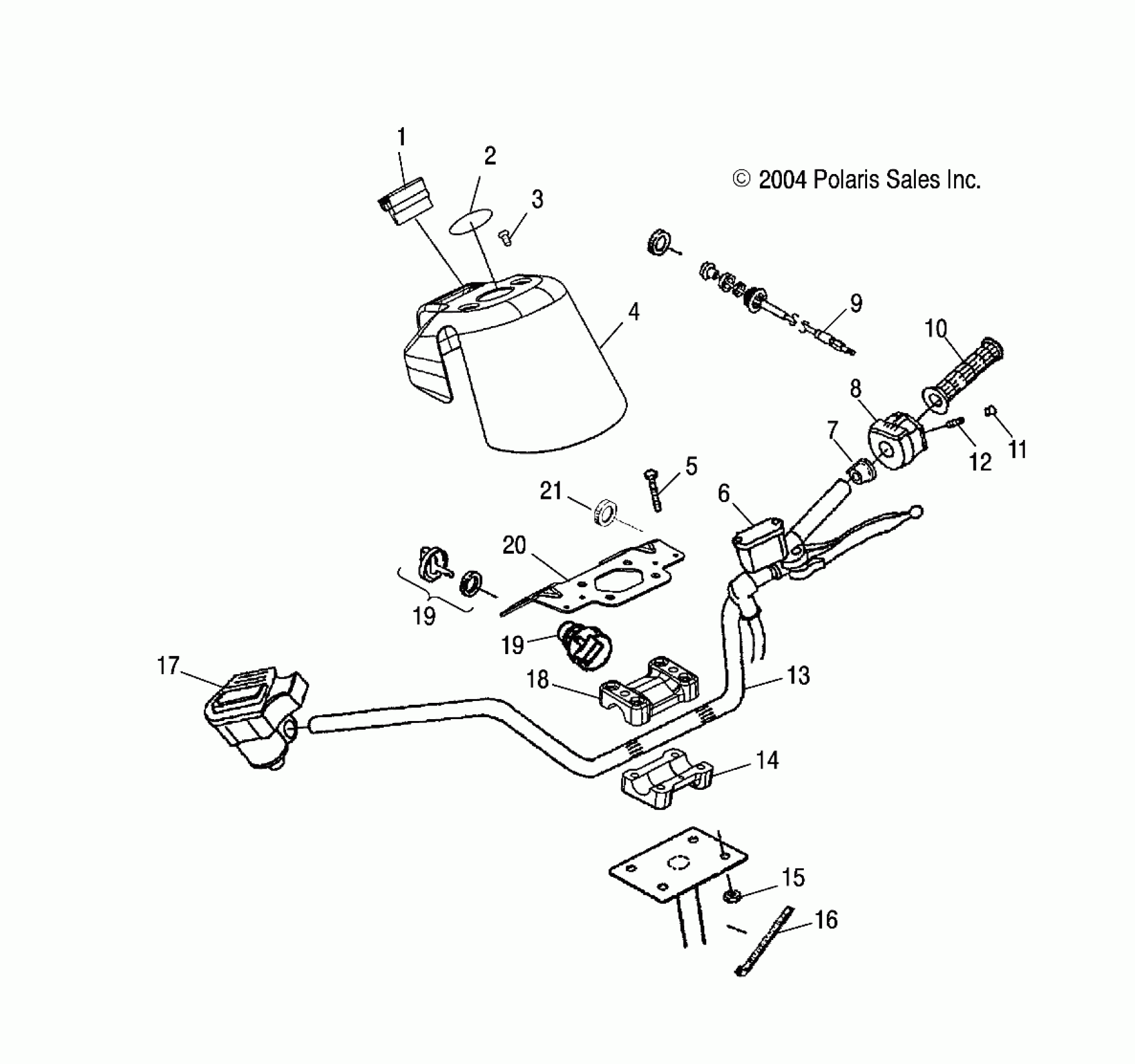

Polaris TRAIL BOSS 330 - A05CA32AA HANDLEBAR - A05CA32AA/AB/AC/FA (4994839483B08) Diagram

#

Description
Price

1

Panel Indicator Light

4010315

Unavailable

2

LOGO-POLARIS STAR

7078465

$12.13

3

SCREW

7518176

$4.76

4

Panel, Instrument

5434643-070

Unavailable

5

SCREW

7515189

$1.19

6

ASM., MASTER CYLINDER [SEE CONTROL - MASTER CYLINDER/BRAKE LINE PG. FOR DETAILS]

----

Unavailable

7

Spacer, Switch, LH

5433903

Unavailable

8

Switch, Handlebar, Hi/Lo/Off

4010592

$47.49

9

Cable, Choke

7081177

$44.51

10

Grip, Handlebar

5433834-070

$28.32

11

PLUG, HOLE

5432952

$6.46

12

Screw

7517625

$4.76

13

Tube, Handlebar

5334127-067

Unavailable

14

BLOCK, HANDLEBAR

5631973

$32.37

15

Nut, Nylok

7542122

$1.19

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

17

ASM., THROTTLE CONTROL [SEE THROTTLE CONTROLS/THROTTLE CABLE PG., REF. 5]

----

Unavailable

18

BLOCK, HANDLEBAR, PEGGED

5631972

$32.37

19

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

19

KEY SWITCH KEY COVER

5433534

$13.75

19

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

19

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

19

Switch, Key, 3 Position

4011002

$109.27

19

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

19

KEY SWITCH KEY COVER

5433534

$13.75

19

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

19

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

19

Switch, Key, 3 Position

4011002

$109.27

20

Bracket, Instrument Panel

5248182

$4.37

21

Nut, Choke Slide

7080922

$3.17
