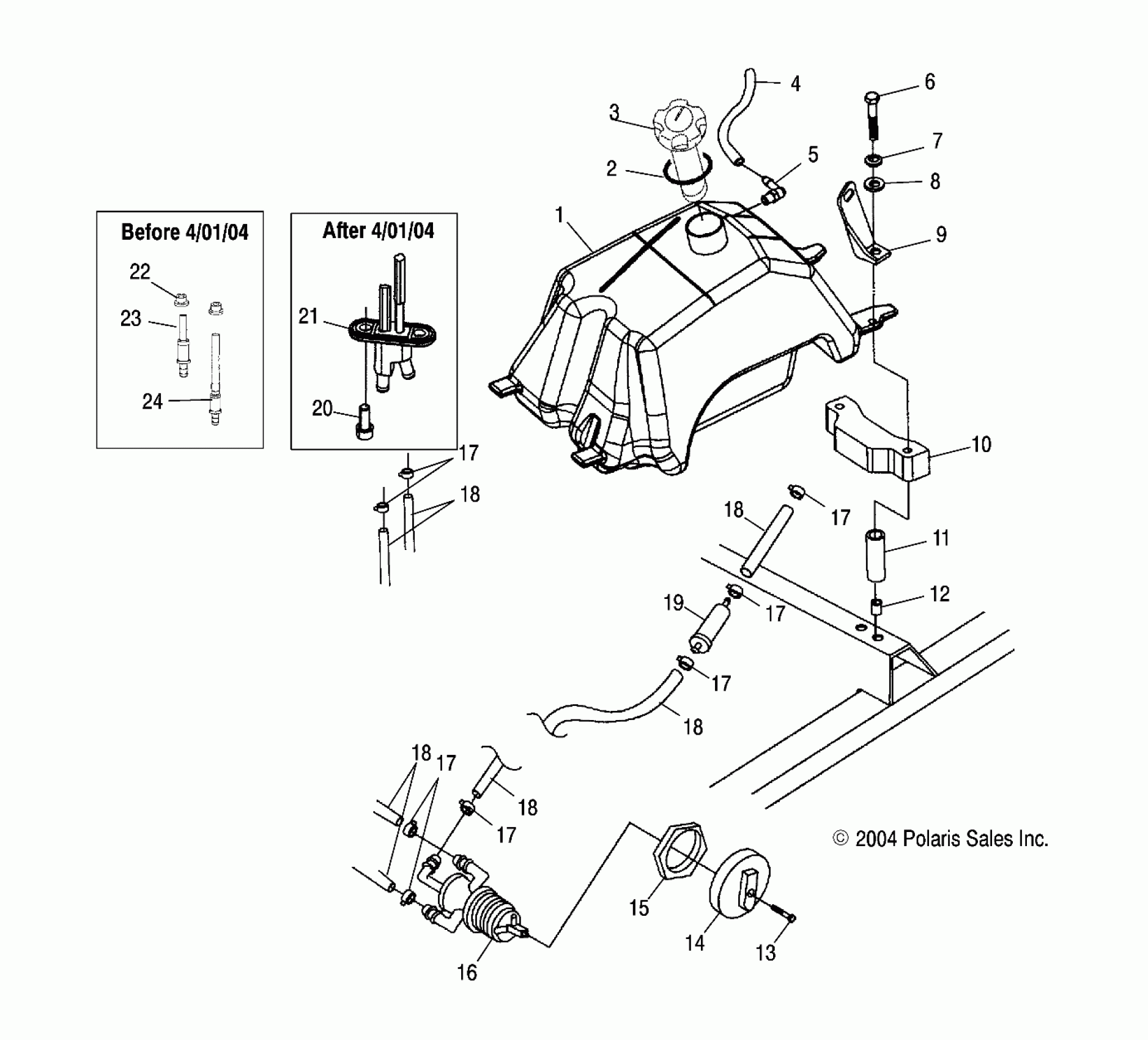

Polaris TRAIL BOSS 330 - A05CA32AA FUEL TANK - A05CA32AA/AB/AC/FA (4994839483A12) Diagram

#

Description
Price

1

Asm., Fuel Tank [Incl. 5,20,21][If built after 4/01/04]

2520409

Unavailable

1

Asm., Fuel Tank [Incl. 5,22,23][If built before 4/01/04]

2520362

Unavailable

2

GASKET

5812123

$5.65

3

Kit, Fuel Gauge

2873626

Unavailable

4

Hose, Vent

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Screw

7517451

$5.59

7

WASHER, SPRING LOCK

7552801

$1.59

8

Washer, Flat

7555859

$1.49

9

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

9

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

10

Seal, Foam

5811951

$32.37

11

Tube

5332457

Unavailable

12

Nutsert

7547069

$3.99

13

Screw

7517505

$1.59

14

Knob, Fuel Valve

5432559

$10.39

15

Nut, Fuel Valve

5432733

Unavailable

16

Valve, 3-Way

7052161

$39.99

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

18

Line, Fuel

8450040-600

Unavailable

18

Line, Fuel

8450040-600

Unavailable

18

Line, Fuel

8450040-600

Unavailable

18

Line, Fuel

8450040-600

Unavailable

18

Line, Fuel

8450040-600

Unavailable

19

Filter, Fuel

2530009

$5.65

20

Screw [If built after 4/01/04]

7515136

$1.49

21

Fitting, Fuel, Dual Outlet [If built after 4/01/04]

7052364

Unavailable

22

Grommet, Flanged [If built before 4/01/04]

7052362

$9.99

23

Fitting, Fuel Outlet, Reserve [If built before 4/01/04]

7052346

$27.99

24

Fitting, Main Outlet [If built before 4/01/04]

7052350

Unavailable
