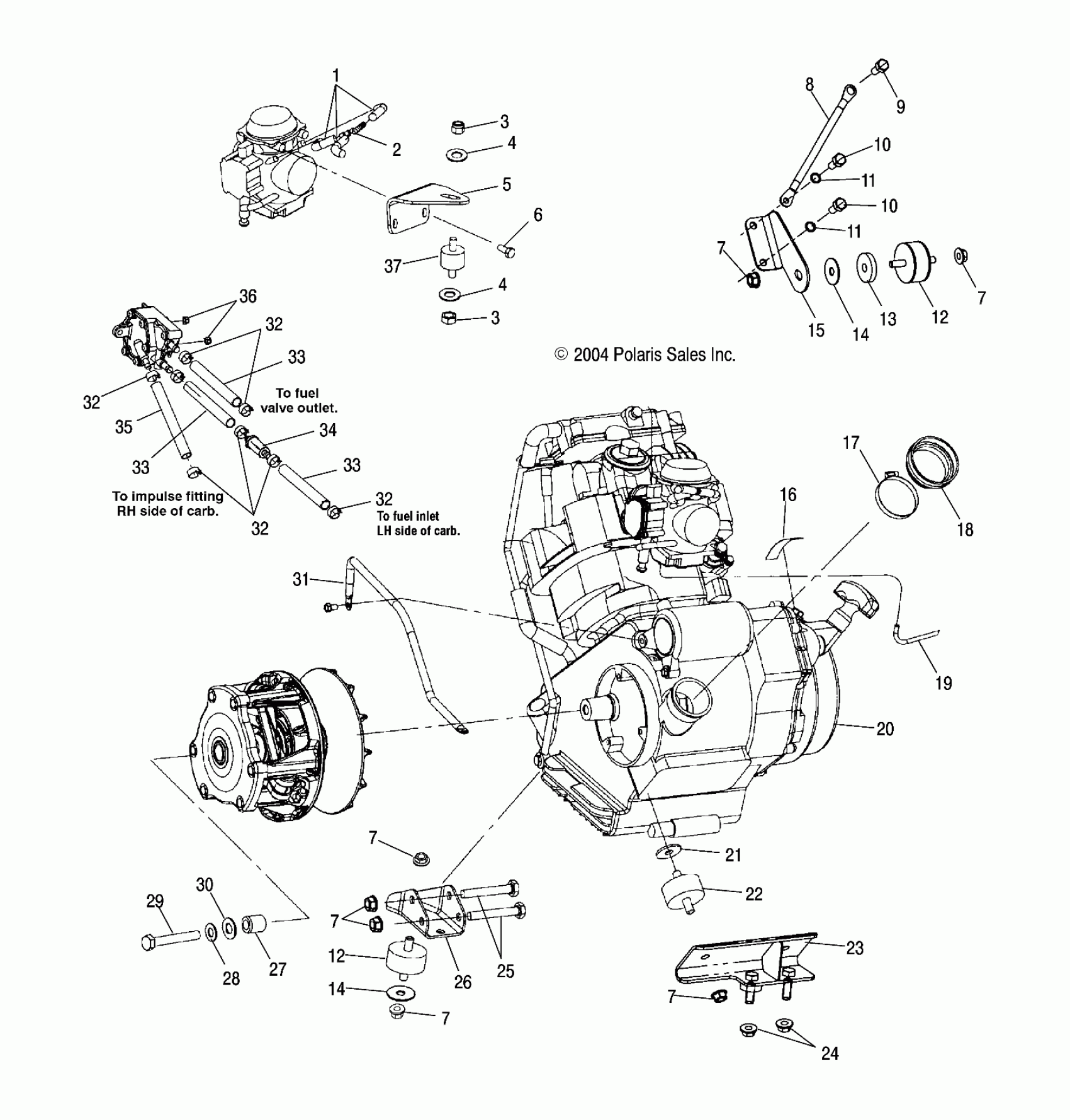

Polaris TRAIL BOSS 330 - A05CA32AA ENGINE MOUNTING - A05CA32AA/AB/AC/FA (4994839483A07) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.59

3

Nut, Nylok

7542122

$1.49

3

Nut, Nylok

7542122

$1.49

4

Washer, Flat

7558301

$1.49

4

Washer, Flat

7558301

$1.49

5

Bracket, Carburetor Mount

5247946

Unavailable

6

Screw and Washer

3084205

$3.99

7

NUT, FLANGE LOCK

7547108

$4.79

7

NUT, FLANGE LOCK

7547108

$4.79

7

NUT, FLANGE LOCK

7547108

$4.79

7

NUT, FLANGE LOCK

7547108

$4.79

7

NUT, FLANGE LOCK

7547108

$4.79

7

NUT, FLANGE LOCK

7547108

$4.79

8

Cable, Ground, Engine

4010132

Unavailable

9

SCREW

7512232

$1.49

10

BOLT

7512315

$4.79

10

BOLT

7512315

$4.79

11

WASHER, SPRING LOCK

7552901

$1.49

11

WASHER, SPRING LOCK

7552901

$1.49

12

Mount, Rubber

3021181

Unavailable

12

Mount, Rubber

3021181

Unavailable

13

Insulator, Motor Mount

5430802

$27.99

14

WASHER, FLAT

7555823

$3.99

14

WASHER, FLAT

7555823

$3.99

15

Bracket, Engine Mount, Top

5247344

Unavailable

16

Decal, Drain Recoil

7172562

Unavailable

17

Clamp

7080511

$4.79

18

Boot, Clutch Intake

5411721

Unavailable

19

Line, Fuel

8360009-100

Unavailable

20

Engine, ES320PFE103

1202789

Unavailable

21

Washer

7555815

$3.99

22

Mount, Rubber, Front

3110046

Unavailable

23

Mount, Engine, Rear

1013413-067

Unavailable

24

Nut, Flange Lock

7547089

$4.79

25

SCREW

7515417

$4.79

26

Mount, Lower Front

5247342

Unavailable

27

BUSHING-.437 X.770 X.50

5430261

$7.19

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

29

BOLT

7512566

$30.79

30

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

31

Cable, Battery/Engine

4010095

Unavailable

32

HOSE CLAMP, RED

7080003

$1.49

32

HOSE CLAMP, RED

7080003

$1.49

32

HOSE CLAMP, RED

7080003

$1.49

32

HOSE CLAMP, RED

7080003

$1.49

33

Line, Fuel

8450103-600

Unavailable

33

Line, Fuel

8450103-600

Unavailable

33

Line, Fuel

8450103-600

Unavailable

34

FILTER

2530009

$5.65

35

Line, Fuel

8450040-600

Unavailable

36

NUT-M5X.8,HX NYL-Y

7546601

$1.49

37

MOUNT, CARBURETOR

3110050

$12.99
