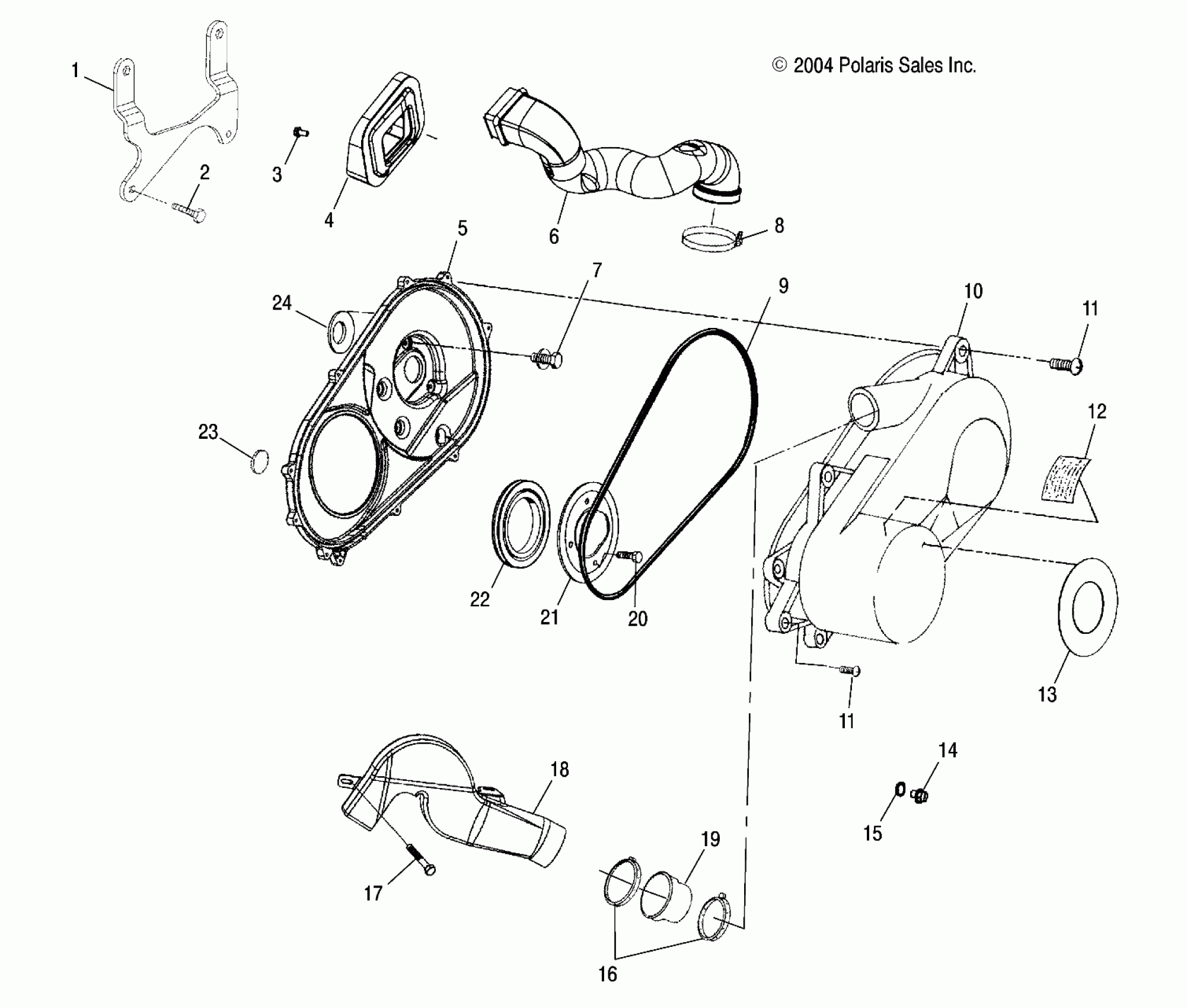

Polaris TRAIL BOSS 330 - A05CA32AA CLUTCH COVER - A05CA32AA/AB/AC/FA (4994839483B12) Diagram

#

Description
Price

1

Bracket, Clutch Cover

5247524-067

Unavailable

2

SCREW

7517386

$1.49

3

CLIP-PLASTIC DART, NYLON

7670088

$1.59

4

Foam, Clutch Air Inlet

2632513

$54.99

5

Kit, Clutch Cover, Inner

2202438

Unavailable

6

Duct, Inlet

5434401

Unavailable

7

Bolt and Washer

7510000

$3.99

8

CLAMP, NARROW BAND

7080909

$7.99

9

Seal, Clutch Cover

5521578

Unavailable

10

Asm., Clutch Cover, Outer

2633262

$169.87

11

SCREW

7512094

$1.59

11

SCREW

7512094

$1.59

12

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

13

DECAL, "AUTOMATIC TRANSMISSION"

7172746

Unavailable

14

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

15

O RING-.364X.504X.07

5410542

Unavailable

16

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

17

SCREW

7517386

$1.49

18

Duct, Air Outlet

5434213

Unavailable

19

Boot, Duct (If built after 11/15/04)

5412636

$23.99

19

Boot, Duct (If built before 11/15/04)

5411489

Unavailable

20

SCREW AND WASHER [SEE CRANKCASE PG. C6, REF. 8]

-------

Unavailable

21

Bracket, Clutch Seal

5242046

$35.99

22

Seal, Cover Case

5410575

Unavailable

23

Stopper, Inner Clutch Cover

5411795

Unavailable

24

Seal, Cover Case, Transmission

5410489

$13.59
