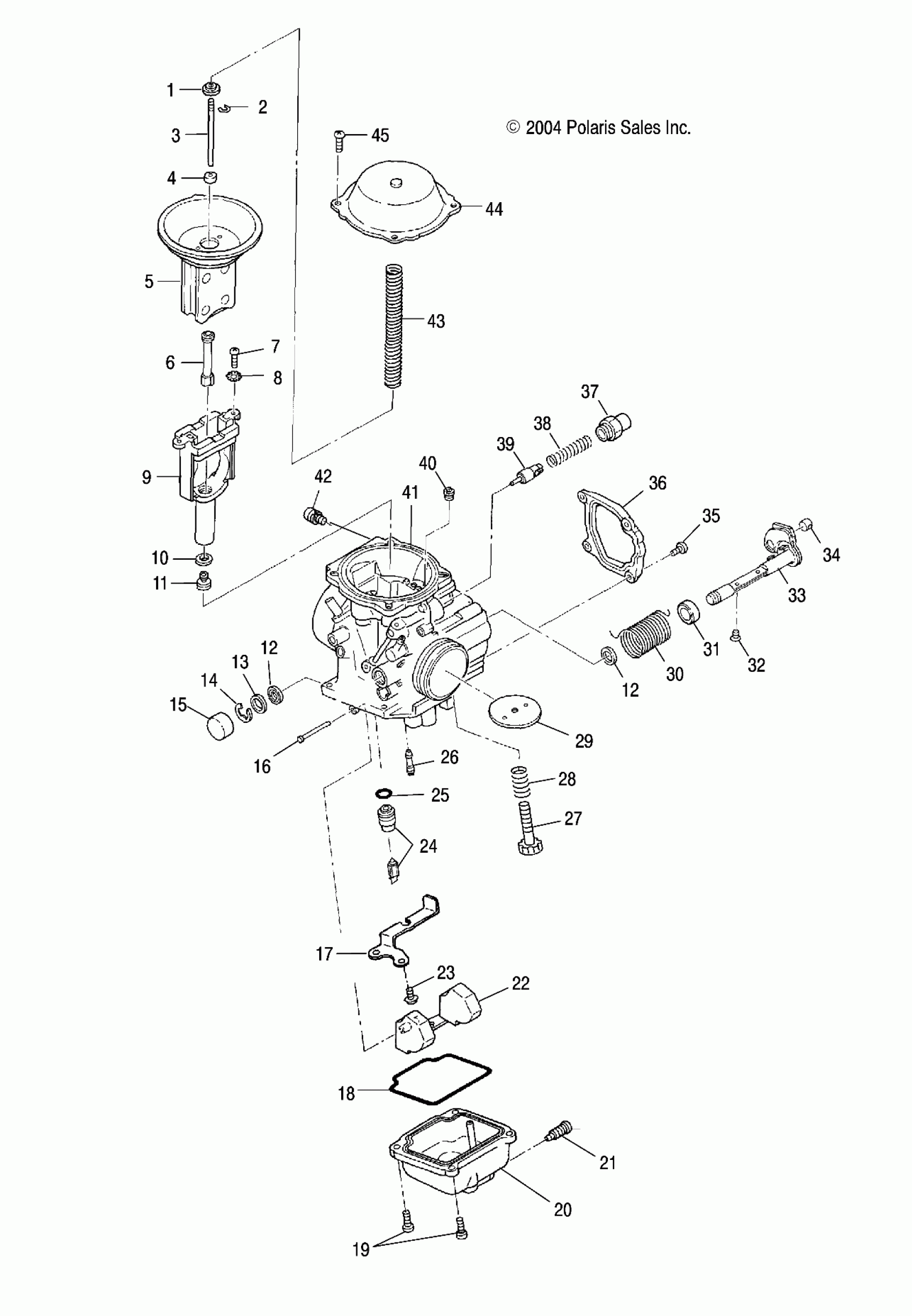

Polaris TRAIL BOSS 330 - A05CA32AA CARBURETOR - A05CA32AA/AB/AC/FA (4994839483C10) Diagram

#

Description
Price

1

RING

3130507

$5.59

2

E-RING

3130508

$6.46

3

Needle, Jet

3131554

$31.99

4

RING

3130752

$5.59

5

Asm., Diaphragm

3130732

$123.99

6

Jet, Needle

3131588

Unavailable

7

SCREW

3130541

$11.19

8

WASHER, SPRING

3130540

$4.79

9

Asm., Jet Block

3130504

$59.99

10

WASHER

3130014

$1.59

11

Jet, Main [#122.5]

3131458

$7.19

12

SEAL

3130515

$11.99

12

SEAL

3130515

$11.99

13

PACKING

-------

Unavailable

14

E-RING

3130518

$1.59

15

CAP

3130519

$10.39

16

PIN, FLOAT

3130361

$8.89

17

PLATE

3130594

$27.99

18

O-RING

3130532

$31.99

19

SCREW

3130520

$1.59

20

Asm., Float Body

3130590

$103.99

21

SCREW

3130521

$10.39

22

ASM., FLOAT

3130529

$79.99

23

SCREW

3130591

$3.99

24

Valve, Needle

3131360

$47.99

25

O-RING

3130533

$5.59

26

JET, PILOT, #42.5

3130526

$27.99

27

SCREW, ADJUST

3131423

$23.99

28

SPRING

3130836

$7.27

29

Valve, Throttle, 100

3130502

$47.99

30

SPRING

3130589

$23.99

31

Shaft

3130514

$7.19

32

SCREW

3130501

$3.99

33

Asm., Throttle Shaft

3130513

$79.99

34

GUIDE, CABLE

3130543

$27.99

35

SCREW

3130535

$7.19

36

COVER

3130511

$43.99

37

Cap, Plunger

3130199

$28.32

38

SPRING

3130538

$4.79

39

Asm., Plunger

3131228

$39.99

40

Jet, Air , Pilot, #160

3130625

$13.59

41

Asm., Carburetor [Incl. 1-33,37-45]

3131590

$526.49

42

Asm., Screw and Washer

3084205

$3.99

43

Spring

3131129

$27.99

44

ASM., COVER

3130503

$63.99

45

SCREW

3130924

$1.59
