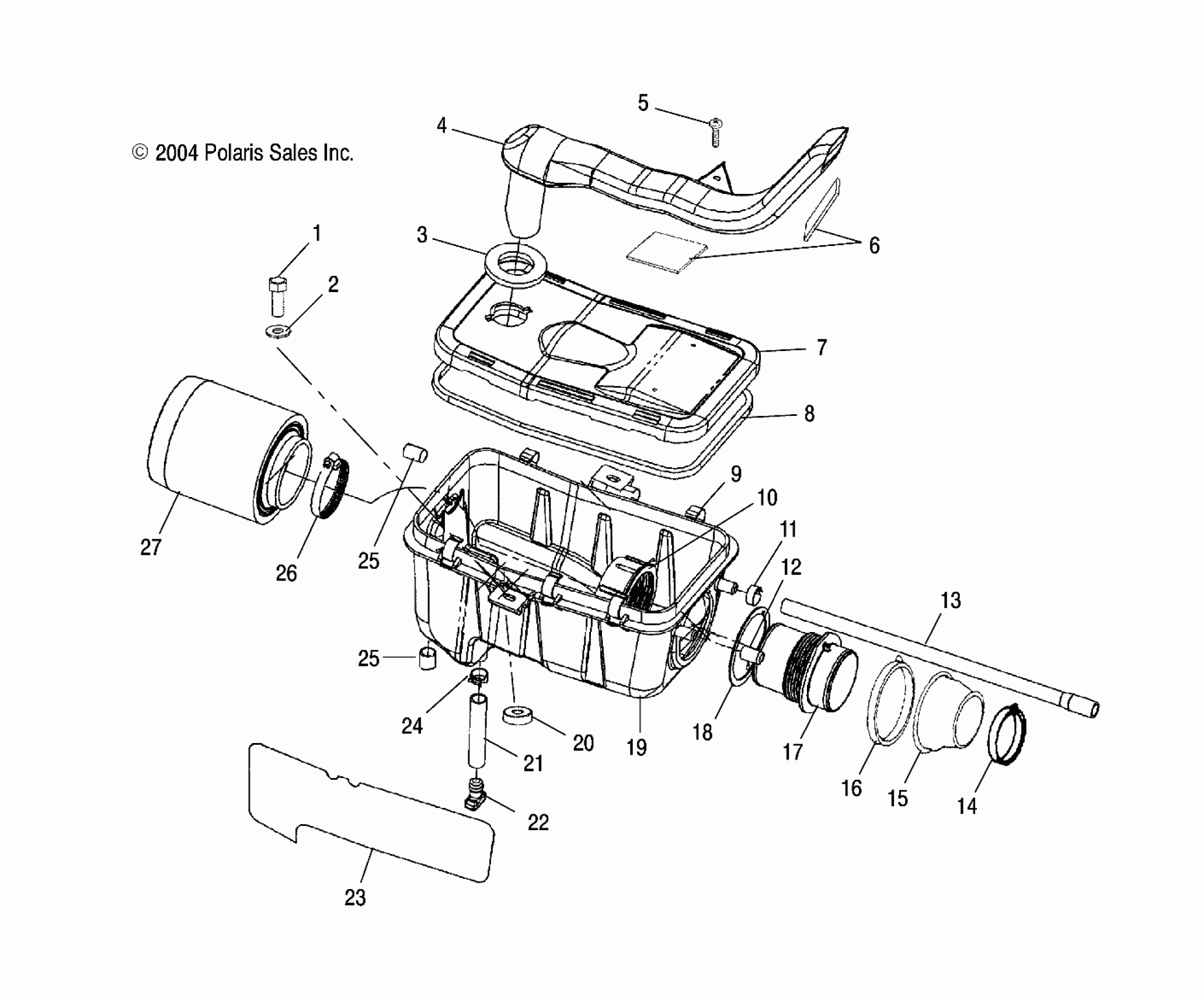

Polaris TRAIL BOSS 330 - A05CA32AA AIR BOX - A05CA32AA/AB/AC/FA (4994839483A11) Diagram

#

Description
Price

1

Screw

7515180

Unavailable

2

Washer, Flat

7558301

$1.49

3

Seal, Intake

5812023

$6.63

4

Duct, Inlet

5433767

$116.17

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

6

Pad, Fuel Tank Bracket

5810317

Unavailable

7

Cover, Air Box

5433769

$89.99

8

Seal, Air Box Cover

5811482

Unavailable

9

CLIP-AIR BOX

5242044

$9.59

10

Collar, Carb Inlet

5432601

$12.79

11

Clamp, Hose

7080699

$1.59

12

CAP, RUBBER

5412101

$5.59

13

Hose, Breather

5411866

$11.59

14

Clamp, Narrow Band

7080511

$4.79

15

Boot, Carburetor

5411588

Unavailable

16

Clamp, Narrow Band

7080413

$3.19

17

Duct, Carb Inlet

5433180

$32.37

18

Gasket, Carb Inlet

5830128

Unavailable

19

Box, Air Intake, 4 Stroke

5433919

Unavailable

20

Washer, Nylon

7555932

$2.39

21

Hose, Drain, Formed

5412111

$11.59

22

Plug, Trap [If built after 6/01/04]

5435299

$6.39

22

Plug, Trap [If built before 6/01/04]

5432377

Unavailable

23

Foil, Air Box, RH

5812111

Unavailable

24

Clamp, Hose

7080650

$3.99

25

Cap, Rubber

5412099

$4.03

25

Cap, Rubber

5412099

$4.03

26

Clamp, Narrow Band

7080413

$3.19

27

Asm., Filter

1253372

$27.99
