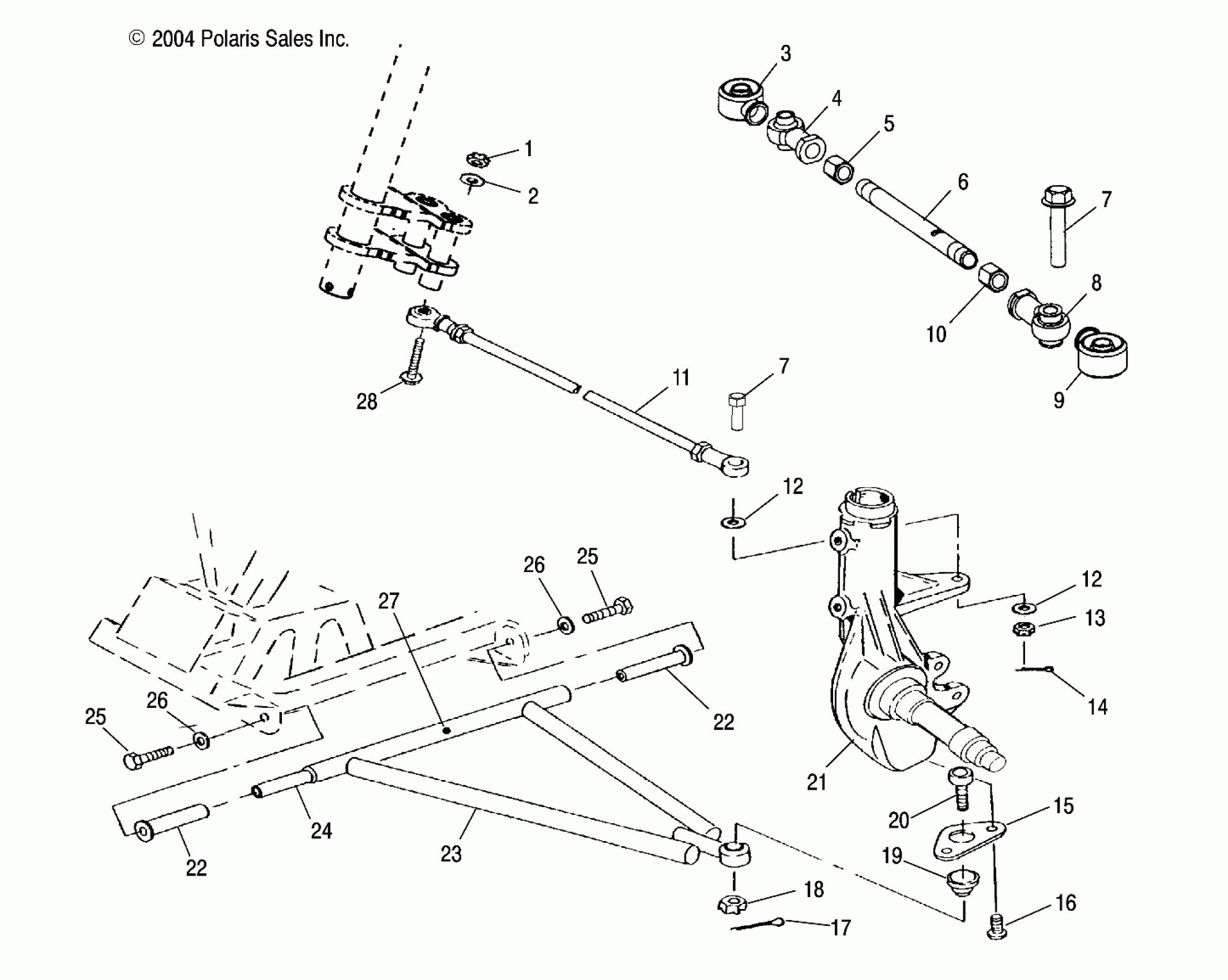

Polaris TRAIL BOSS 330 - A05CA32AA A-ARM/STRUT MOUNTING - A05CA32AA/AB/AC/FA (4994839483B07) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

2

Washer

7558403

$4.79

3

Boot, Seal, Rod End

5411291

Unavailable

4

Rod End, RH

7061034

$54.04

5

Nut

7542711

$2.39

6

Tie Rod

5020927

$39.99

7

Screw

7517909

$5.59

7

Screw

7517909

$5.59

8

Rod End, LH

7061054

Unavailable

9

Boot, Seal

5411920

Unavailable

10

Nut, Jam, LH

7547028

$2.39

11

Asm., Tie Rod [Incl. 3-8](If built after 1/05/05)

1821498

Unavailable

11

Asm., Tie Rod [Incl. 3-8](If built before 1/05/05)

1820806

Unavailable

12

Washer, Flat

7556099

$1.59

12

Washer, Flat

7556099

$1.59

13

Nut, Lock

7547177

$2.39

14

Pin, Cotter

7661407

$4.79

15

BRACKET-BALL JOINT

5211121

$31.99

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

Pin, Cotter

7661203

$1.49

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

Boot, Rubber

5410548

Unavailable

20

Joint, Ball

7080927

$76.89

21

SUPPORT, STRUT/SPINDLE [SEE STRUT PG., REF. 16]

-------

Unavailable

22

Bushing, A-Arm, Long

5434551

$5.01

22

Bushing, A-Arm, Long

5434551

$5.01

23

Kit, A-Frame, LH [Incl. 22,25,26]

2202278

Unavailable

23

Kit, A-Frame, RH [Incl. 22,25,26]

2202279

Unavailable

24

Shaft, A-Arm

5133806

$30.79

25

Screw [If built after 5/10/04]

7518364

$1.59

25

Screw [If built before 5/10/04]

7512492

$1.49

25

Screw [If built after 5/10/04]

7518364

$1.59

25

Screw [If built before 5/10/04]

7512492

$1.49

26

WSHR-.813X.406X.105-Y [If built before 5/10/04]

7555832

$2.39

26

WSHR-.813X.406X.105-Y [If built before 5/10/04]

7555832

$2.39

27

Fitting, Lub

7080433

$1.49

28

Screw

7518033

$34.99
